Ferrari 612 Scaglietti — Engine Compartment Firewall Insulation (diagram 108)

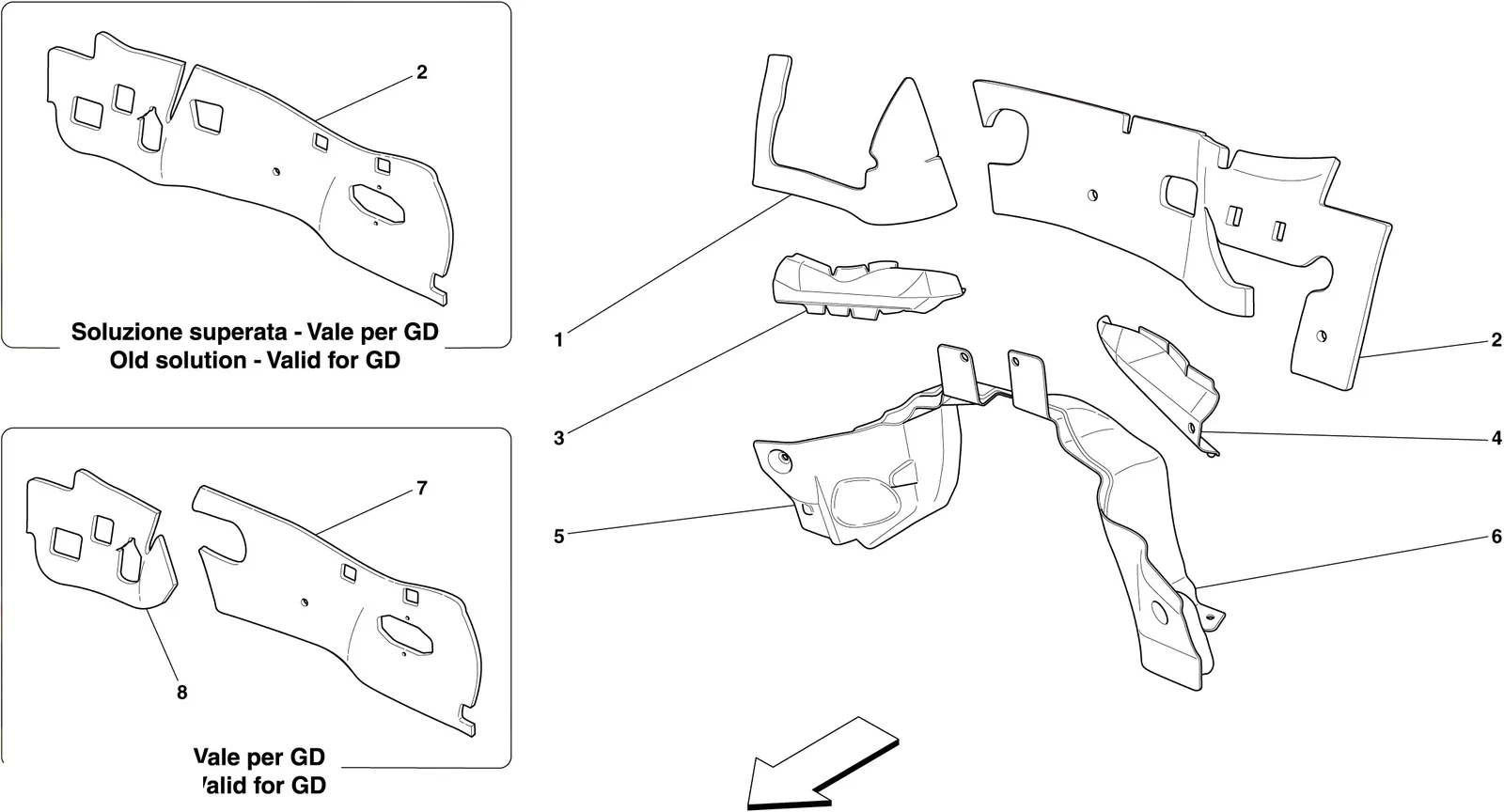

Exploded view of the engine compartment firewall insulation on the Ferrari 612 Scaglietti, with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 67789300 | Ferrari RH Upper Firewall Insulation LHD - 67789300 | Price on request | Contact us for price and availability |
| 1 | 67848000 | Ferrari LH Upper Firewall Insulation RHD - 67848000 | Price on request | Contact us for price and availability |
| 2 | 66963400 | Ferrari LH Upper Firewall Insulation LHD - 66963400 | Price on request | Contact us for price and availability |
| 2 | 67848100 | Ferrari RH Upper Firewall Insulation RHD - 67848100 | Price on request | Contact us for price and availability |
| 3 | 66963500 | Ferrari RH Heat Shield - 66963500 | $198.24 | Special order, ships in 7-14 days |
| 4 | 66963600 | Ferrari LH Heat Shield - 66963600 | $198.24 | Special order, ships in 7-14 days |
| 5 | 66963700 | Ferrari RH Firewall Heat Shield - 66963700 | $1,028.04 | Special order, ships in 7-14 days |
| 6 | 66963800 | Ferrari LH Firewall Heat Shield - 66963800 | $1,003.57 | Special order, ships in 7-14 days |
| 7 | 68312500 | Ferrari RH Upper Firewall Insulation RHD - 68312500 | $832.22 | Special order, ships in 7-14 days |
| 8 | 68312400 | Ferrari RH Upper Firewall Insulation - 68312400 | $832.22 | Special order, ships in 7-14 days |
