Ferrari 612 Sessanta — Passenger Compartment Insulation (diagram 109)

Exploded view of the passenger compartment insulation on the Ferrari 612 Sessanta, with 25 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

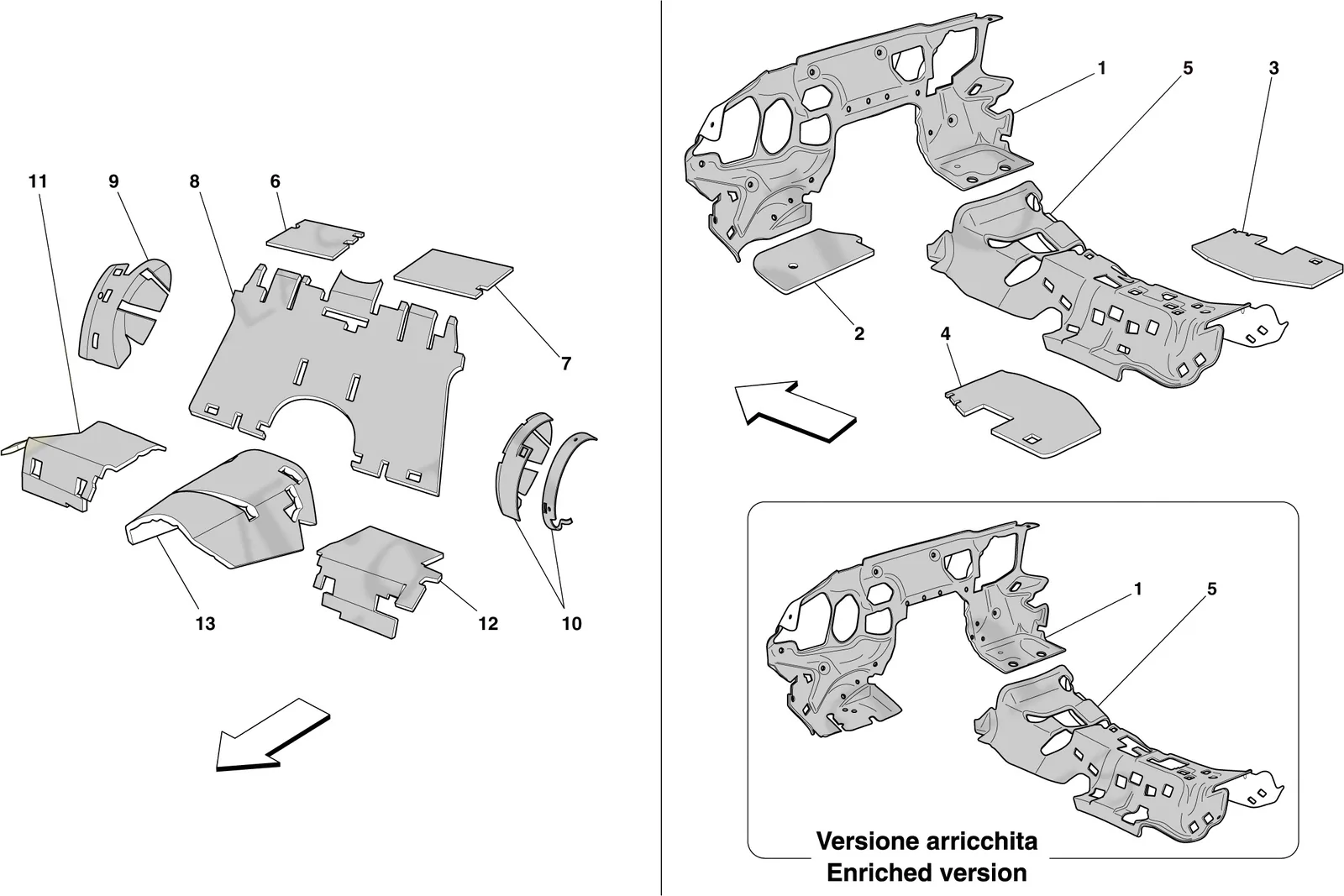

Ferrari 612 Sessanta Passenger Compartment Insulation exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
167155400Ferrari Firewall Insulation LHD - 67155400$758.79Special order, ships in 7-14 days
180014700Ferrari Firewall Insulation LHD - 80014700$881.17Special order, ships in 7-14 days
167847800Ferrari Firewall Insulation RHD - 67847800$979.09Special order, ships in 7-14 days
180206100Ferrari Firewall Insulation RHD - 80206100$758.79Special order, ships in 7-14 days
267794500Ferrari LH Front Floor Insulation LHD - 67794500$88.09Special order, ships in 7-14 days
268101000Ferrari LH Front Floor Insulation RHD - 68101000$88.09Special order, ships in 7-14 days
367156400Ferrari RH Rear Floor Insulation - 67156400Price on requestContact us for price and availability
368300300Ferrari RH Rear Floor Insulation - 68300300$318.19Special order, ships in 7-14 days
467156500Ferrari LH Rear Floor Insulation - 67156500$237.40Special order, ships in 7-14 days
567156600Ferrari Front Centre Tunnel Insulation - 67156600$660.87Special order, ships in 7-14 days
568309100Ferrari Front Centre Tunnel Insulation - 68309100$783.26Special order, ships in 7-14 days
569555200Ferrari Front Centre Tunnel Insulation - 69555200Price on requestContact us for price and availability
580014800Ferrari Front Centre Tunnel Insulation - 80014800$215.38Special order, ships in 7-14 days
580276200Ferrari Front Centre Tunnel Insulation - 80276200$110.13Special order, ships in 7-14 days
580276100Ferrari Front Centre Tunnel Insulation - 80276100$758.79Special order, ships in 7-14 days
667156800Ferrari RH Rear Screen Insulation - 67156800$36.69Special order, ships in 7-14 days
767156900Ferrari LH Rear Screen Insulation - 67156900$36.69Special order, ships in 7-14 days
867157000Ferrari Back Seat Insulation - 67157000$416.09Special order, ships in 7-14 days
967851800Ferrari RH Rear Wheelhouse Insulation - 67851800$100.34Special order, ships in 7-14 days
1067851900Ferrari LH Rear Wheelhouse Insulation - 67851900$100.34Special order, ships in 7-14 days
1167157100Ferrari RH Rear Seat Insulation - 67157100$367.14Special order, ships in 7-14 days
1267157200Ferrari LH Rear Seat Insulation - 67157200$367.14Special order, ships in 7-14 days
1367156700Ferrari Rear Tunnel Insulation - 67156700$293.71Special order, ships in 7-14 days
1380912000Ferrari Rear Tunnel Insulation - 80912000$1,493.12Special order, ships in 7-14 days
1369555400Ferrari Rear Tunnel Insulation - 69555400Price on requestContact us for price and availability

All 612 Sessanta diagrams
