Ferrari 812 Competizione — [ENGINE] - B.3 - ENGINE COVERS (diagram 0006)

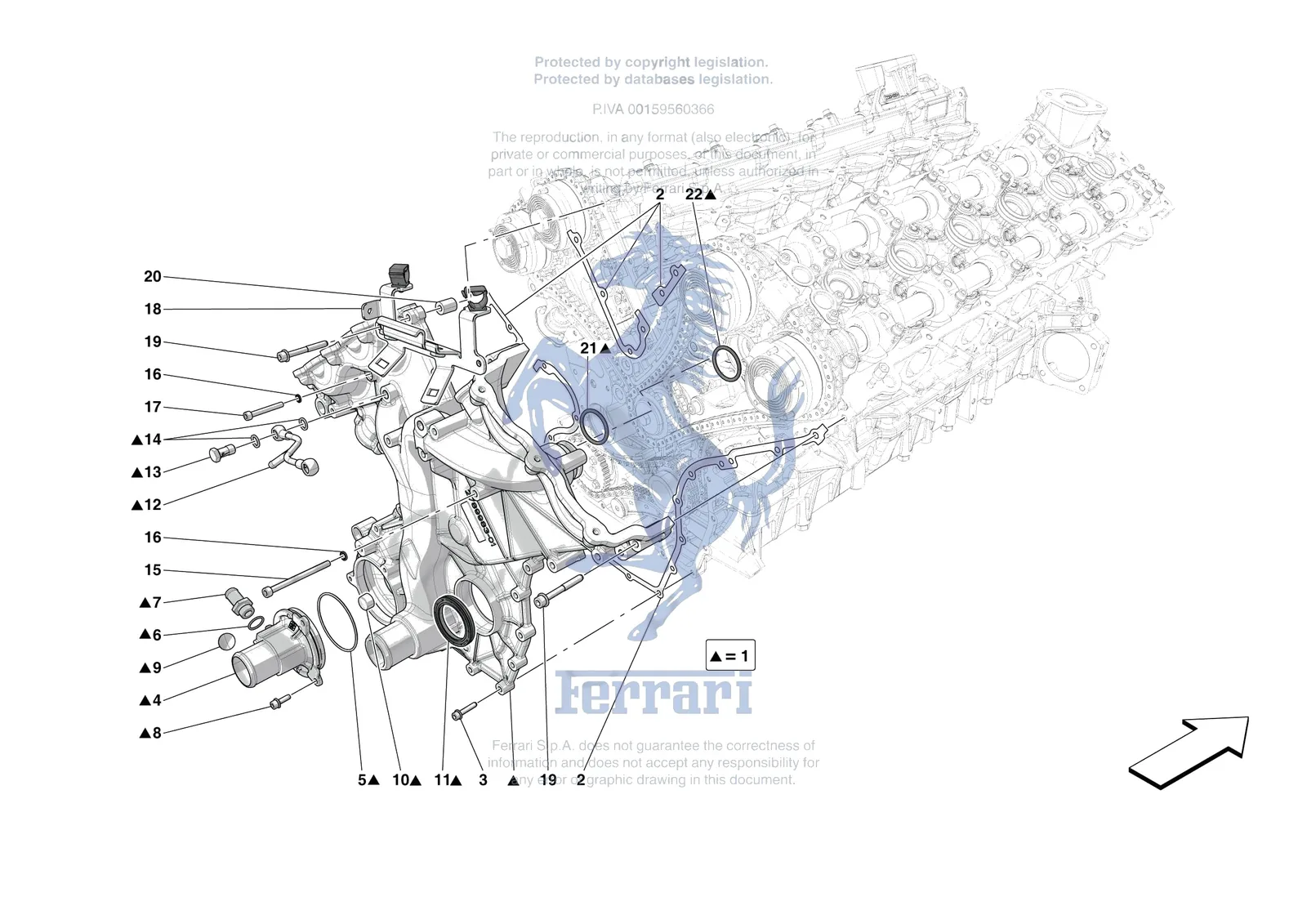

Exploded view of the [engine] - b.3 - engine covers on the Ferrari 812 Competizione, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [ENGINE] - B.3 - ENGINE COVERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0006.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 183447 | Ferrari Threaded Plug - 183447 | $18.48 | Available, ships in 3-6 days | |
| 1 | 789980 | Ferrari Rear Timing Cover - 789980 | $6,128.28 | Special order, ships in 7-14 days |
| 1 | 799627 | Ferrari Timing System Cover Compl. W - 799627 | Price on request | Contact us for price and availability |
| 1 | 895127 | Ferrari Timing System Cover Compl. W - 895127 | $6,376.49 | Special order, ships in 7-14 days |
| 1 | 989869 | Ferrari Timing System Cover Compl. W - 989869 | $6,322.65 | Special order, ships in 7-14 days |
| 2 | 316502 | Ferrari Front Cover Gasket - 316502 | $93.50 | In stock |
| 2 | 893579 | Ferrari Gasket Between Crankcase And - 893579 | $100.78 | Special order, ships in 7-14 days |
| 3 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 4 | 288787 | Ferrari Water Pump Cover - 288787 | $98.32 | Special order, ships in 7-14 days |
| 5 | 253797 | Ferrari O-Ring - 253797 | $6.98 | In stock |
| 6 | 11270550 | Ferrari O-Ring - 11270550 | $2.07 | Available, ships in 3-6 days |
| 7 | 253823 | Ferrari Connector - 253823 | $212.12 | Special order, ships in 7-14 days |
| 8 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 9 | 10159001 | Ferrari Cap - 10159001 | $0.92 | Available, ships in 3-6 days |
| 9 | 989260 | Ferrari Cap - 989260 | Superseded | Order 10159001 instead |
| 10 | 127635 | Ferrari Threaded Plug M18 x 11 x 1.5 - 127635 | $6.75 | Available, ships in 3-6 days |
| 11 | 210359 | Ferrari Front Crankshaft Seal - 210359 | $64.88 | In stock |
| 12 | 931307198 | Ferrari Compl. Water Drain Pipe - 931307198 | $467.15 | Special order, ships in 7-14 days |
| 13 | 211847 | Ferrari Pipe Union - 211847 | $327.81 | Special order, ships in 7-14 days |
| 14 | 10260960 | Ferrari Washer - 10260960 | $0.34 | Available, ships in 3-6 days |
| 15 | 10589624 | Ferrari Screw M6 x 80 TCEI - 10589624 | $0.59 | Available, ships in 3-6 days |
| 16 | 216292 | Ferrari Gasket - 216292 | $6.36 | Available, ships in 3-6 days |
| 17 | 14305924 | Ferrari Allen Screw 6x45 - 14305924 | $0.38 | Available, ships in 3-6 days |
| 17 | 231624 | Ferrari Allen Screw M6 x 45 - 231624 | Superseded | Order 14305924 instead |
| 18 | 833402 | Ferrari Compl. Mounting Bracket - 833402 | $120.46 | Special order, ships in 7-14 days |
| 18 | 911484 | Ferrari Compl. Mounting Bracket - 911484 | Superseded | Order 833402 instead |
| 18 | 948056 | Ferrari Compl. Mounting Bracket - 948056 | $122.92 | Special order, ships in 7-14 days |
| 19 | 231625 | Ferrari Screw 6x50 - 231625 | $1.25 | Available, ships in 3-6 days |
| 20 | 281356 | Ferrari Shim - 281356 | $6.10 | Special order, ships in 7-14 days |
| 21 | 289278 | Ferrari O-Ring - 289278 | $6.54 | Special order, ships in 7-14 days |
| 22 | 183010 | Ferrari/Maserati O-Ring - 183010 | $5.50 | In stock |
