Ferrari 812 Competizione — [ENGINE] - B.27 - ENGINE TEMPERATURE AND PRESSURE REGULATORS (diagram 0032)
Exploded view of the [engine] - b.27 - engine temperature and pressure regulators on the Ferrari 812 Competizione, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

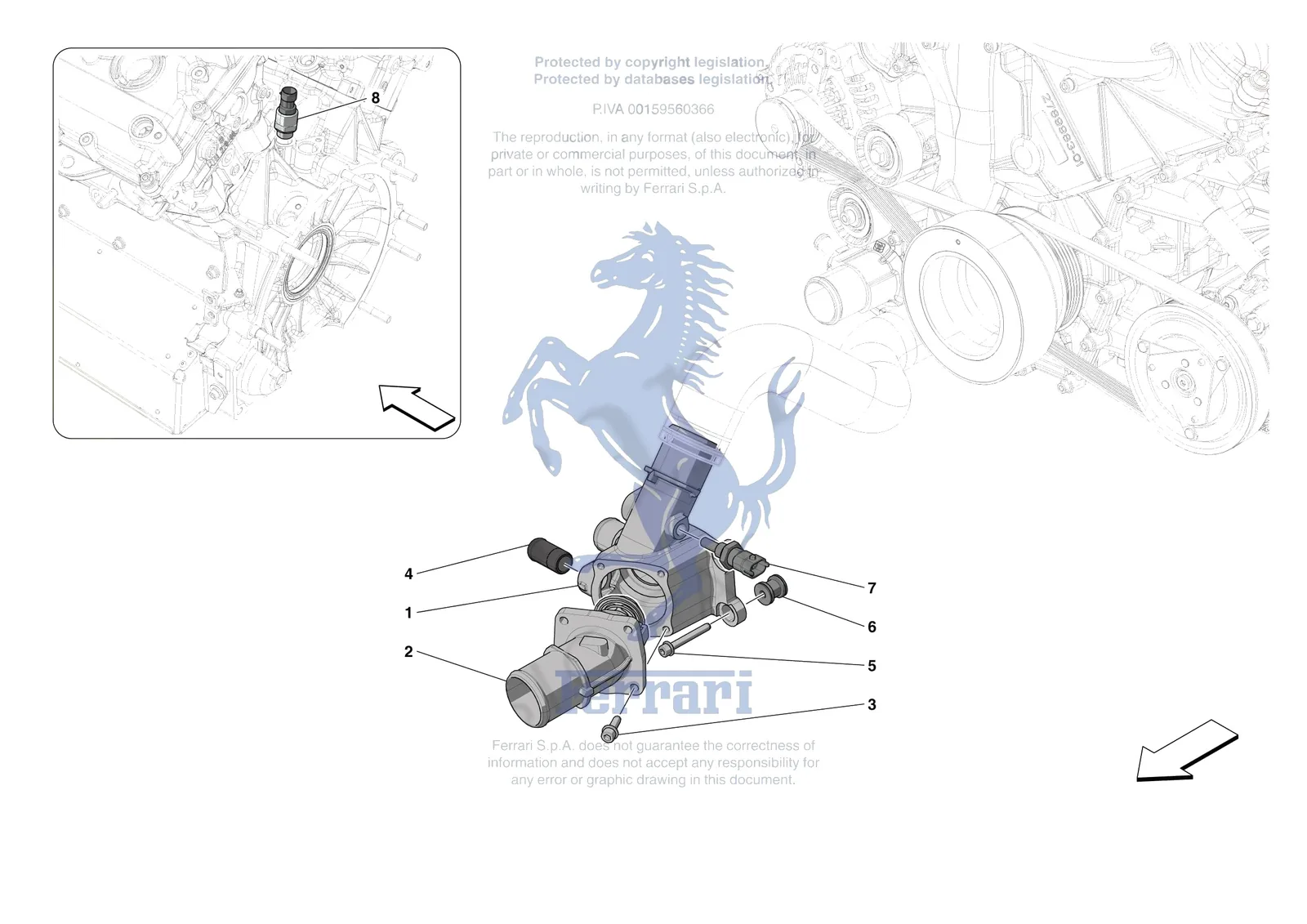

![Ferrari 812 Competizione [ENGINE] - B.27 - ENGINE TEMPERATURE AND PRESSURE REGULATORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0032.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 294902 | Ferrari Damped Mounting - 294902 | Superseded | Order 267300 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 1 | 267849 | Ferrari Thermostat Compartment - 267849 | Superseded | Order 55057228 instead |
| 1 | 55057228 | Ferrari Thermostat Compartment - 55057228 | $1,253.96 | Special order, ships in 7-14 days |
| 2 | 262913 | Ferrari Thermostat/Pressure Switch - 262913 | $371.08 | In stock |
| 3 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 3 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 4 | 228438 | Ferrari Connector - 228438 | $18.32 | Special order, ships in 7-14 days |
| 5 | 231623 | Ferrari Screw M6 x 40 TCEI - 231623 | $1.02 | Available, ships in 3-6 days |
| 6 | 267300 | Ferrari Mount Bushing - 267300 | $13.18 | In stock |
| 7 | 180137 | Ferrari/Maserati Water Temperature Sender / Sensor - 180137 | $25.19 | In stock |
| 8 | 304074 | Ferrari Oil Pressure Sending Unit - 304074 | $286.00 | In stock |
