Ferrari 812 Competizione — [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES (diagram 0044)

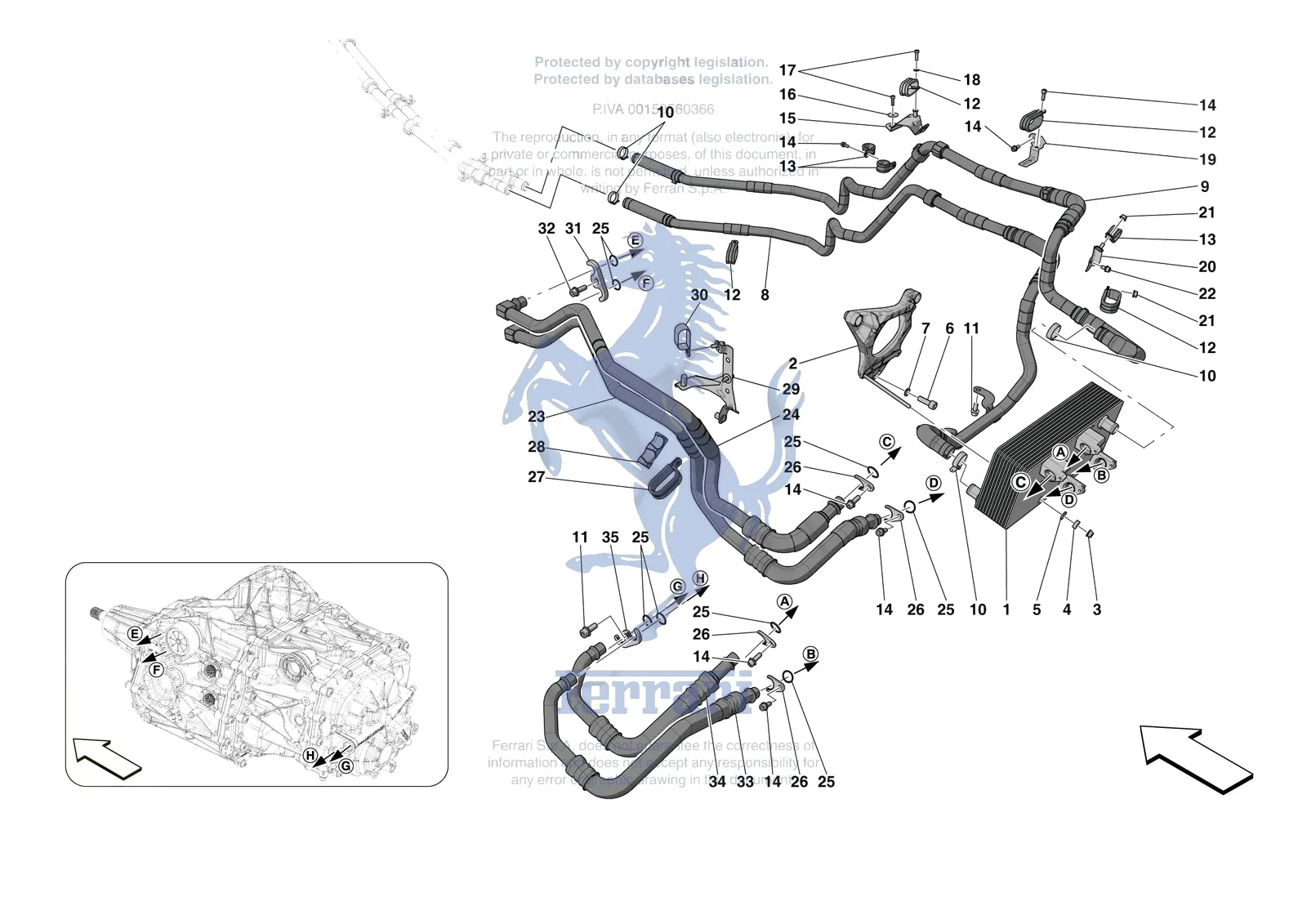

Exploded view of the [gearbox] - c.03.02 - gearbox oil heat exchanger and pipes - heat exchanger and rear pipes on the Ferrari 812 Competizione, with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 812 Competizione [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
262812Ferrari ATF Fluid Delivery Pipe - 262812$783.26Special order, ships in 7-14 days
311280Ferrari Clip - 311280SupersededOrder 248454 instead
262112Ferrari Collar - 262112SupersededOrder 262111 instead
291949Ferrari Collar - 291949SupersededOrder 248454 instead
262815Ferrari GL Oil Delivery Pipe - 262815$562.96Special order, ships in 7-14 days
262814Ferrari GL Oil Return Pipe - 262814$465.04Special order, ships in 7-14 days
262811Ferrari Oil Heat Exchanger - 262811SupersededOrder 326420 instead
266826Ferrari Oil Heat Exchanger - 266826SupersededOrder 326420 instead
278141Ferrari Rear Water Delivery Pipe - 278141SupersededOrder 290918 instead
278142Ferrari Rear Water Return Pipe - 278142SupersededOrder 290919 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
834367Ferrari Screw 8x25 - 834367SupersededOrder 231628 instead
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
10519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
125516Ferrari Washer - 125516SupersededOrder 10519424 instead
1326420Ferrari Oil Heat Exchanger - 326420$2,566.51Special order, ships in 7-14 days
2318265Ferrari Oil Heat Exchanger Mounting Frame - 318265$181.93Special order, ships in 7-14 days
314058421Ferrari Nut M6 x 6 - 14058421$2.38Available, ships in 3-6 days
413604015Ferrari Shim - 13604015$1.67Special order, ships in 7-14 days
512647624Ferrari Washer D 6.45-16x2 - 12647624$0.19Available, ships in 3-6 days
614307534Ferrari Screw M10 x 1.25 x 30 TCEI - 14307534$5.65Available, ships in 3-6 days
712648321Ferrari Washer - 12648321$1.49Special order, ships in 7-14 days
8290918Ferrari Rear Water Delivery Pipe - 290918$1,131.03Special order, ships in 7-14 days
9290919Ferrari Rear Water Return Pipe - 290919$811.38Special order, ships in 7-14 days
10262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
11248471Ferrari Screw 8x20 - 248471$2.07Available, ships in 3-6 days
12248454Ferrari Bracket With Sheath - 248454$15.49Special order, ships in 7-14 days
1310441990Ferrari P Clip Bracket With Sheath - 10441990$1.42Available, ships in 3-6 days
14231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
15291946Ferrari Bracket - 291946$36.86Special order, ships in 7-14 days
1612640604Ferrari Washer D.6 15-25X - 12640604$0.27Available, ships in 3-6 days
1713027224Ferrari Screw - 13027224$7.84Special order, ships in 7-14 days
1813550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
1810519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
19272486Ferrari Bracket - 272486$58.98Special order, ships in 7-14 days
20268359Ferrari Bracket Complete - 268359$29.48Special order, ships in 7-14 days
2114040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
22233600Ferrari/Maserati Screw - 233600$1.98In stock
23334873Ferrari Atf Fluid Delivery Pipe - 334873$688.45Special order, ships in 7-14 days
24262813Ferrari ATF Fluid Return Pipe - 262813$737.61Special order, ships in 7-14 days
25254644Ferrari O-Ring Gasket - 254644$0.77Available, ships in 3-6 days
26262827Ferrari Fork - 262827$31.93Special order, ships in 7-14 days
2761712500Ferrari P Clip Bracket - 61712500$2.29In stock
28264810Ferrari Shim - 264810$8.59Special order, ships in 7-14 days
29274638Ferrari Bracket - 274638$98.32Special order, ships in 7-14 days
30265771Ferrari Bracket - 265771$4.35Special order, ships in 7-14 days
31236479Ferrari Fork - 236479$41.76Special order, ships in 7-14 days
32231628Ferrari Screw 8x25 - 231628$1.15Special order, ships in 7-14 days
33334875Ferrari Gl Oil Delivery Pipe - 334875$417.97Special order, ships in 7-14 days
34334874Ferrari Gl Oil Return Pipe - 334874$393.38Special order, ships in 7-14 days
35261824Ferrari Fork - 261824$49.14Special order, ships in 7-14 days
