Ferrari 812 Competizione — [GEARBOX] - C.5 - CLUTCH HOUSING (diagram 0046)

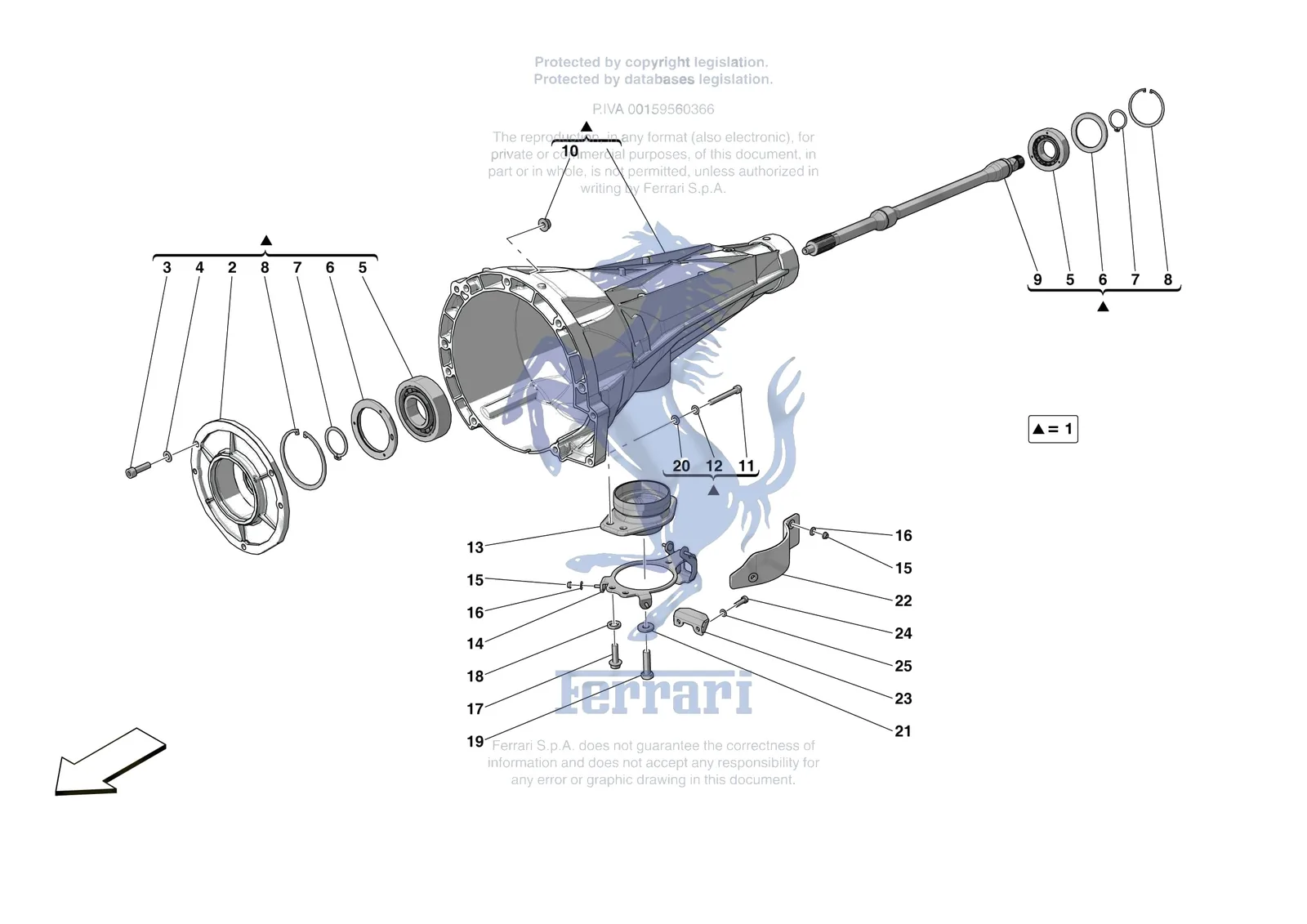

Exploded view of the [gearbox] - c.5 - clutch housing on the Ferrari 812 Competizione, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [GEARBOX] - C.5 - CLUTCH HOUSING exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0046.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 277470 | Ferrari Transmission Housing Complete - 277470 | $6,539.03 | Special order, ships in 7-14 days | |
| 10615670 | Ferrari Washer - 10615670 | Superseded | Order 12601374 instead | |
| 10615671 | Ferrari Washer - 10615671 | Superseded | Order 12601374 instead | |
| 10615674 | Ferrari Washer - 10615674 | Superseded | Order 12601374 instead | |
| 10615679 | Ferrari Washer - 10615679 | Superseded | Order 12601374 instead | |
| 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead | |
| 1 | 337965 | Ferrari Transmission Housing Complete - 337965 | $2,963.70 | Special order, ships in 7-14 days |
| 2 | 251921 | Ferrari Transmission Housing Flange - 251921 | $885.15 | Special order, ships in 7-14 days |
| 3 | 14306424 | Ferrari Screw M8 x 25mm - 14306424 | Superseded | Order 14306421 instead |
| 4 | 12638524 | Ferrari Flat Washer 8.15x15x1.5 - 12638524 | $0.12 | Available, ships in 3-6 days |
| 5 | 253629 | Ferrari Bearing Complete - 253629 | $908.37 | Special order, ships in 7-14 days |
| 6 | 253627 | Ferrari Containment Ring - 253627 | $393.38 | Special order, ships in 7-14 days |
| 7 | 11068874 | Ferrari Seeger Ring D.40 - 11068874 | $32.76 | Special order, ships in 7-14 days |
| 8 | 11062474 | Ferrari Snap Ring - 11062474 | $10.46 | Available, ships in 3-6 days |
| 9 | 324866 | Ferrari Transmission Housing Shaft - 324866 | $5,549.86 | Special order, ships in 7-14 days |
| 10 | 14059421 | Ferrari Flanged Nut 10x1.25 - 14059421 | $0.92 | Available, ships in 3-6 days |
| 11 | 14309024 | Ferrari Allen Screw 8x70 - 14309024 | $2.82 | Available, ships in 3-6 days |
| 12 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 13 | 247141 | Ferrari Rubber Bushing - 247141 | $319.62 | Available, ships in 3-6 days |
| 13 | 289309 | Ferrari Rubber Bushing - 289309 | Superseded | Order 247141 instead |
| 14 | 915290 | Ferrari Bush Travel Limiter Bracket - 915290 | $201.59 | Special order, ships in 7-14 days |
| 15 | 14059114 | Ferrari Nut M5 - 14059114 | $0.27 | Available, ships in 3-6 days |
| 16 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 17 | 18754324 | Ferrari Screw M10 x 1.25 x 32 - 18754324 | $3.03 | Available, ships in 3-6 days |
| 18 | 269664 | Ferrari Washer - 269664 | $8.49 | Available, ships in 3-6 days |
| 19 | 11599524 | Ferrari Screw - 11599524 | Superseded | Order 11599534 instead |
| 19 | 11599534 | Ferrari Screw - 11599534 | $3.91 | Available, ships in 3-6 days |
| 21 | 12648524 | Ferrari Washer - 12648524 | $1.09 | Available, ships in 3-6 days |
| 22 | 273666 | Ferrari Transmission Housing Bushing Shield - 273666 | $174.55 | Special order, ships in 7-14 days |
| 23 | 277524 | Ferrari Bracket - 277524 | $71.28 | Special order, ships in 7-14 days |
| 24 | 13028734 | Ferrari Allen Screw M8 x 25 - 13028734 | $0.92 | Available, ships in 3-6 days |
| 25 | 14499401 | Ferrari Washer - 14499401 | $0.54 | Available, ships in 3-6 days |
| 25 | 14499424 | Ferrari Washer - 14499424 | Superseded | Order 14499401 instead |
