Ferrari 812 Competizione — [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS (diagram 0051)

Exploded view of the [mechanical system] - d.04.01 - air filter air intake and ducts on the Ferrari 812 Competizione, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

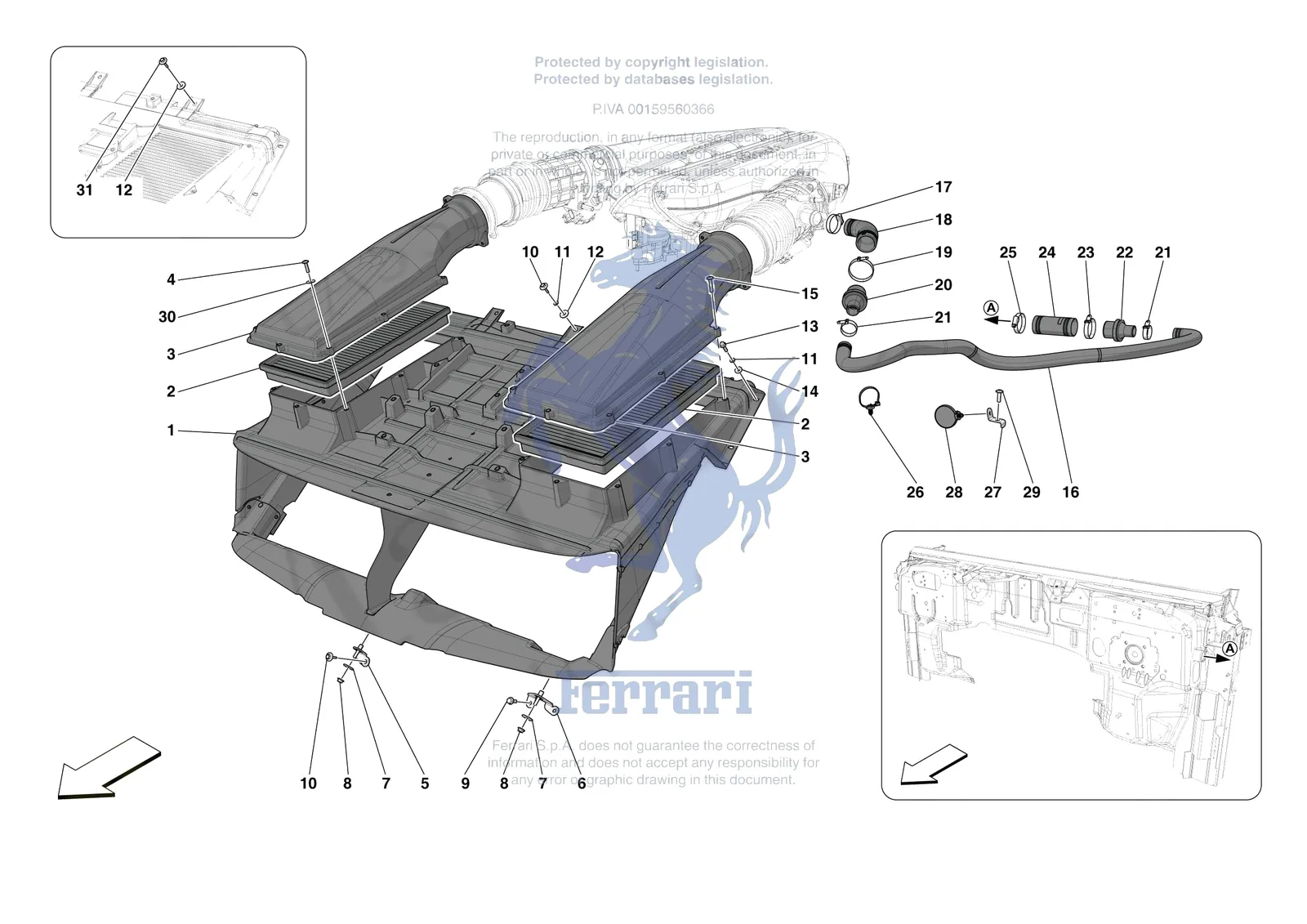

Ferrari 812 Competizione [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
291689Ferrari Air Filter - 291689SupersededOrder 812789 instead
842754Ferrari Air Filter Element - 842754SupersededOrder 812789 instead
262112Ferrari Collar - 262112SupersededOrder 262111 instead
968175Ferrari Pipe Mounting Bracket - 968175$12.99Special order, ships in 7-14 days
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1889842Ferrari Engine Air Duct - 889842$2,201.19Special order, ships in 7-14 days
2802766Ferrari Air Filter - 802766$327.81Available, ships in 3-6 days
2812789Ferrari Air Filter - 812789$298.98In stock
2916868Ferrari Air Filter - 916868SupersededOrder 802766 instead
2916869Ferrari Air Filter - 916869SupersededOrder 812789 instead
370007452Ferrari Air Filter Cover - 70007452$40,333.95Special order, ships in 7-14 days
3978912Ferrari Air Filter Cover - 978912$243.40Special order, ships in 7-14 days
3985988Ferrari Air Filter Cover - 985988$9,261.52Special order, ships in 7-14 days
485692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
5330024Ferrari Bracket - Air Conveyor Central - 330024$36.86Special order, ships in 7-14 days
6330023Ferrari Bracket - Air Conveyor - 330023$36.86Special order, ships in 7-14 days
761148700Ferrari WASHER - 61148700SupersededOrder 12643724 instead
712643724Ferrari/Maserati Washer - 12643724$0.20In stock
813046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
813046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
916281827Ferrari Screw 5x14 - 16281827$0.46Special order, ships in 7-14 days
1015699804Ferrari Screw 6X20 - 15699804$0.38Available, ships in 3-6 days
11166467Ferrari Wavy Washer D. 5 - 10 mm - 166467$1.80Available, ships in 3-6 days
1212643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
1316285227Ferrari Screw M5 x 20 - 16285227$0.59Available, ships in 3-6 days
1412638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
1585834000Ferrari Screw M5 x 25 - 85834000$0.71Special order, ships in 7-14 days
16888692Ferrari LH Coiled Pipe - 888692$196.67Special order, ships in 7-14 days
16858206Ferrari RH Coiled Pipe - 858206$206.52Special order, ships in 7-14 days
17296780Ferrari Hose Clamp 25 to 40mm - 296780$17.02Special order, ships in 7-14 days
18811761Ferrari LH Pipe - 811761$100.78Special order, ships in 7-14 days
18811916Ferrari RH Pipe - 811916$100.78Special order, ships in 7-14 days
19262116Ferrari Collar - 262116$6.10Available, ships in 3-6 days
20792080Ferrari Membrane Holder Pipe - 792080$152.41Special order, ships in 7-14 days
21262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
22791963Ferrari Compl. Membrane Holder Pipe - 791963$142.58Special order, ships in 7-14 days
23262114Ferrari Collar - 262114$2.38Available, ships in 3-6 days
24914071Ferrari Pipe - 914071$223.73Special order, ships in 7-14 days
25296781Ferrari Hose Clamp - 296781$5.59In stock
26303339Ferrari Long Shank Clip - 303339$0.59Special order, ships in 7-14 days
27809005Ferrari Pipe Mounting Bracket - 809005$12.77Special order, ships in 7-14 days
28217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
2985629300Ferrari Screw M6 x 20 - 85629300$1.17Available, ships in 3-6 days
3086321000Ferrari Washer - 86321000$12.00Special order, ships in 7-14 days
31256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days

All 812 Competizione diagrams
