Ferrari 812 Competizione — [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR (diagram 0057)

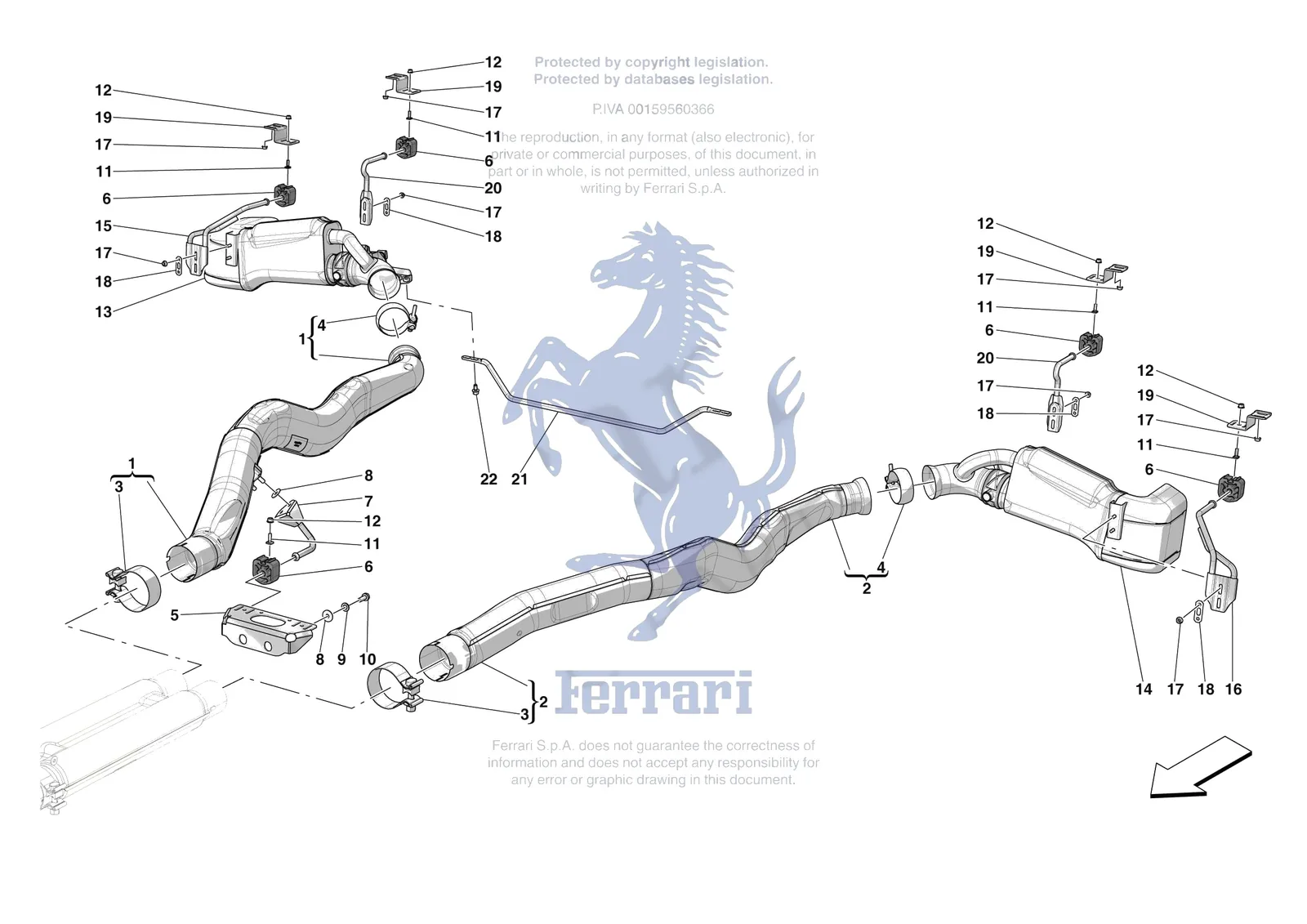

Exploded view of the [mechanical system] - d.08.02 - exhaust system - rear on the Ferrari 812 Competizione, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0057.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13578311 | Ferrari Washer - 13578311 | Superseded | Order 13578324 instead | |
| 1 | 331671 | Ferrari RH Rear Extension - 331671 | $1,852.54 | Special order, ships in 7-14 days |
| 2 | 331672 | Ferrari LH Rear Extension - 331672 | $1,852.54 | Special order, ships in 7-14 days |
| 3 | 282998 | Ferrari Ring Clamp - 282998 | $36.08 | Special order, ships in 7-14 days |
| 4 | 270454 | Ferrari Clamp D.70mm - 270454 | $28.39 | Available, ships in 3-6 days |
| 5 | 272447 | Ferrari Extension Mounting Bracket - 272447 | $103.25 | Special order, ships in 7-14 days |
| 6 | 289529 | Ferrari Rubber Exhaust Mount - 289529 | $74.30 | Available, ships in 3-6 days |
| 7 | 278733 | Ferrari LH Removable Bracket - 278733 | $98.32 | Special order, ships in 7-14 days |
| 7 | 278732 | Ferrari RH Removable Bracket - 278732 | $98.32 | Special order, ships in 7-14 days |
| 8 | 13578324 | Ferrari Washer 8.15-24x 2 - 13578324 | $0.44 | Available, ships in 3-6 days |
| 9 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 10 | 16043524 | Ferrari Screw 8x22 - 16043524 | $0.19 | Available, ships in 3-6 days |
| 11 | 250222 | Ferrari Screw Squared Head 6x18.5 - 250222 | $5.44 | Special order, ships in 7-14 days |
| 12 | 14058421 | Ferrari Nut M6 x 6 - 14058421 | $2.38 | Available, ships in 3-6 days |
| 13 | 920503 | Ferrari Compl. RH Silencer - 920503 | $7,868.19 | Special order, ships in 7-14 days |
| 13 | 956081 | Ferrari COMPL. RH SILENCER - 956081 | Price on request | Contact us for price and availability |
| 14 | 920505 | Ferrari Compl. LH Silencer - 920505 | $7,868.19 | Special order, ships in 7-14 days |
| 14 | 956080 | Ferrari COMPL. LH SILENCER - 956080 | Price on request | Contact us for price and availability |
| 15 | 893741 | Ferrari RH Outer Silencer Bracket - 893741 | $368.79 | Special order, ships in 7-14 days |
| 16 | 893742 | Ferrari LH Outer Silencer Bracket - 893742 | $368.79 | Special order, ships in 7-14 days |
| 17 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 18 | 321116 | Ferrari Plate - 321116 | $9.07 | Special order, ships in 7-14 days |
| 19 | 911473 | Ferrari Upper Silencer Bracket - 911473 | $68.83 | Special order, ships in 7-14 days |
| 20 | 776639 | Ferrari Inner Silencer Bracket - 776639 | $142.58 | Special order, ships in 7-14 days |
| 21 | 283513 | Ferrari Silencer Crosspiece - 283513 | $162.25 | Special order, ships in 7-14 days |
| 22 | 231627 | Ferrari Screw M8 x 16 - 231627 | $1.25 | Available, ships in 3-6 days |
