Ferrari 812 Competizione — [MECHANICAL SYSTEM] - D.20 - PEDAL BOARD (diagram 0069)

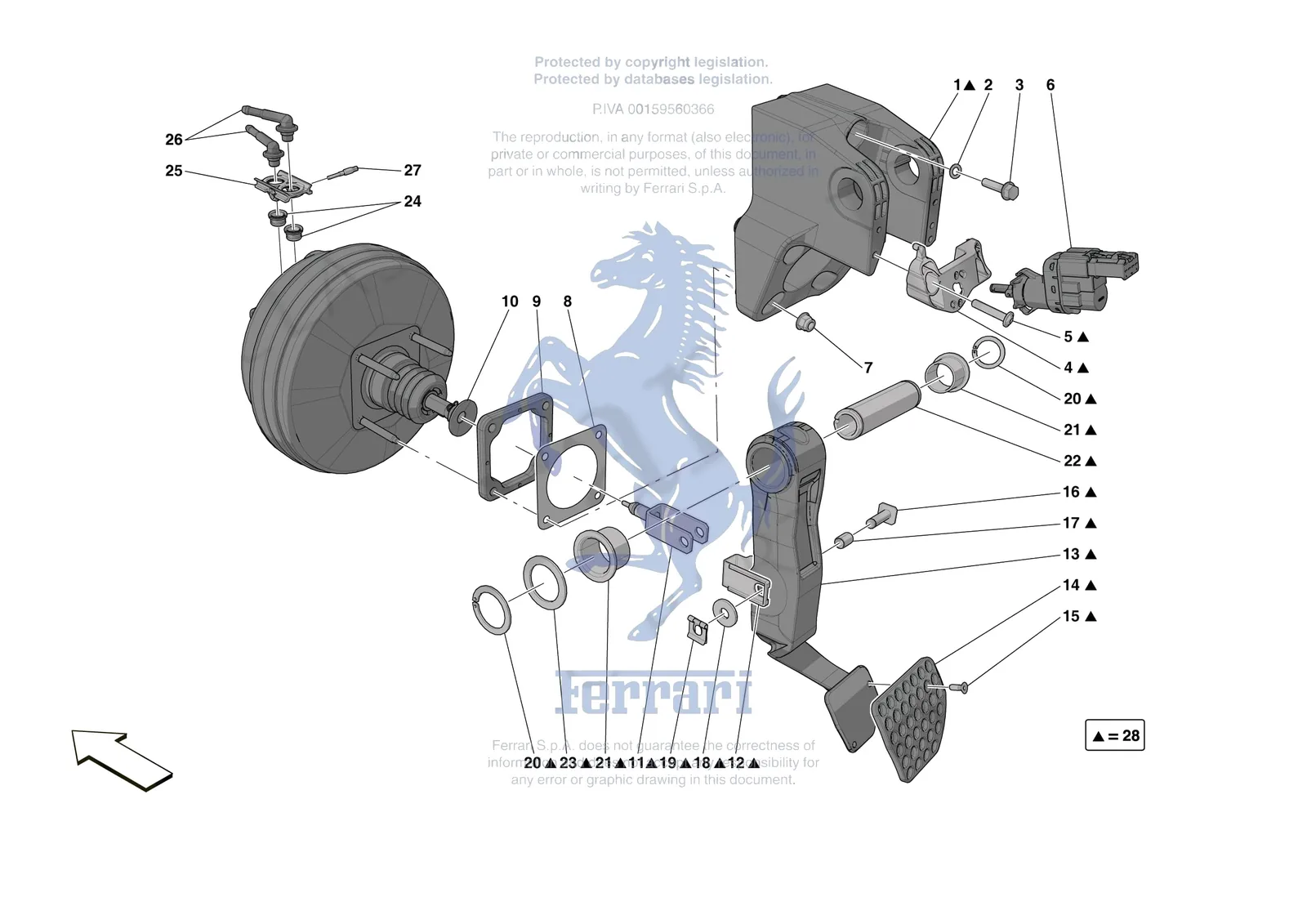

Exploded view of the [mechanical system] - d.20 - pedal board on the Ferrari 812 Competizione, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [MECHANICAL SYSTEM] - D.20 - PEDAL BOARD exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0069.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10615670 | Ferrari Washer - 10615670 | Superseded | Order 12601374 instead | |
| 10615671 | Ferrari Washer - 10615671 | Superseded | Order 12601374 instead | |
| 10615674 | Ferrari Washer - 10615674 | Superseded | Order 12601374 instead | |
| 10615679 | Ferrari Washer - 10615679 | Superseded | Order 12601374 instead | |
| 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead | |
| 1 | 782878 | Ferrari PEDAL BOARD MOUNT - 782878 | Price on request | Contact us for price and availability |
| 1 | 261612 | Ferrari Pedal Board Mounting - 261612 | $786.79 | Special order, ships in 7-14 days |
| 2 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 3 | 16287421 | Ferrari Bolt - 16287421 | $1.11 | Available, ships in 3-6 days |
| 3 | 788965 | Ferrari Screw - 788965 | $2.01 | Special order, ships in 7-14 days |
| 4 | 317720 | Ferrari F1 Switch Bracket - 317720 | $110.61 | Special order, ships in 7-14 days |
| 5 | 240931 | Ferrari Screw - 240931 | $9.16 | Special order, ships in 7-14 days |
| 6 | 958694 | Ferrari Pushbutton Switch - 958694 | $51.62 | Available, ships in 3-6 days |
| 7 | 12578211 | Ferrari Flanged Nyloc Nut - 12578211 | $0.57 | Special order, ships in 7-14 days |
| 8 | 190378 | Ferrari Gasket - 190378 | $1.82 | Available, ships in 3-6 days |
| 9 | 196080 | Ferrari Spacer - 196080 | $63.90 | Special order, ships in 7-14 days |
| 10 | 261826 | Ferrari Brake Servo - 261826 | $896.08 | Available, ships in 3-6 days |
| 11 | 245178 | Ferrari Brake Servo Linkage Yoke - 245178 | $120.46 | Special order, ships in 7-14 days |
| 12 | 245179 | Ferrari Cage - 245179 | $39.31 | Special order, ships in 7-14 days |
| 14 | 240987 | Ferrari Drilled Plate - 240987 | $417.97 | Special order, ships in 7-14 days |
| 15 | 14441324 | Ferrari Countersunk Allen Screw TSEI M6 x 16 - 14441324 | $0.52 | Available, ships in 3-6 days |
| 16 | 245180 | Ferrari Pin - 245180 | $127.82 | Special order, ships in 7-14 days |
| 18 | 245181 | Ferrari Rubber Washer - 245181 | $15.49 | Special order, ships in 7-14 days |
| 19 | 11064176 | Ferrari Safety Clip - 11064176 | $5.65 | Available, ships in 3-6 days |
| 20 | 12700076 | Ferrari Seeger Ring - 12700076 | $18.99 | Special order, ships in 7-14 days |
| 22 | 240930 | Ferrari Pin - 240930 | $130.29 | Special order, ships in 7-14 days |
| 23 | 240929 | Ferrari Rubber Pivot Washer - 240929 | $20.09 | Special order, ships in 7-14 days |
| 24 | 241550 | Ferrari Master Cylinder Seal - 241550 | $1.17 | Available, ships in 3-6 days |
| 25 | 248081 | Ferrari Elbow Union Retainer Plate - 248081 | $66.35 | Special order, ships in 7-14 days |
| 26 | 237586 | Ferrari Elbow Union For Brake Master Cylinder - 237586 | $13.74 | Special order, ships in 7-14 days |
| 27 | 241537 | Ferrari Screw - 241537 | $0.92 | Special order, ships in 7-14 days |
| 28 | 782845 | Ferrari Compl. Pedal Board - 782845 | $1,278.55 | Special order, ships in 7-14 days |
| 28 | 782875 | Ferrari Compl. Pedal Board - 782875 | $1,721.15 | Special order, ships in 7-14 days |
