Ferrari 812 Competizione — [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR (diagram 0071)

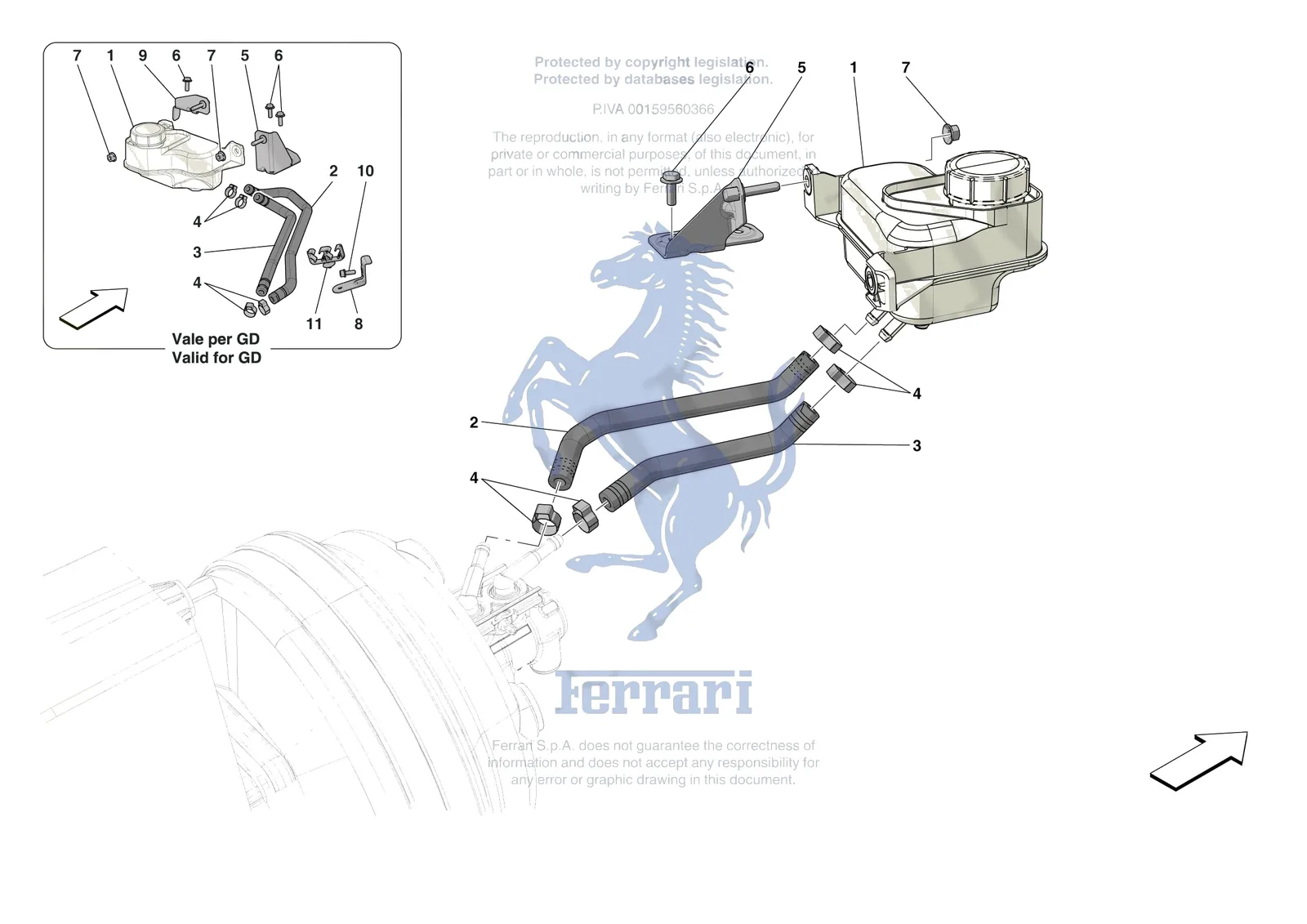

Exploded view of the [mechanical system] - d.22 - brake master cylinder reservoir on the Ferrari 812 Competizione, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0071.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 1 | 259047 | Ferrari 458/488/812/F12 Brake Fluid Reservoir - 259047 | $67.78 | In stock |
| 1 | 956155 | Ferrari Brake Fluid Reservoir - 956155 | $86.04 | Special order, ships in 7-14 days |
| 2 | 337168 | Ferrari Rubber Pipe From Tank - 337168 | $44.24 | Special order, ships in 7-14 days |
| 2 | 287873 | Ferrari Rubber Pipe From Tank RHD - 287873 | $127.82 | Special order, ships in 7-14 days |
| 3 | 337169 | Ferrari Rubber Pipe From Tank - 337169 | $41.76 | Special order, ships in 7-14 days |
| 3 | 287874 | Ferrari Rubber Pipe From Tank RHD - 287874 | $120.46 | Special order, ships in 7-14 days |
| 4 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 5 | 333937 | Ferrari Brake Fluid Reservoir Bracke - 333937 | $56.52 | Special order, ships in 7-14 days |
| 5 | 289128 | Ferrari Brake Fluid Reservoir Bracket RHD - 289128 | $88.49 | Special order, ships in 7-14 days |
| 6 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 7 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
| 8 | 297474 | Ferrari Bracket - 297474 | $31.93 | Special order, ships in 7-14 days |
| 9 | 289129 | Ferrari Brake Fluid Reservoir Internal Bracket - 289129 | $78.66 | Special order, ships in 7-14 days |
| 10 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 11 | 272185 | Ferrari Clip - 272185 | $3.26 | Special order, ships in 7-14 days |
