Ferrari 812 Competizione — [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS (diagram 0081)

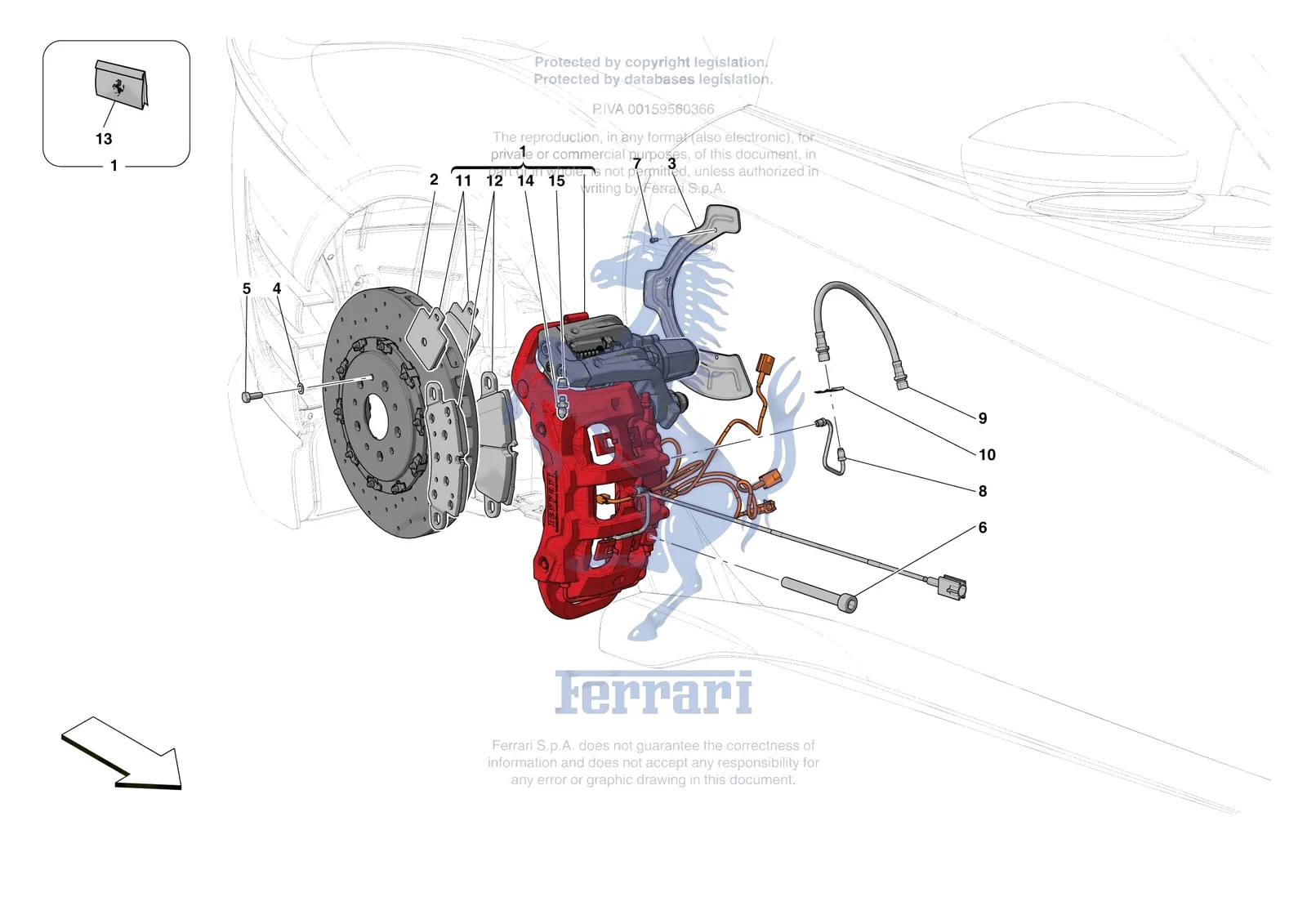

Exploded view of the [mechanical system] - d.27.03 - rear suspension - calipers and discs on the Ferrari 812 Competizione, with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0081.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 240968 | Ferrari LH Disc Shield - 240968 | Superseded | Order 257423 instead | |
| 240969 | Ferrari RH Disc Shield - 240969 | Superseded | Order 257424 instead | |
| 190870 | Ferrari Screw 6x14 - 190870 | $4.10 | Special order, ships in 7-14 days | |
| 1 | 742631 | Ferrari LH Rear Caliper With Pads - 742631 | $10,041.31 | Special order, ships in 7-14 days |
| 1 | 742633 | Ferrari LH REAR CALIPER WITH PADS - 742633 | Price on request | Contact us for price and availability |
| 1 | 742634 | Ferrari LH REAR CALIPER WITH PADS - 742634 | Price on request | Contact us for price and availability |
| 1 | 742636 | Ferrari LH REAR CALIPER WITH PADS - 742636 | Price on request | Contact us for price and availability |
| 1 | 742637 | Ferrari LH REAR CALIPER WITH PADS - 742637 | Price on request | Contact us for price and availability |
| 1 | 742639 | Ferrari LH REAR CALIPER WITH PADS - 742639 | Price on request | Contact us for price and availability |
| 1 | 742640 | Ferrari LH REAR CALIPER WITH PADS - 742640 | Price on request | Contact us for price and availability |
| 1 | 742641 | Ferrari LH REAR CALIPER WITH PADS - 742641 | Price on request | Contact us for price and availability |
| 1 | 742642 | Ferrari LH REAR CALIPER WITH PADS - 742642 | Price on request | Contact us for price and availability |
| 1 | 335699 | Ferrari Rear LH Calliper With Pads - 335699 | $7,886.92 | Special order, ships in 7-14 days |
| 1 | 335704 | Ferrari Rear LH Calliper With Pads - 335704 | $8,040.95 | Special order, ships in 7-14 days |
| 1 | 335705 | Ferrari Rear LH Calliper With Pads - 335705 | $8,357.34 | Special order, ships in 7-14 days |
| 1 | 335706 | Ferrari Rear LH Calliper With Pads - 335706 | $8,357.34 | Special order, ships in 7-14 days |
| 1 | 335707 | Ferrari Rear LH Calliper With Pads - 335707 | $8,921.44 | Special order, ships in 7-14 days |
| 1 | 335708 | Ferrari Rear LH Calliper With Pads - 335708 | $8,921.44 | Special order, ships in 7-14 days |
| 1 | 335709 | Ferrari Rear LH Calliper With Pads - 335709 | $8,357.34 | Special order, ships in 7-14 days |
| 1 | 335710 | Ferrari Rear LH Calliper With Pads - 335710 | $8,176.24 | Special order, ships in 7-14 days |
| 1 | 335711 | Ferrari Rear LH Calliper With Pads - 335711 | $8,357.34 | Special order, ships in 7-14 days |
| 1 | 335701 | Ferrari Rear RH Calliper With Pads - 335701 | $7,886.92 | Special order, ships in 7-14 days |
| 1 | 335712 | Ferrari Rear RH Calliper With Pads - 335712 | $8,040.95 | Special order, ships in 7-14 days |
| 1 | 335713 | Ferrari Rear RH Calliper With Pads - 335713 | $8,357.34 | Special order, ships in 7-14 days |
| 1 | 335714 | Ferrari Rear RH Calliper With Pads - 335714 | $8,357.34 | Special order, ships in 7-14 days |
| 1 | 335715 | Ferrari Rear RH Calliper With Pads - 335715 | $8,921.44 | Special order, ships in 7-14 days |
| 1 | 335716 | Ferrari Rear RH Calliper With Pads - 335716 | $8,921.44 | Special order, ships in 7-14 days |
| 1 | 335717 | Ferrari Rear RH Calliper With Pads - 335717 | $8,357.34 | Special order, ships in 7-14 days |
| 1 | 335718 | Ferrari Rear RH Calliper With Pads - 335718 | $8,176.24 | Special order, ships in 7-14 days |
| 1 | 335719 | Ferrari Rear RH Calliper With Pads - 335719 | $8,357.34 | Special order, ships in 7-14 days |
| 1 | 742644 | Ferrari RH REAR CALIPER WITH PADS - 742644 | Price on request | Contact us for price and availability |
| 1 | 742645 | Ferrari RH Rear Caliper With Pads - 742645 | $10,041.31 | Special order, ships in 7-14 days |
| 1 | 742647 | Ferrari RH REAR CALIPER WITH PADS - 742647 | Price on request | Contact us for price and availability |
| 1 | 742648 | Ferrari RH REAR CALIPER WITH PADS - 742648 | Price on request | Contact us for price and availability |
| 1 | 742649 | Ferrari RH REAR CALIPER WITH PADS - 742649 | Price on request | Contact us for price and availability |
| 1 | 742650 | Ferrari RH REAR CALIPER WITH PADS - 742650 | Price on request | Contact us for price and availability |
| 1 | 742651 | Ferrari RH REAR CALIPER WITH PADS - 742651 | Price on request | Contact us for price and availability |
| 1 | 742652 | Ferrari RH REAR CALIPER WITH PADS - 742652 | Price on request | Contact us for price and availability |
| 1 | 742653 | Ferrari RH REAR CALIPER WITH PADS - 742653 | Price on request | Contact us for price and availability |
| 2 | 315458 | Ferrari Brake Disc - 315458 | $7,227.59 | Special order, ships in 7-14 days |
| 2 | 905297 | Ferrari Rear Brake Disc - 905297 | $9,098.76 | Special order, ships in 7-14 days |
| 3 | 257423 | Ferrari LH Rear Disc Shield - 257423 | $95.87 | Special order, ships in 7-14 days |
| 3 | 257424 | Ferrari RH Rear Disc Shield - 257424 | $95.87 | Special order, ships in 7-14 days |
| 4 | 228132 | Ferrari Spring Washer - 228132 | $0.59 | Available, ships in 3-6 days |
| 5 | 228131 | Ferrari Screw M8 x 20 - 228131 | $1.53 | Available, ships in 3-6 days |
| 6 | 195167 | Ferrari Screw TCEI M12 x 1.5 x 95 - 195167 | $34.94 | Available, ships in 3-6 days |
| 7 | 250657 | Ferrari Screw M6 x 14 TBTX - 250657 | $13.36 | Available, ships in 3-6 days |
| 8 | 299560 | Ferrari LH Brake Pipe - 299560 | $49.14 | Special order, ships in 7-14 days |
| 8 | 299562 | Ferrari RH Brake Pipe - 299562 | $58.98 | Special order, ships in 7-14 days |
| 9 | 977797 | Ferrari Brake Hose 330 mm - 977797 | $100.78 | Available, ships in 3-6 days |
| 10 | 116374 | Ferrari/Maserati Clip - 116374 | $3.20 | In stock |
| 11 | 70003667 | Ferrari Set Of EPB Pads - 70003667 | $1,968.72 | Available, ships in 3-6 days |
| 12 | 70003759 | Ferrari 488/F8/F12 Rear Brake Pad Set - 70003759 | $1,757.80 | In stock |
| 12 | 851791 | Ferrari Rear Pad Set With Spring - 851791 | $4,822.50 | Special order, ships in 7-14 days |
| 13 | 70003493 | Ferrari Rear Brake Caliper Seal Kit - 70003493 | $108.90 | In stock |
| 14 | 215665 | Ferrari Bleed Nipple Valve - 215665 | $78.66 | Available, ships in 3-6 days |
| 15 | 215666 | Ferrari Cap For Bleed Nipple - 215666 | $51.62 | Available, ships in 3-6 days |
