Ferrari 812 Competizione — [MECHANICAL SYSTEM] - D.30.02 - STEERING WHEEL AND STEERING SYSTEM - STEERING WHEEL AND AIRBAG (diagram 0085)

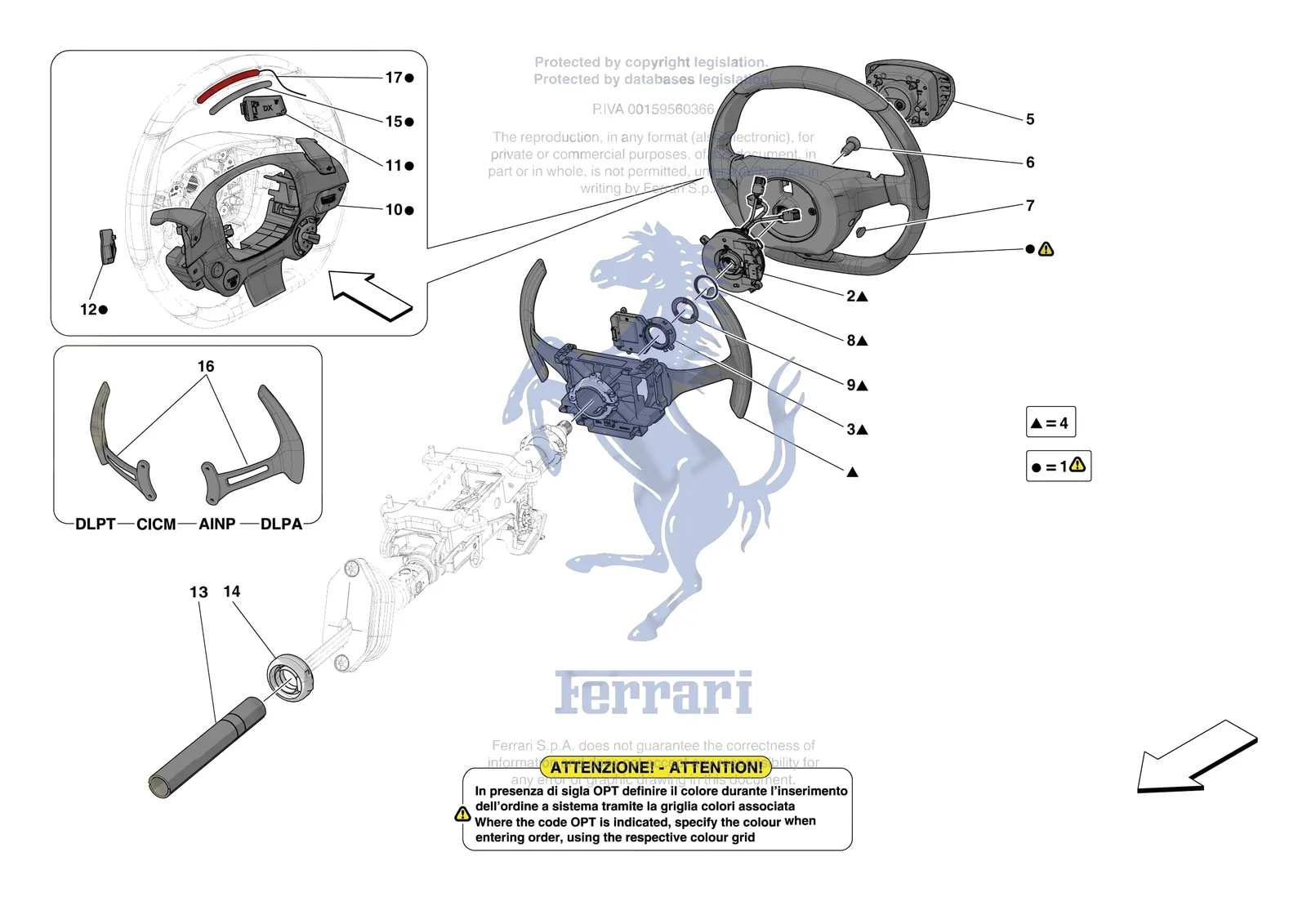

Exploded view of the [mechanical system] - d.30.02 - steering wheel and steering system - steering wheel and airbag on the Ferrari 812 Competizione, with 32 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [MECHANICAL SYSTEM] - D.30.02 - STEERING WHEEL AND STEERING SYSTEM - STEERING WHEEL AND AIRBAG exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0085.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 73453400 | Ferrari Air-Bag Driver - 73453400 | $3,000.25 | Special order, ships in 7-14 days | |
| 105303 | Ferrari Clamp - 105303 | Superseded | Order 13000690 instead | |
| 12173990 | Ferrari Clip - 12173990 | Superseded | Order 13000690 instead | |
| 12174090 | Ferrari Hose Clip 32-50 - 12174090 | Superseded | Order 13000690 instead | |
| 12177090 | Ferrari Hose Clip 32-50 - 12177090 | Superseded | Order 13000690 instead | |
| 275398 | Ferrari Screw - 275398 | Superseded | Order 301723 instead | |
| 1 | 777977 | Ferrari Compl. Steering Wheel - 777977 | $17,072.11 | Contact us to order |
| 1 | 777981 | Ferrari Compl. Steering Wheel - 777981 | $30,568.83 | Contact us to order |
| 1 | 897718 | Ferrari Compl. Steering Wheel - 897718 | $17,607.43 | Contact us to order |
| 1 | 934108 | Ferrari Compl. Steering Wheel - 934108 | $58,816.28 | Contact us to order |
| 2 | 327252 | Ferrari Clock Spring Contact - 327252 | $811.38 | Special order, ships in 7-14 days |
| 3 | 309296 | Ferrari Steering Angle Sensor - 309296 | $371.53 | Special order, ships in 7-14 days |
| 4 | 881217 | Ferrari Gruppo Com.Cambio F1 Racing - 881217 | $5,926.88 | Special order, ships in 7-14 days |
| 4 | 890896 | Ferrari Gruppo Com.Cambio F1 Racing - 890896 | $6,388.21 | Special order, ships in 7-14 days |
| 5 | 89461100 | Ferrari Air-Bag Driver - 89461100 | Superseded | Order 73453400 instead |
| 6 | 301723 | Ferrari Screw - 301723 | $164.72 | Special order, ships in 7-14 days |
| 7 | 14506587 | Ferrari Rubber Grommet - 14506587 | $0.38 | Available, ships in 3-6 days |
| 8 | 828380 | Ferrari Clock Spring Connector Spring - 828380 | $3.26 | Available, ships in 3-6 days |
| 9 | 828381 | Ferrari Clock Spring Connector Lock - 828381 | $12.21 | Available, ships in 3-6 days |
| 10 | 777979 | Ferrari Steering Wheel Node - 777979 | $11,989.63 | Contact us to order |
| 10 | 777984 | Ferrari Steering Wheel Node - 777984 | $11,989.63 | Contact us to order |
| 10 | 897721 | Ferrari Steering Wheel Node - 897721 | $11,989.63 | Contact us to order |
| 10 | 934109 | Ferrari Steering Wheel Node - 934109 | $11,989.63 | Contact us to order |
| 11 | 321865 | Ferrari RH Nit Thumbwheel Control - 321865 | $565.49 | Special order, ships in 7-14 days |
| 12 | 321866 | Ferrari LH Nit Thumbwheel Control - 321866 | $565.49 | Special order, ships in 7-14 days |
| 13 | 278791 | Ferrari Steering Column Shield - 278791 | $88.49 | Special order, ships in 7-14 days |
| 14 | 13000690 | Ferrari/Maserati Hose Clamp - 13000690 | $1.49 | In stock |
| 15 | 856950 | Ferrari Vetrino Barra A Led Volante - 856950 | $344.21 | Special order, ships in 7-14 days |
| 16 | 70006274 | Ferrari Cicm Off-Catalogue Shift Pad - 70006274 | $8,750.24 | Special order, ships in 7-14 days |
| 16 | 70007453 | Ferrari COLOURED ALUMINIUM SHIFT PADDLE KIT - 70007453 | Price on request | Contact us for price and availability |
| 16 | 70006495 | Ferrari Off-Catalogue Gloss Carbon S - 70006495 | $11,047.72 | Contact us to order |
| 17 | 331008 | Ferrari Barra Led - 331008 | $1,155.62 | Special order, ships in 7-14 days |
