Ferrari 812 Competizione — [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE (diagram 0096)

Exploded view of the [vehicle trim] - e.01.02 - structures and elements centre of vehicle on the Ferrari 812 Competizione, with 65 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

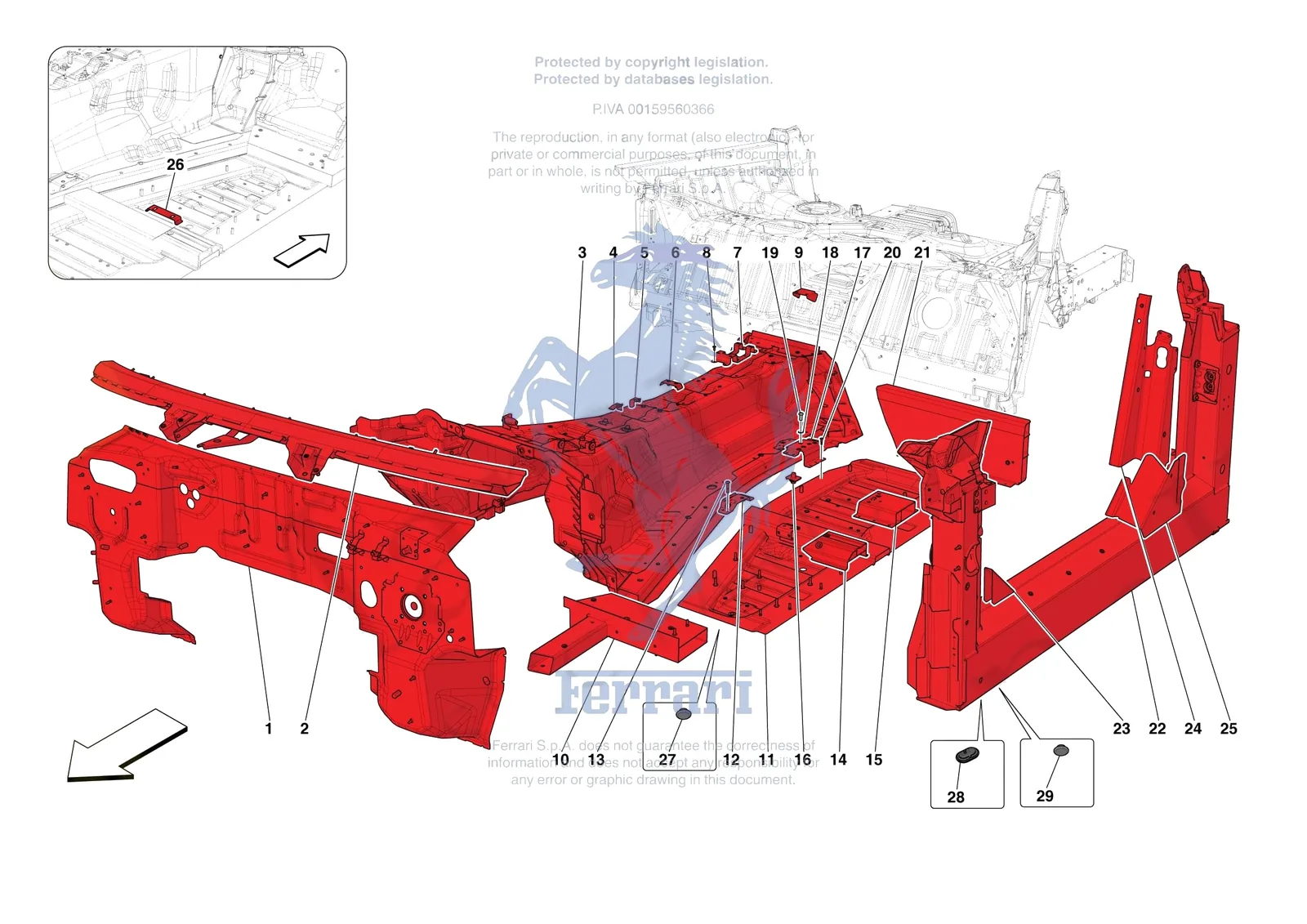

Ferrari 812 Competizione [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
325400Ferrari Front Firewall - 325400SupersededOrder 985325400 instead
278428Ferrari LH External Pillar Truss - 278428SupersededOrder 985278428 instead
278430Ferrari LH Internal Pillar Truss - 278430SupersededOrder 985278430 instead
292692Ferrari LH Lower Extrusion RHD - 292692$480.17Special order, ships in 7-14 days
274205Ferrari LH Lower Rear Floor Cross-Piece - 274205$1,444.15Special order, ships in 7-14 days
273926Ferrari LH Outer Front Seat Bracket - 273926$881.17Special order, ships in 7-14 days
281636Ferrari LH Rear Seat Outer Extrusion - 281636$979.09Special order, ships in 7-14 days
273971Ferrari LH Semi-Floor - 273971SupersededOrder 985273971 instead
334363Ferrari LH Sill Beam Pillar Section - 334363$26,883.03Contact us to order
278429Ferrari RH External Pillar Truss - 278429SupersededOrder 985278429 instead
278431Ferrari RH Internal Pillar Truss - 278431SupersededOrder 985278431 instead
292691Ferrari RH Lower Extrusion RHD - 292691$480.17Special order, ships in 7-14 days
274204Ferrari RH Lower Rear Floor Cross-Piece - 274204$1,444.15Special order, ships in 7-14 days
273925Ferrari RH Outer Front Seat Bracket - 273925$881.17Special order, ships in 7-14 days
281637Ferrari RH Rear Seat Outer Extrusion - 281637$979.09Special order, ships in 7-14 days
273972Ferrari RH Semi-Floor - 273972SupersededOrder 985273972 instead
334370Ferrari RH Sill Beam Pillar Section - 334370SupersededOrder 985334370 instead
281535Ferrari Tunnel Complete LHD - 281535SupersededOrder 985281535 instead
273126Ferrari Windscreen Valence Panel LHD - 273126Price on requestContact us for price and availability
1985325400Ferrari Front Firewall - 985325400$5,585.00Contact us to order
1289169Ferrari Front Firewall RHD - 289169$1,549.03Contact us to order
2985273126Ferrari Windscreen Valence Panel LHD - 985273126Price on requestContact us for price and availability
2292682Ferrari Windscreen Valence Panel RHD - 292682$1,647.38Special order, ships in 7-14 days
3985281535Ferrari Tunnel Complete LHD - 985281535$33,588.83Contact us to order
3293320Ferrari Tunnel Complete RHD - 293320$27,357.91Contact us to order
4331139Ferrari LH Fastener Bracket For Fron - 331139$110.61Special order, ships in 7-14 days
4331140Ferrari RH Fastener Bracket For Fron - 331140$110.61Special order, ships in 7-14 days
5286419Ferrari LH Bracket For Front Fastener - 286419$8.82Special order, ships in 7-14 days
5286420Ferrari RH Bracket For Front Fastener - 286420$6.61Special order, ships in 7-14 days
6286417Ferrari Front Bracket For Front Fastener - 286417$21.60Special order, ships in 7-14 days
7331125Ferrari Rear Fastener Bracket For Re - 331125$110.61Special order, ships in 7-14 days
814645690Ferrari Rivet D.4 8X10 - 14645690$0.65Available, ships in 3-6 days
9331149Ferrari Rear Unit Mounting Bracket - 331149$762.20Special order, ships in 7-14 days
10985292692Ferrari LH Lower Extrusion RHD - 985292692$786.79Special order, ships in 7-14 days
10985292691Ferrari RH Lower Extrusion RHD - 985292691$860.56Special order, ships in 7-14 days
11985273971Ferrari LH Semi-Floor - 985273971$2,458.79Contact us to order
11985273972Ferrari RH Semi-Floor - 985273972$2,458.79Contact us to order
12273921Ferrari LH Inner Front Seat Bracket - 273921$1,106.43Special order, ships in 7-14 days
12273922Ferrari RH Inner Front Seat Bracket - 273922$1,106.43Special order, ships in 7-14 days
13204430Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430$2.82Available, ships in 3-6 days
14985273926Ferrari LH Outer Front Seat Bracket - 985273926$885.15Special order, ships in 7-14 days
14985273925Ferrari RH Outer Front Seat Bracket - 985273925$885.15Special order, ships in 7-14 days
15985281636Ferrari LH Rear Seat Outer Extrusion - 985281636$983.50Special order, ships in 7-14 days
15985281637Ferrari RH Rear Seat Outer Extrusion - 985281637$983.50Special order, ships in 7-14 days
16252821Ferrari Compl. Ground - 252821$61.45Special order, ships in 7-14 days
17294720Ferrari LH Inner Rear Seat Bracket - 294720$885.15Special order, ships in 7-14 days
17294722Ferrari RH Inner Rear Seat Bracket - 294722$885.15Special order, ships in 7-14 days
1813579421Ferrari WASHER - 13579421Price on requestContact us for price and availability
1984260600Ferrari Screw M8 x 20 - 84260600$344.21Special order, ships in 7-14 days
2014639591Ferrari Rivet - 14639591$3.03Available, ships in 3-6 days
21985274205Ferrari LH Lower Rear Floor Cross-Piece - 985274205$1,475.26Special order, ships in 7-14 days
21985274204Ferrari RH Lower Rear Floor Cross-Piece - 985274204$1,475.26Special order, ships in 7-14 days
22985334363Ferrari LH Sill Beam Pillar Section - 985334363$28,657.46Contact us to order
22336347Ferrari RH Sill Beam Pillar Section - 336347$28,351.56Contact us to order
22985334370Ferrari RH Sill Beam Pillar Section - 985334370$28,657.46Contact us to order
23281611Ferrari LH Internal Front Truss - 281611$663.86Special order, ships in 7-14 days
23281612Ferrari RH Internal Front Truss - 281612$663.86Special order, ships in 7-14 days
24985278430Ferrari LH Internal Pillar Truss - 985278430$835.97Special order, ships in 7-14 days
24985278431Ferrari RH Internal Pillar Truss - 985278431$835.97Special order, ships in 7-14 days
25985278428Ferrari LH External Pillar Truss - 985278428$565.49Special order, ships in 7-14 days
25985278429Ferrari RH External Pillar Truss - 985278429$565.49Special order, ships in 7-14 days
26331143Ferrari Magneride Connector Bracket - 331143$110.61Special order, ships in 7-14 days
2785492800Ferrari Acoustic Closure Cap 28 x 22 - 85492800$3.41Special order, ships in 7-14 days
2882882400Ferrari Cap For Slot - 82882400$7.19Special order, ships in 7-14 days
2982299600Ferrari Plug For Front Master Point - 82299600$5.00Available, ships in 3-6 days
