Ferrari 812 Competizione — [VEHICLE TRIM] - E.03 - ROOF (diagram 0099)

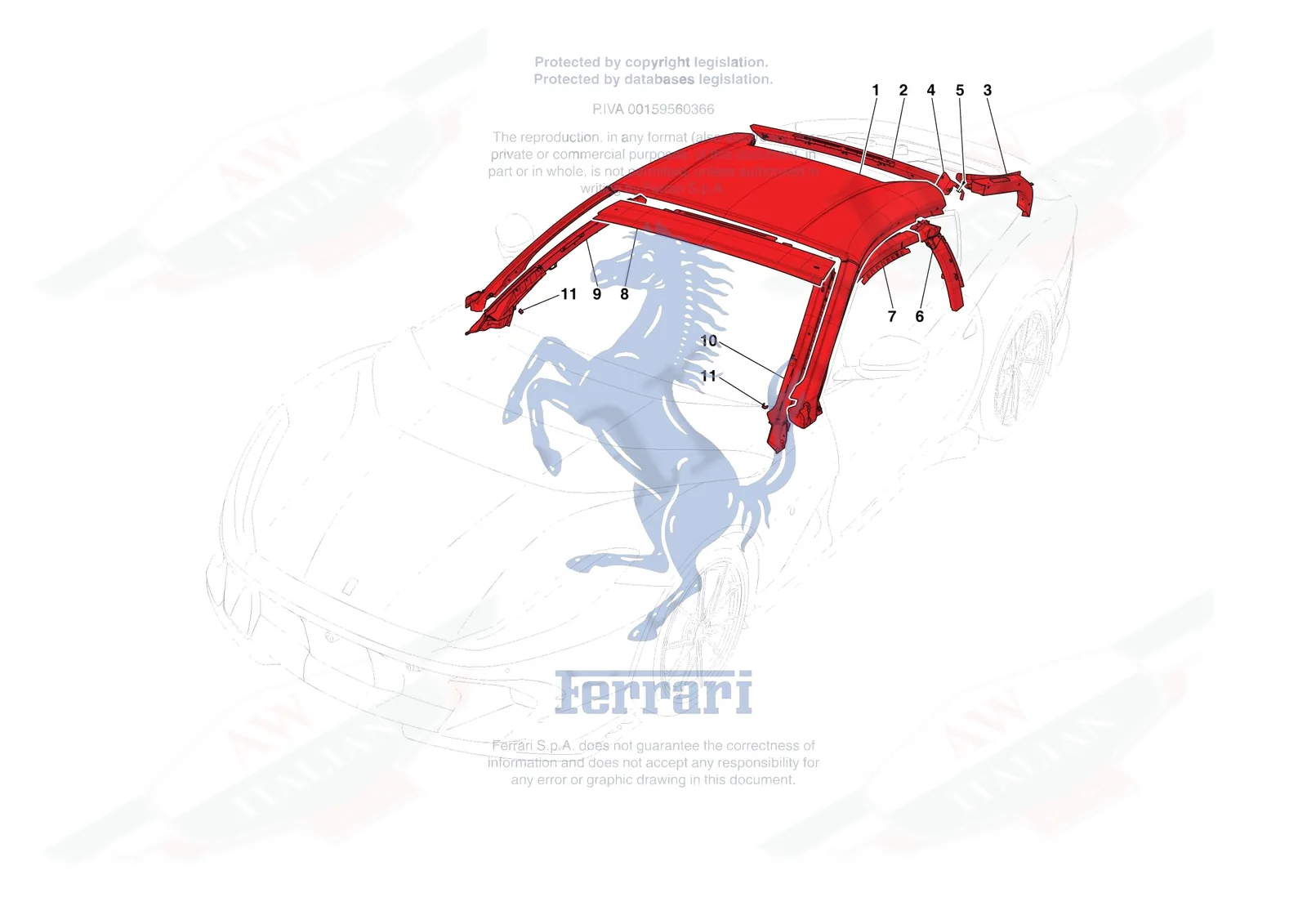

Exploded view of the [vehicle trim] - e.03 - roof on the Ferrari 812 Competizione, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [VEHICLE TRIM] - E.03 - ROOF exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0099.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 985741019 | Ferrari Compl. Outer Roof Skin - 985741019 | $19,519.36 | Contact us to order |
| 1 | 985741386 | Ferrari Compl. Outer Roof Skin - 985741386 | $19,577.92 | Contact us to order |
| 2 | 985741811 | Ferrari Compl. Rear Roof Cross Membe - 985741811 | $2,084.11 | Special order, ships in 7-14 days |
| 3 | 985963039 | Ferrari Compl. LH Rear Roof Beam - 985963039 | $1,426.08 | Special order, ships in 7-14 days |
| 3 | 985963054 | Ferrari Compl. RH Rear Roof Beam - 985963054 | $1,426.08 | Special order, ships in 7-14 days |
| 4 | 884506 | Ferrari Compl. LH Intumescent Partit - 884506 | $132.75 | Special order, ships in 7-14 days |
| 4 | 884509 | Ferrari Compl. RH Intumescent Partit - 884509 | $132.75 | Special order, ships in 7-14 days |
| 5 | 14645690 | Ferrari Rivet D.4 8X10 - 14645690 | $0.65 | Available, ships in 3-6 days |
| 6 | 985742501 | Ferrari Compl. LH B-Pillar - 985742501 | $1,745.74 | Special order, ships in 7-14 days |
| 6 | 985742486 | Ferrari Compl. RH B-Pillar - 985742486 | $1,745.74 | Special order, ships in 7-14 days |
| 7 | 279452 | Ferrari LH Central Roof Beam - 279452 | $491.74 | Special order, ships in 7-14 days |
| 7 | 279450 | Ferrari RH Central Roof Beam - 279450 | $491.74 | Special order, ships in 7-14 days |
| 8 | 985963051 | Ferrari Compl. Upper Windscreen Cros - 985963051 | $1,849.95 | Special order, ships in 7-14 days |
| 9 | 985980253 | Ferrari Compl. RH A-Pillar Node - 985980253 | $2,915.43 | Special order, ships in 7-14 days |
| 10 | 985980256 | Ferrari Compl. LH A-Pillar Node - 985980256 | $2,915.43 | Special order, ships in 7-14 days |
| 11 | 84315000 | Ferrari Intumescent Seal Strip - 84315000 | $7.59 | Special order, ships in 7-14 days |
