Ferrari 812 Competizione — [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE (diagram 0106)
Exploded view of the [vehicle trim] - e.10 - rear lid substructure on the Ferrari 812 Competizione, with 8 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

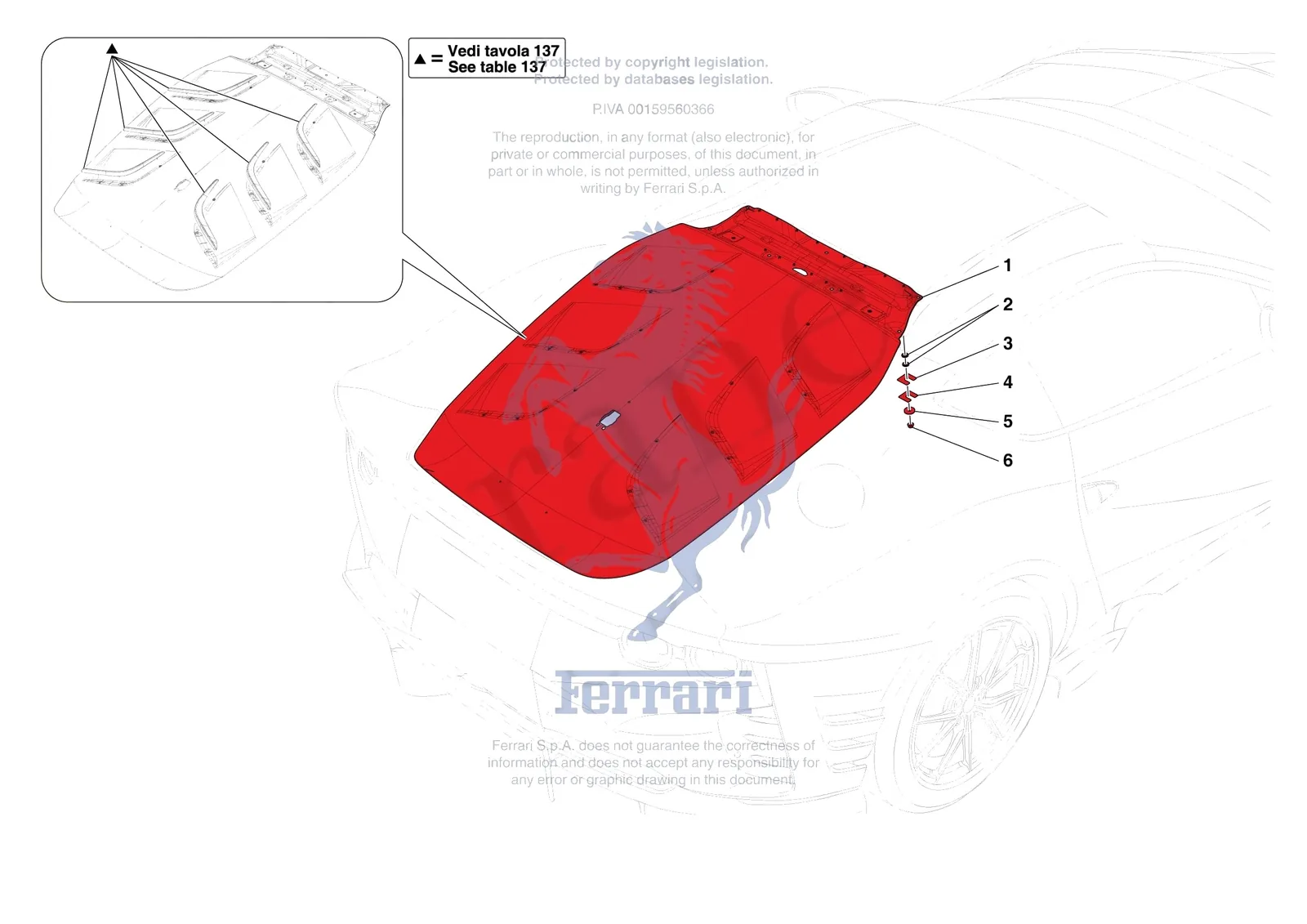

![Ferrari 812 Competizione [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0106.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 242224 | Ferrari Spacer 1.0mm - 242224 | $5.19 | Special order, ships in 7-14 days | |
| 11193979 | Ferrari Washer - 11193979 | $0.31 | Available, ships in 3-6 days | |
| 1 | 985985714 | Ferrari Rear Lid - 985985714 | $13,263.52 | Contact us to order |
| 2 | 84653800 | Ferrari Washer - 84653800 | $10.91 | Available, ships in 3-6 days |
| 3 | 84651000 | Ferrari Spacer 1.0mm - 84651000 | $6.96 | Special order, ships in 7-14 days |
| 4 | 84651200 | Ferrari Shim 2mm - 84651200 | $6.96 | Special order, ships in 7-14 days |
| 5 | 80416000 | Ferrari Washer - 80416000 | $3.26 | Available, ships in 3-6 days |
| 6 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
