Ferrari 812 Competizione — [VEHICLE TRIM] - E.22 - FRONT AIR INTAKES (diagram 0121)
Exploded view of the [vehicle trim] - e.22 - front air intakes on the Ferrari 812 Competizione, with 5 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

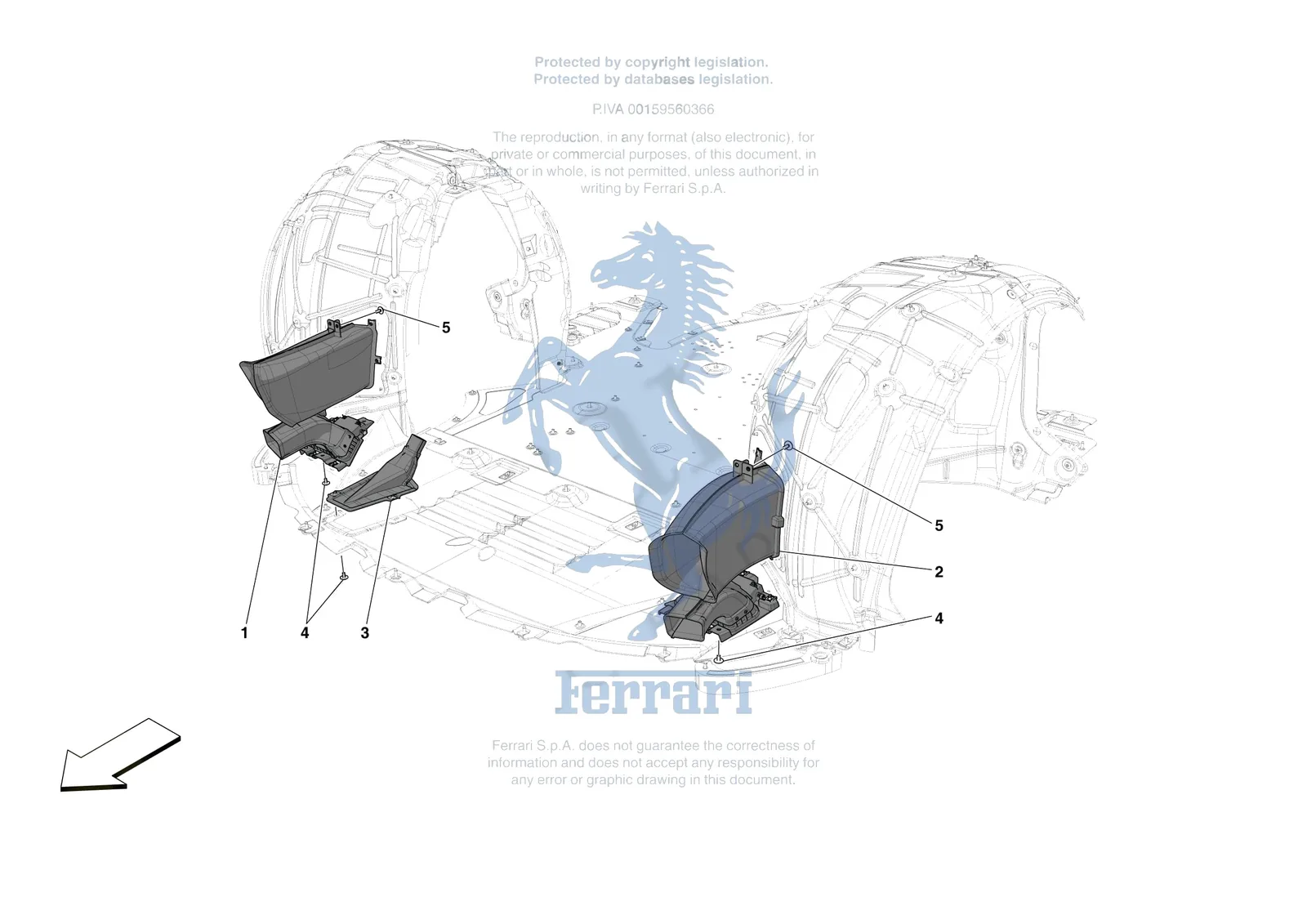

![Ferrari 812 Competizione [VEHICLE TRIM] - E.22 - FRONT AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0121.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 804858 | Ferrari Front Air Duct. Compl. RH Re - 804858 | $491.74 | Special order, ships in 7-14 days |
| 2 | 804873 | Ferrari Front Air Duct. Compl. LH Re - 804873 | $491.74 | Special order, ships in 7-14 days |
| 3 | 88870000 | Ferrari Compl. Eps Cooling Duct - 88870000 | $83.57 | Special order, ships in 7-14 days |
| 4 | 82115900 | Ferrari Screw M6 x 14 With Washer - 82115900 | $1.23 | Available, ships in 3-6 days |
| 5 | 81591700 | Ferrari Screw TE M6 x 18 with washer - 81591700 | $4.12 | Available, ships in 3-6 days |
