Ferrari 812 Competizione — [VEHICLE TRIM] - E.23 - LATERAL AIR INTAKES (diagram 0122)

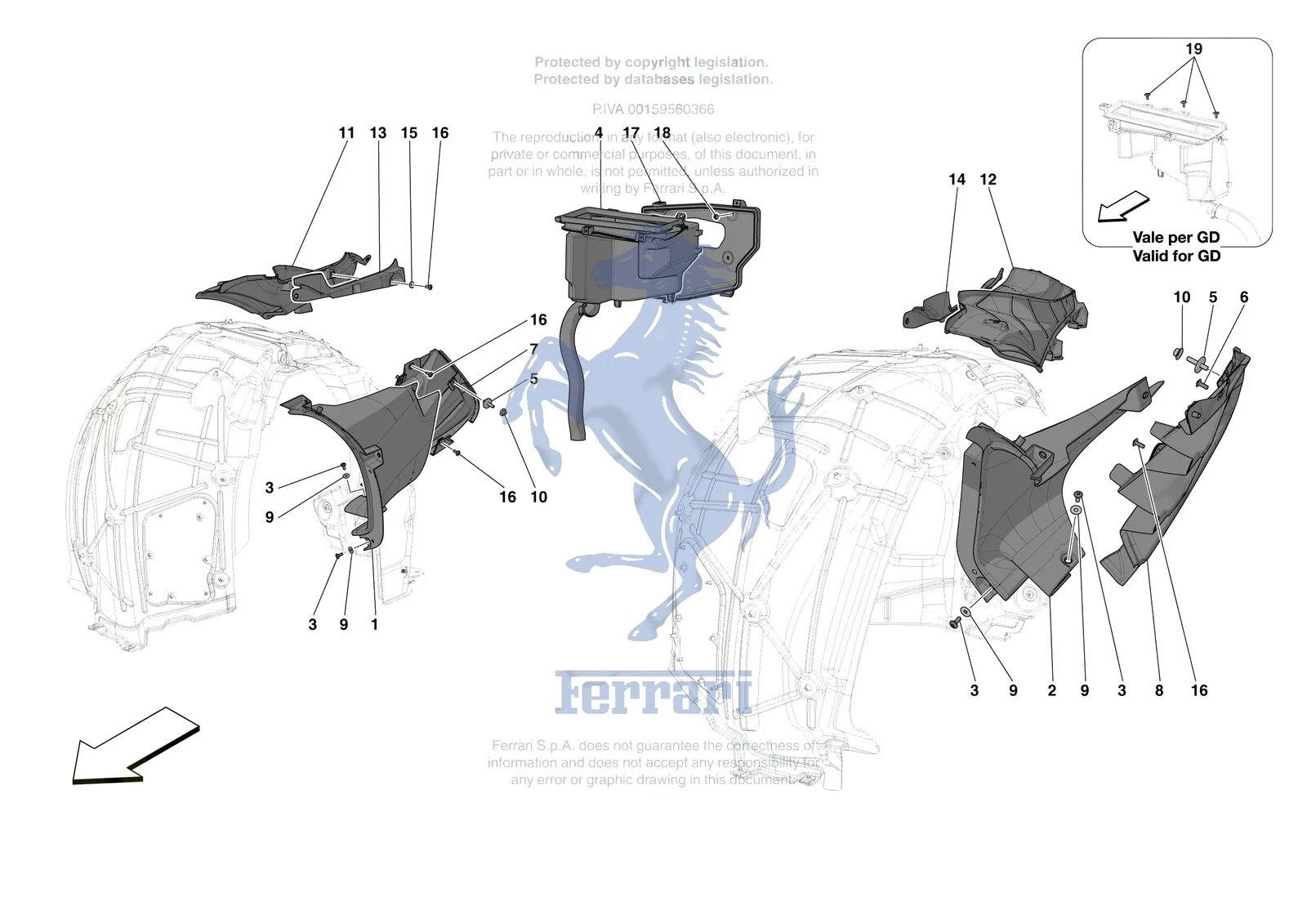

Exploded view of the [vehicle trim] - e.23 - lateral air intakes on the Ferrari 812 Competizione, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [VEHICLE TRIM] - E.23 - LATERAL AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0122.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 770467 | Ferrari RH Lateral Air Duct Compl - 770467 | $590.08 | Special order, ships in 7-14 days |
| 2 | 770468 | Ferrari LH Lateral Air Duct Compl - 770468 | $590.08 | Special order, ships in 7-14 days |
| 3 | 85833800 | Ferrari Screw M5 x 14 TBFTX - 85833800 | $0.90 | Available, ships in 3-6 days |
| 4 | 88429300 | Ferrari Compl. Ac Unit Air Intake Tr - 88429300 | $565.49 | Special order, ships in 7-14 days |
| 4 | 89146100 | Ferrari Compl. Ac Unit Air Intake Tr - 89146100 | $983.50 | Special order, ships in 7-14 days |
| 5 | 745827 | Ferrari Special Screw - 745827 | $30.57 | Special order, ships in 7-14 days |
| 6 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 7 | 749605 | Ferrari RH Lateral Air Duct Compl. - 749605 | $3,411.87 | Special order, ships in 7-14 days |
| 7 | 745771 | Ferrari RH Lateral Air Duct Compl - 745771 | $3,322.88 | Special order, ships in 7-14 days |
| 7 | 70007459 | Ferrari RH LATERAL AIR DUCT, COMPL. REAR PART - 70007459 | Price on request | Contact us for price and availability |
| 8 | 745769 | Ferrari LH Lateral Air Duct Compl. - 745769 | $3,292.45 | Special order, ships in 7-14 days |
| 8 | 749624 | Ferrari LH Lateral Air Duct Compl. - 749624 | $3,411.87 | Special order, ships in 7-14 days |
| 8 | 70007460 | Ferrari LH LATERAL AIR DUCT, COMPL. REAR PART - 70007460 | Price on request | Contact us for price and availability |
| 9 | 14447078 | Ferrari Washer D. 5.5 - 15 x 1 - 14447078 | $0.54 | Special order, ships in 7-14 days |
| 10 | 12578111 | Ferrari Flanged Nyloc Nut - 12578111 | $0.50 | Available, ships in 3-6 days |
| 10 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 10 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 11 | 801683 | Ferrari Compl. RH Upper Lateral Air - 801683 | $164.72 | Special order, ships in 7-14 days |
| 11 | 907975 | Ferrari Compl. RH Upper Lateral Air - 907975 | $194.22 | Special order, ships in 7-14 days |
| 12 | 799110 | Ferrari Compl. LH Upper Lateral Air - 799110 | $164.72 | Special order, ships in 7-14 days |
| 12 | 907944 | Ferrari Compl. LH Upper Lateral Air - 907944 | $194.22 | Special order, ships in 7-14 days |
| 13 | 799123 | Ferrari RH Lateral Upper Air Duct Su - 799123 | $51.62 | Special order, ships in 7-14 days |
| 13 | 950833 | Ferrari RH Lateral Upper Air Duct Su - 950833 | $78.66 | Special order, ships in 7-14 days |
| 14 | 799122 | Ferrari LH Lateral Upper Air Duct Su - 799122 | $51.62 | Special order, ships in 7-14 days |
| 14 | 950834 | Ferrari LH Lateral Upper Air Duct Su - 950834 | $78.66 | Special order, ships in 7-14 days |
| 15 | 13577701 | Ferrari Washer 5.15 - 15 x 1.2 - 13577701 | $0.19 | Available, ships in 3-6 days |
| 16 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 16 | 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days |
| 17 | 88429000 | Ferrari Compl. Ac Unit Air Intake Tr - 88429000 | $221.26 | Special order, ships in 7-14 days |
| 17 | 89145700 | Ferrari Compl. Ac Unit Air Intake Tr - 89145700 | $442.56 | Special order, ships in 7-14 days |
| 18 | 13046014 | Ferrari Nut - 13046014 | $0.63 | Special order, ships in 7-14 days |
| 19 | 256490 | Ferrari Screw TBEI M5 x 16 - 256490 | $3.91 | Available, ships in 3-6 days |
