Ferrari 812 Competizione — [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES (diagram 0129)

Exploded view of the [vehicle trim] - e.29.02 - doors - opening mechanisms and hinges on the Ferrari 812 Competizione, with 63 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

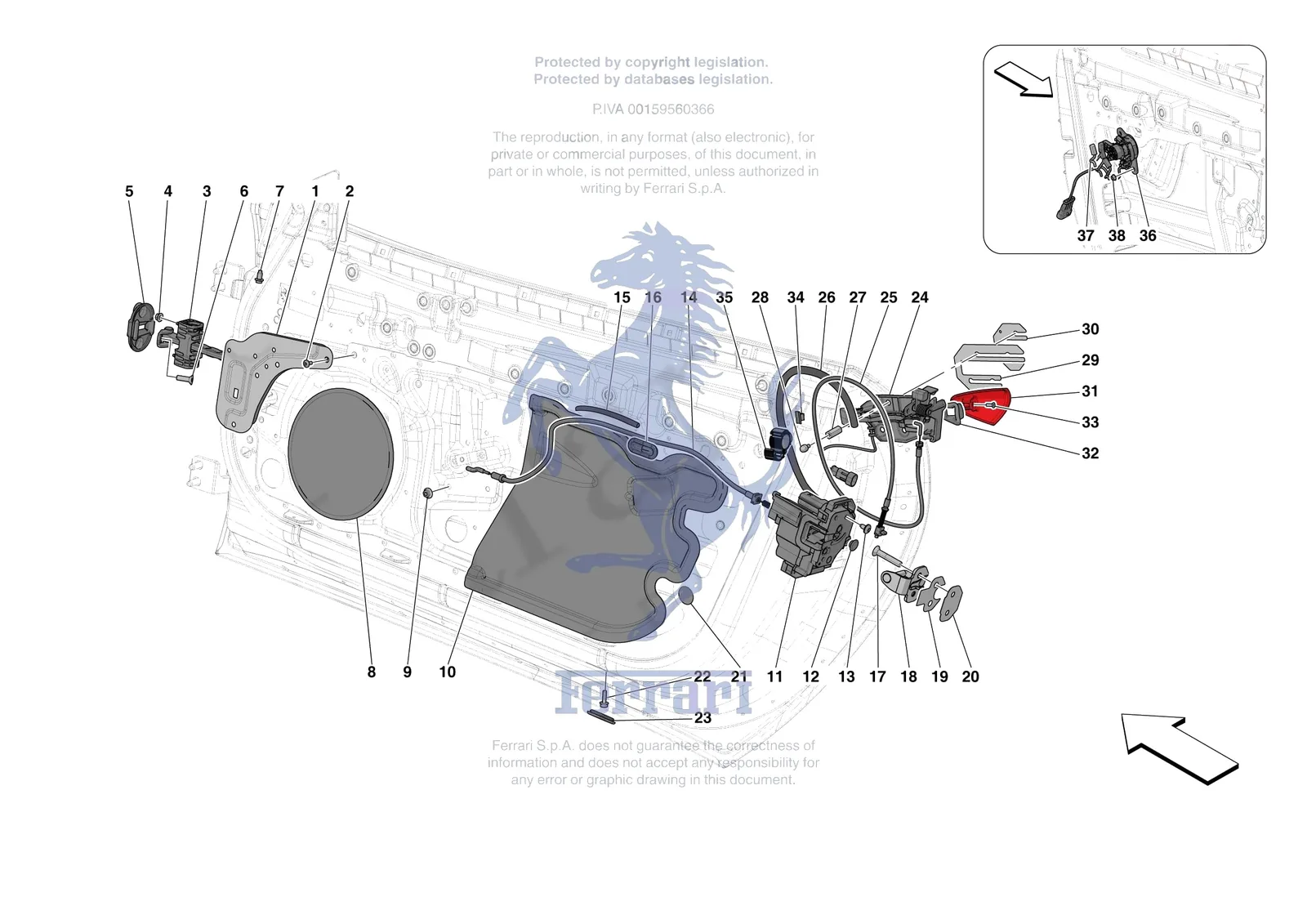

Ferrari 812 Competizione [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
84841400Ferrari Adhesive Plug - 84841400SupersededOrder 84832400 instead
12486580Ferrari Botton - 12486580SupersededOrder 204781 instead
82629100Ferrari Cable Grommet - 82629100SupersededOrder 898656 instead
175871Ferrari Clip - 175871SupersededOrder 204781 instead
14569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
323365Ferrari Connector Fastener Clip - 323365SupersededOrder 204781 instead
83982900Ferrari Hexagonal Pillar - 83982900SupersededOrder 87940300 instead
85730900Ferrari LH Door Lock LHD - 85730900SupersededOrder 785970 instead
85731000Ferrari LH Door Lock RHD - 85731000$318.19Special order, ships in 7-14 days
69979110Ferrari LH External Door Handle - 69979110SupersededOrder 69979100 instead
85730800Ferrari RH Door Lock LHD - 85730800SupersededOrder 785971 instead
85731100Ferrari RH Door Lock RHD - 85731100SupersededOrder 785975 instead
69978910Ferrari RH External Door Handle - 69978910SupersededOrder 69978900 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
188257500Ferrari Compl. LH Door Substructure - 88257500$115.54Special order, ships in 7-14 days
188257600Ferrari Compl. RH Door Substructure - 88257600$115.54Special order, ships in 7-14 days
285692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
383965500Ferrari Door Arrester Tie-Rod - 83965500$189.31Special order, ships in 7-14 days
414059214Ferrari Flanged Nut M6 - 14059214$0.38Available, ships in 3-6 days
583897000Ferrari Door Arrester Tie-Rod Seal - 83897000$24.32Special order, ships in 7-14 days
684872900Ferrari Screw - 84872900$0.82Available, ships in 3-6 days
785133600Ferrari Screw - 85133600$2.82Available, ships in 3-6 days
8912149Ferrari Telina Riparo Acqua Porta No - 912149$159.79Special order, ships in 7-14 days
913832101Ferrari Flanged Nut M6 - 13832101$0.27Available, ships in 3-6 days
1088157800Ferrari LH Door Waterproof Membrane - 88157800$98.32Special order, ships in 7-14 days
1088157900Ferrari RH Door Waterproof Membrane - 88157900$98.32Special order, ships in 7-14 days
11785970Ferrari LH Door Lock LHD - 785970$243.40Special order, ships in 7-14 days
11785974Ferrari LH Door Lock RHD - 785974$243.40Special order, ships in 7-14 days
11785971Ferrari RH Door Lock LHD - 785971$243.40Special order, ships in 7-14 days
11785975Ferrari RH Door Lock RHD - 785975$243.40Special order, ships in 7-14 days
1214506587Ferrari Rubber Grommet - 14506587$0.38Available, ships in 3-6 days
1346401657Ferrari Screw TBEI M6 x 12 Torx - 46401657$1.04Available, ships in 3-6 days
14895642Ferrari Inner Door Handle Bowden Cable - 895642$132.75Special order, ships in 7-14 days
1582936500Ferrari Protective Sheath For Internal Handle Bowden Cable - 82936500$4.39Special order, ships in 7-14 days
16898656Ferrari Cable Grommet - 898656$6.10Special order, ships in 7-14 days
1785052700Ferrari Screw - 85052700$2.82Special order, ships in 7-14 days
1885052500Ferrari Door Lock Striker Plate - 85052500$29.48Special order, ships in 7-14 days
1983595400Ferrari Door Striker Plate Film - 83595400$7.40Special order, ships in 7-14 days
2085052600Ferrari Door Striker Plate Shim - 85052600$11.56Special order, ships in 7-14 days
2184832400Ferrari Adhesive Plug - 84832400$2.59Special order, ships in 7-14 days
2216286124Ferrari Screw M6x20 - 16286124$0.71Special order, ships in 7-14 days
2385154200Ferrari Cap - 85154200$2.82Special order, ships in 7-14 days
2480821800Ferrari LH Outer Door Handle Module - 80821800$368.79Special order, ships in 7-14 days
2480821600Ferrari RH Outer Door Handle Module - 80821600$393.38Special order, ships in 7-14 days
2569877100Ferrari Door Bowden Cable - 69877100$68.83Special order, ships in 7-14 days
2682936400Ferrari Sheath - 82936400$8.59Special order, ships in 7-14 days
2787940300Ferrari Hexagonal Pillar - 87940300$34.40Special order, ships in 7-14 days
2862239900Ferrari Pin - 62239900$9.56Available, ships in 3-6 days
2980821900Ferrari Door Handle Spacer - 80821900$12.21Special order, ships in 7-14 days
3088007300Ferrari Door Handle Spacer LHD - 88007300$6.54Special order, ships in 7-14 days
3169979100Ferrari LH External Door Handle - 69979100$81.11Special order, ships in 7-14 days
3169978900Ferrari RH External Door Handle - 69978900$81.11Special order, ships in 7-14 days
3281327900Ferrari LH Seal - 81327900$22.35Special order, ships in 7-14 days
3281328000Ferrari RH Seal - 81328000$22.35Special order, ships in 7-14 days
3380365900Ferrari Screw M4 x 12 TSEI - 80365900$0.31Available, ships in 3-6 days
34204781Ferrari Clip - 204781$1.67Available, ships in 3-6 days
35248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
3689385200Ferrari LH Door Lock Latch Lever - 89385200$270.44Special order, ships in 7-14 days
3689388600Ferrari RH Door Lock Latch Lever - 89388600$270.44Special order, ships in 7-14 days
3788063400Ferrari Compl. LH Door Lock Latch Le - 88063400$295.03Special order, ships in 7-14 days
3789296600Ferrari Compl. RH Door Lock Latch Le - 89296600$295.03Special order, ships in 7-14 days
3814059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
