Ferrari 812 Competizione — [VEHICLE TRIM] - E.32 - DOOR SEALS (diagram 0133)

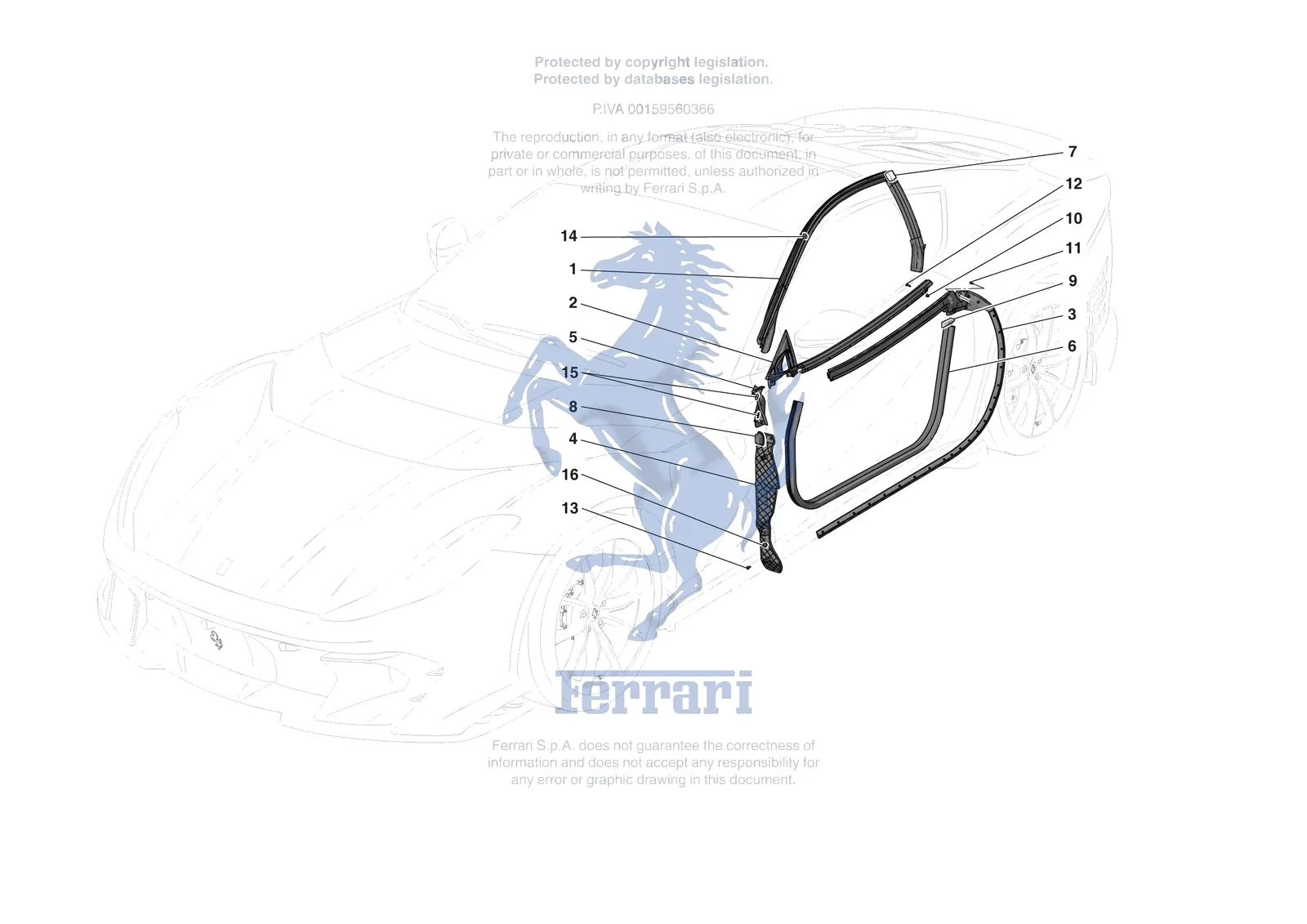

Exploded view of the [vehicle trim] - e.32 - door seals on the Ferrari 812 Competizione, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [VEHICLE TRIM] - E.32 - DOOR SEALS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0133.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 88059300 | Ferrari Internal LH Window Scraper S - 88059300 | Superseded | Order 890463 instead | |
| 88059400 | Ferrari Internal RH Window Scraper S - 88059400 | Superseded | Order 890461 instead | |
| 88060400 | Ferrari LH Door Jamb Shield - 88060400 | Superseded | Order 899838 instead | |
| 88060000 | Ferrari LH Seal - 88060000 | $76.13 | Special order, ships in 7-14 days | |
| 88060500 | Ferrari RH Door Jamb Shield - 88060500 | Superseded | Order 899840 instead | |
| 88060100 | Ferrari RH Seal - 88060100 | $76.13 | Special order, ships in 7-14 days | |
| 1 | 87765000 | Ferrari LH Door Perimeter Seal - 87765000 | $1,049.07 | Special order, ships in 7-14 days |
| 1 | 87765100 | Ferrari RH Door Perimeter Seal - 87765100 | $1,049.07 | Special order, ships in 7-14 days |
| 2 | 88059500 | Ferrari External LH Window Scraper S - 88059500 | $633.80 | Special order, ships in 7-14 days |
| 2 | 88059600 | Ferrari External RH Window Scraper S - 88059600 | $633.80 | Special order, ships in 7-14 days |
| 3 | 890463 | Ferrari Internal LH Window Scraper S - 890463 | $502.67 | Special order, ships in 7-14 days |
| 3 | 890461 | Ferrari Internal RH Window Scraper S - 890461 | $502.67 | Special order, ships in 7-14 days |
| 4 | 899838 | Ferrari LH Door Jamb Shield - 899838 | $39.31 | Special order, ships in 7-14 days |
| 4 | 899840 | Ferrari RH Door Jamb Shield - 899840 | $39.31 | Special order, ships in 7-14 days |
| 5 | 980543 | Ferrari Guarnizione Nodo H Dx - 980543 | $76.47 | Special order, ships in 7-14 days |
| 5 | 980528 | Ferrari Guarnizione Nodo H Sx - 980528 | $76.47 | Special order, ships in 7-14 days |
| 6 | 83370400 | Ferrari Lower Door Perimeter Seal - 83370400 | $216.35 | Special order, ships in 7-14 days |
| 7 | 89386300 | Ferrari Seal Bushing - 89386300 | $3.41 | Special order, ships in 7-14 days |
| 8 | 85058100 | Ferrari Safety Hook Cover - 85058100 | $26.20 | Special order, ships in 7-14 days |
| 9 | 824899 | Ferrari Stuffer L=60 Per Guarnizione - 824899 | $4.12 | Special order, ships in 7-14 days |
| 10 | 14115885 | Ferrari Fixing Block - 14115885 | $0.31 | Available, ships in 3-6 days |
| 11 | 826584 | Ferrari Screw - 826584 | $1.49 | Available, ships in 3-6 days |
| 12 | 15689809 | Ferrari Screw D. 4.2 x 19 TBFIC - 15689809 | $0.27 | Available, ships in 3-6 days |
| 13 | 85833800 | Ferrari Screw M5 x 14 TBFTX - 85833800 | $0.90 | Available, ships in 3-6 days |
| 14 | 61148700 | Ferrari WASHER - 61148700 | Superseded | Order 12643724 instead |
| 14 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 15 | 65841100 | Ferrari Black Foam Washer - Self Adhesive - 65841100 | $2.13 | Available, ships in 3-6 days |
| 16 | 80874800 | Ferrari Clip - 80874800 | $6.54 | Available, ships in 3-6 days |
