Ferrari 812 Competizione — [VEHICLE TRIM] - E.36 - REAR LID TRIM (diagram 0137)

Exploded view of the [vehicle trim] - e.36 - rear lid trim on the Ferrari 812 Competizione, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

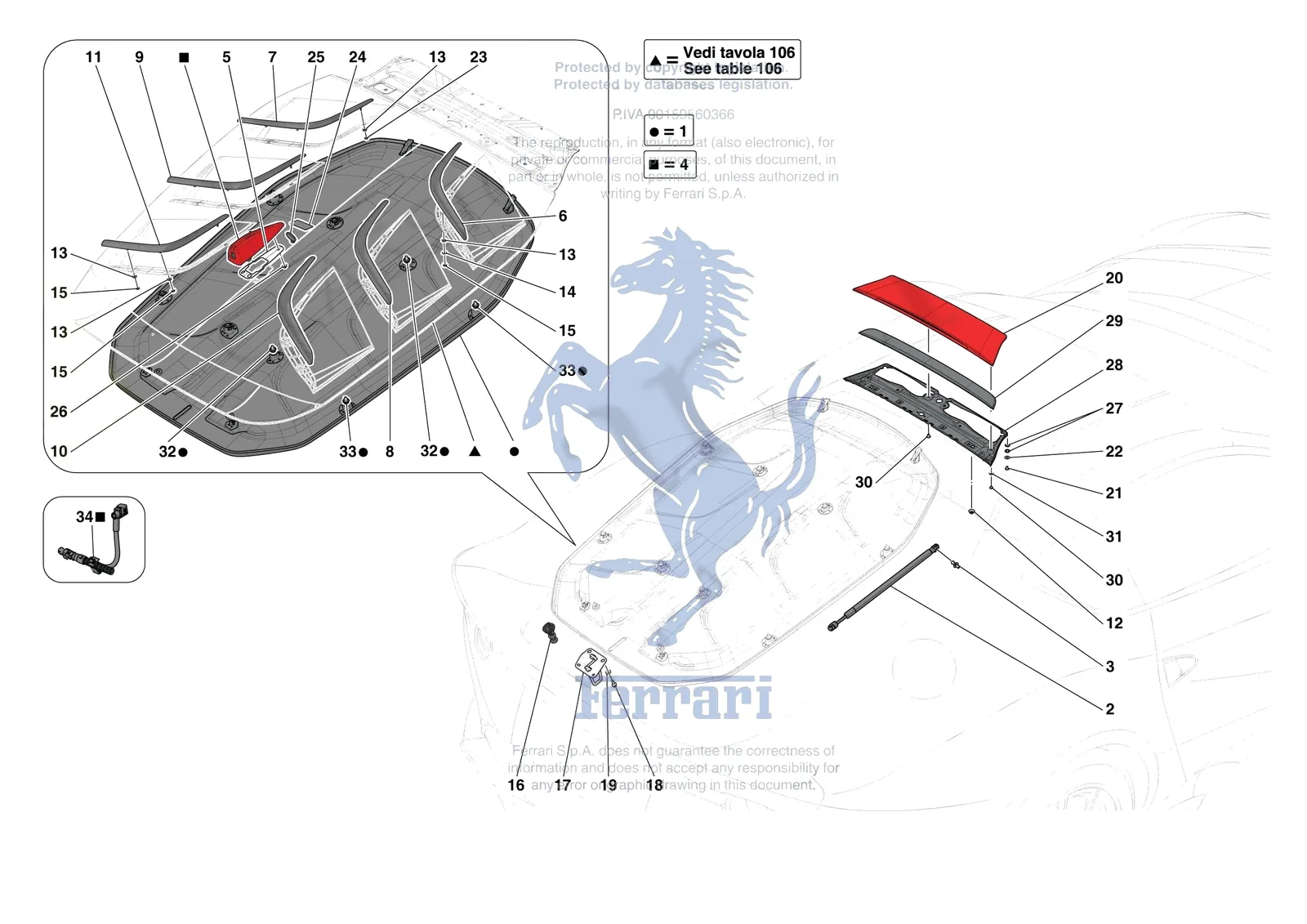

Ferrari 812 Competizione [VEHICLE TRIM] - E.36 - REAR LID TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
63402800Ferrari Ball Pin - 63402800SupersededOrder 85216400 instead
69205900Ferrari Ball Pin - 69205900SupersededOrder 85216400 instead
84533500Ferrari Ceramic Washer - 84533500SupersededOrder 85430300 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
64577200Ferrari Pin - 64577200SupersededOrder 85216400 instead
65939900Ferrari Pin - 65939900SupersededOrder 85216400 instead
170007476Ferrari Rear Lid Trim - 70007476$32,653.76Contact us to order
1800811Ferrari Rear Lid Trim - 800811$14,909.77Contact us to order
1800812Ferrari Rear Lid Trim - 800812$15,506.89Contact us to order
2805724Ferrari Spring - 805724$83.03Special order, ships in 7-14 days
385216400Ferrari Pin - 85216400$2.98In stock
4985802094Ferrari Rear Camera Bezel - 985802094$4,866.09Special order, ships in 7-14 days
5772708Ferrari Camera Reinforcement - 772708$27.03Special order, ships in 7-14 days
670007477Ferrari RH UPPER WINGLET - 70007477Price on requestContact us for price and availability
6749804Ferrari RH Upper Winglet - 749804$1,868.67Special order, ships in 7-14 days
6825200Ferrari RH Upper Winglet - 825200$1,745.74Special order, ships in 7-14 days
770007478Ferrari LH UPPER WINGLET - 70007478Price on requestContact us for price and availability
7749808Ferrari LH Upper Winglet - 749808$1,868.67Special order, ships in 7-14 days
7825205Ferrari LH Upper Winglet - 825205$1,770.31Special order, ships in 7-14 days
870007479Ferrari RH CENTRAL WINGLET - 70007479Price on requestContact us for price and availability
8749810Ferrari RH Central Winglet - 749810$1,868.67Special order, ships in 7-14 days
8825213Ferrari RH Central Winglet - 825213$1,745.74Special order, ships in 7-14 days
970007480Ferrari LH CENTRAL WINGLET - 70007480Price on requestContact us for price and availability
9749818Ferrari LH Central Winglet - 749818$1,868.67Special order, ships in 7-14 days
9825211Ferrari LH Central Winglet - 825211$1,745.74Special order, ships in 7-14 days
1070007481Ferrari RH LOWER WINGLET - 70007481Price on requestContact us for price and availability
10749823Ferrari RH Lower Winglet - 749823$1,868.67Special order, ships in 7-14 days
10825215Ferrari RH Lower Winglet - 825215$1,745.74Special order, ships in 7-14 days
1170007482Ferrari LH LOWER WINGLET - 70007482Price on requestContact us for price and availability
11749943Ferrari LH Lower Winglet - 749943$1,868.67Special order, ships in 7-14 days
11825214Ferrari LH Lower Winglet - 825214$1,745.74Special order, ships in 7-14 days
1214039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
12911976Ferrari Wide Flange Hex Nut - 911976$24.02Special order, ships in 7-14 days
1385277500Ferrari Ceramic Washer 12x5.2x1 - 85277500$3.91Special order, ships in 7-14 days
1360995100Ferrari Washer - 60995100$5.44Available, ships in 3-6 days
1414497704Ferrari Washer - 14497704$1.30Special order, ships in 7-14 days
15813608Ferrari Nut - 813608$2.82Special order, ships in 7-14 days
16856582Ferrari Spacer Block - 856582$125.37Available, ships in 3-6 days
17840355Ferrari Compl. Lock Striker - 840355$90.95Special order, ships in 7-14 days
17907509Ferrari Compl. Lock Striker - 907509SupersededOrder 840355 instead
1816286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
20985811818Ferrari Compl. Third Brake Light Bez - 985811818$5,165.82Special order, ships in 7-14 days
2185691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
2214447078Ferrari Washer D. 5.5 - 15 x 1 - 14447078$0.54Special order, ships in 7-14 days
23789290Ferrari Nut - 789290$0.59Special order, ships in 7-14 days
24179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
25217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
2614059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
2785430300Ferrari Ceramic Washer - 85430300$8.05Special order, ships in 7-14 days
28811822Ferrari Compl. Third Brake Light Mou - 811822$3,927.05Special order, ships in 7-14 days
29279729Ferrari Third Stop Light - 279729$633.80Special order, ships in 7-14 days
3112638127Ferrari Screw - 12638127$1.49Special order, ships in 7-14 days
3266092400Ferrari Trim Clip - 66092400$0.25In stock
3382672700Ferrari Fixing Clip - 82672700$1.67Available, ships in 3-6 days
34893484Ferrari Spoiler Mirror Video Cable - 893484$130.29Special order, ships in 7-14 days
