Ferrari 812 Competizione — [VEHICLE TRIM] - E.45 - LUGGAGE COMPARTMENT MATS (diagram 0147)

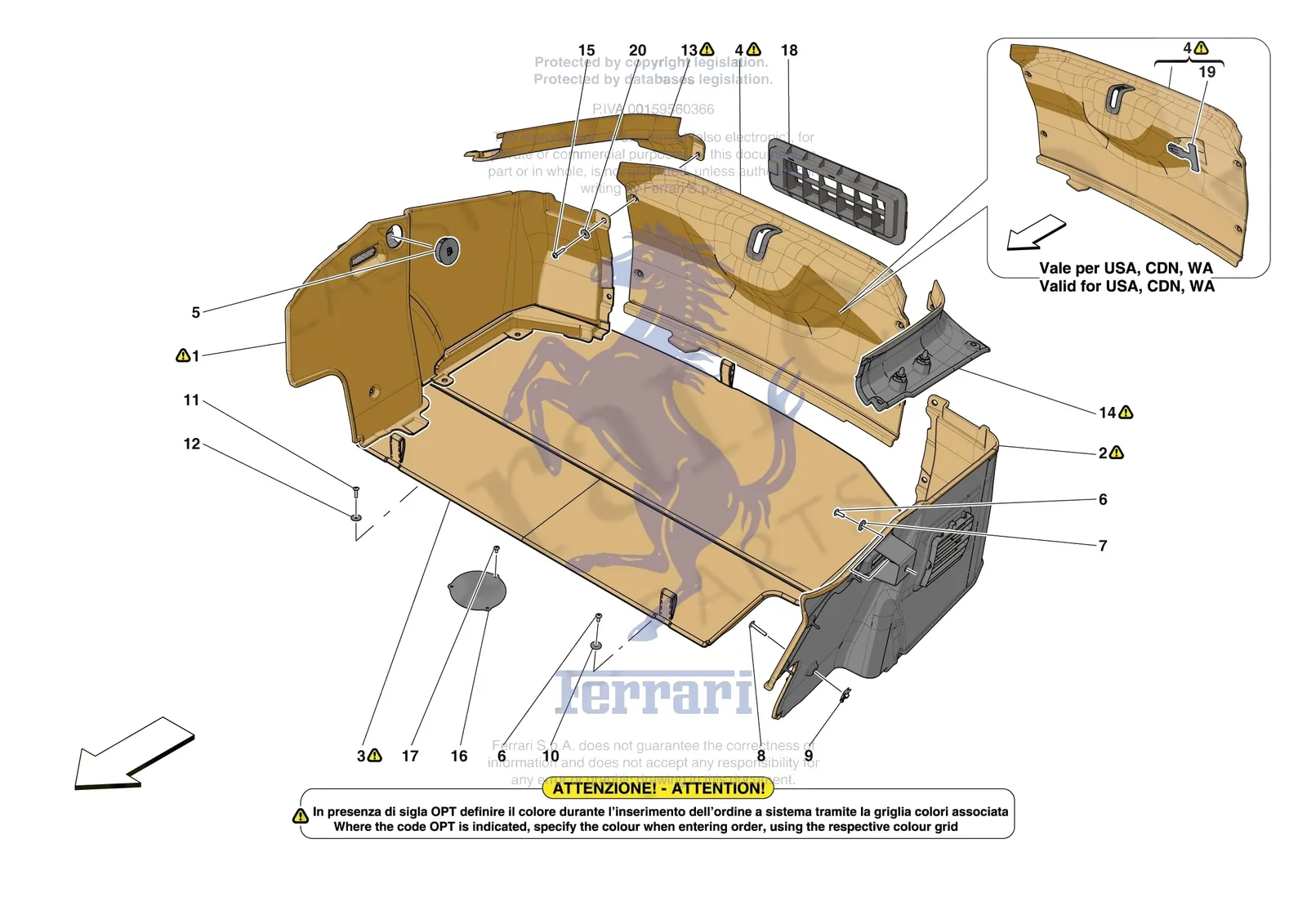

Exploded view of the [vehicle trim] - e.45 - luggage compartment mats on the Ferrari 812 Competizione, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [VEHICLE TRIM] - E.45 - LUGGAGE COMPARTMENT MATS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0147.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 192623 | Ferrari Screw - 192623 | $5.40 | Special order, ships in 7-14 days | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 12647729 | Ferrari Washer 6.45-21X - 12647729 | $0.13 | Special order, ships in 7-14 days | |
| 1 | 956926 | Ferrari Compl. RH Lateral Luggage Co - 956926 | $3,060.61 | Special order, ships in 7-14 days |
| 2 | 831380 | Ferrari Compl. LH Lateral Luggage Co - 831380 | $3,276.06 | Special order, ships in 7-14 days |
| 3 | 962453 | Ferrari Compl. Load Surface - 962453 | $4,128.45 | Special order, ships in 7-14 days |
| 3 | 971161 | Ferrari Compl. Load Surface - 971161 | $5,207.98 | Special order, ships in 7-14 days |
| 4 | 783276 | Ferrari SILL PROTECTOR COVER - 783276 | Price on request | Contact us for price and availability |
| 4 | 962414 | Ferrari Sill Protector Cover - 962414 | $3,013.78 | Special order, ships in 7-14 days |
| 5 | 918635 | Ferrari Luggage Compartment Cover - 918635 | $39.31 | Special order, ships in 7-14 days |
| 6 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 7 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 8 | 857722 | Ferrari Screw - 857722 | $15.05 | Special order, ships in 7-14 days |
| 9 | 66927700 | Ferrari Bracket with Collar - 66927700 | $1.99 | Available, ships in 3-6 days |
| 10 | 12647727 | Ferrari Washer 6X21 - 12647727 | $0.12 | Special order, ships in 7-14 days |
| 11 | 85692300 | Ferrari Screw M5 x 20 TBFTX - 85692300 | $0.65 | Available, ships in 3-6 days |
| 12 | 61148700 | Ferrari WASHER - 61148700 | Superseded | Order 12643724 instead |
| 12 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 13 | 957747 | Ferrari Compl. RH Channel Trim - 957747 | $1,327.73 | Special order, ships in 7-14 days |
| 14 | 956954 | Ferrari Compl. LH Channel Trim - 956954 | $1,327.73 | Special order, ships in 7-14 days |
| 15 | 85834100 | Ferrari Screw M5 x 30 TBFTX - 85834100 | $0.79 | Special order, ships in 7-14 days |
| 16 | 272640 | Ferrari Lift System Inspection Cover - 272640 | $73.73 | Special order, ships in 7-14 days |
| 17 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 18 | 84152010 | Ferrari Air Vent Box - 84152010 | $417.97 | Special order, ships in 7-14 days |
| 19 | 66403900 | Ferrari Emergency Trunk Release Handle - 66403900 | $74.00 | In stock |
