Ferrari 812 Competizione — [VEHICLE TRIM] - E.48 - CENTRE TUNNEL AND CONSOLE (diagram 0158)

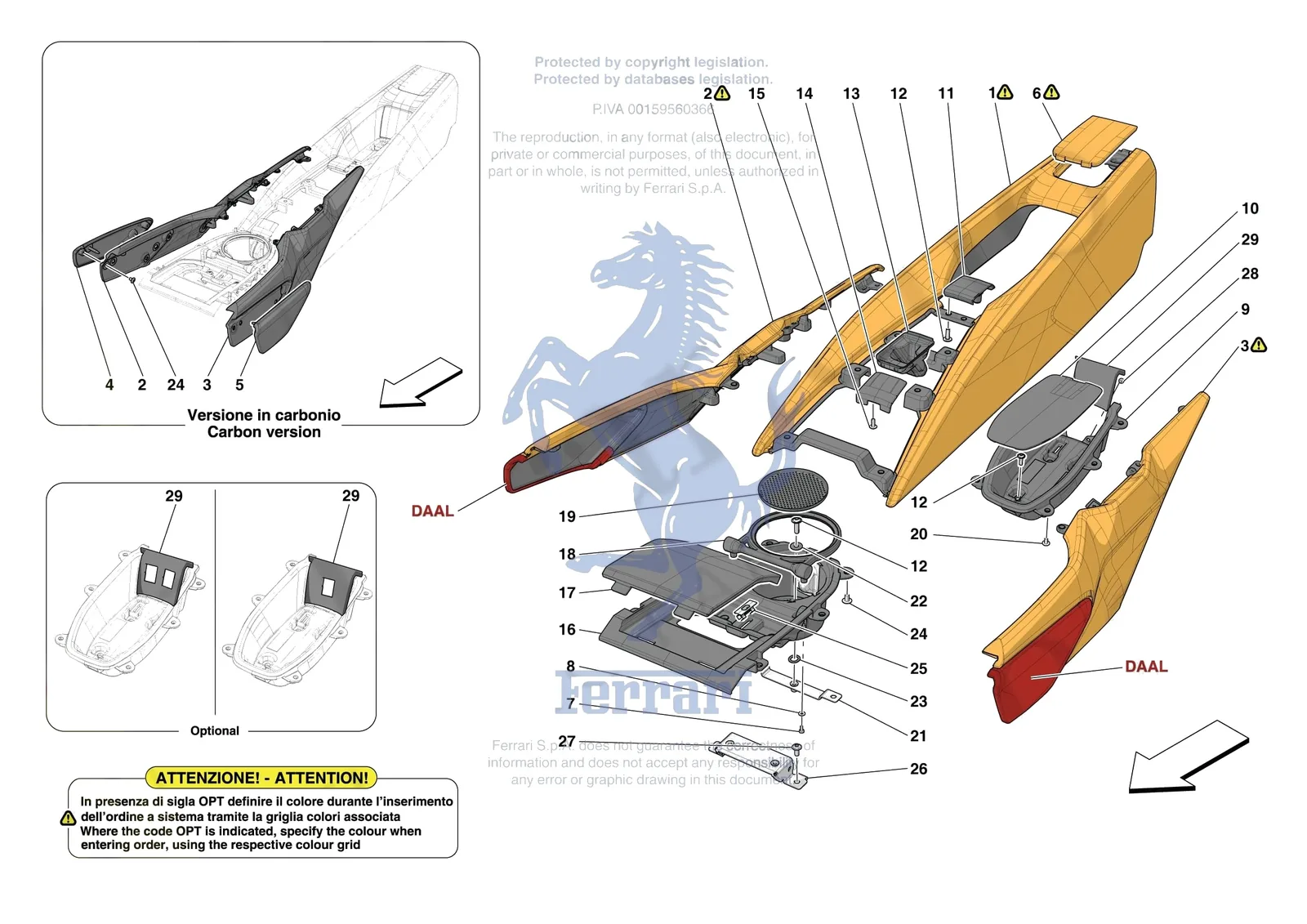

Exploded view of the [vehicle trim] - e.48 - centre tunnel and console on the Ferrari 812 Competizione, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [VEHICLE TRIM] - E.48 - CENTRE TUNNEL AND CONSOLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0158.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 84533500 | Ferrari Ceramic Washer - 84533500 | Superseded | Order 85430300 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 954066 | Ferrari Compl. Rear Centre Console U - 954066 | $1,721.15 | Special order, ships in 7-14 days |
| 1 | 70008097 | Ferrari COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE - 70008097 | Price on request | Contact us for price and availability |
| 1 | 770170 | Ferrari COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE - 770170 | Price on request | Contact us for price and availability |
| 2 | 960946 | Ferrari Compl. RH Front Tunnel Unit - 960946 | $3,250.30 | Special order, ships in 7-14 days |
| 2 | 770486 | Ferrari RH Front Centre Console Unit - 770486 | $4,472.68 | Special order, ships in 7-14 days |
| 2 | 967282 | Ferrari RH Front Centre Console Unit - 967282 | $4,215.08 | Special order, ships in 7-14 days |
| 2 | 70007539 | Ferrari RH UNIT STRUCTURE - 70007539 | Price on request | Contact us for price and availability |
| 3 | 960941 | Ferrari Compl. LH Front Tunnel Conso - 960941 | $3,250.30 | Special order, ships in 7-14 days |
| 3 | 770487 | Ferrari LH Front Centre Console Unit - 770487 | $4,472.68 | Special order, ships in 7-14 days |
| 3 | 967200 | Ferrari LH Front Centre Console Unit - 967200 | $4,215.08 | Special order, ships in 7-14 days |
| 3 | 70007540 | Ferrari LH UNIT STRUCTURE - 70007540 | Price on request | Contact us for price and availability |
| 4 | 967225 | Ferrari Compl. RH Front Tunnel Conso - 967225 | $909.73 | Special order, ships in 7-14 days |
| 5 | 964866 | Ferrari Compl. LH Front Tunnel Conso - 964866 | $909.73 | Special order, ships in 7-14 days |
| 6 | 70008098 | Ferrari COMPL. REAR CENTRE CONSOLE LID - 70008098 | $2,130.95 | Special order, ships in 7-14 days |
| 6 | 776422 | Ferrari DOOR - 776422 | Price on request | Contact us to order |
| 6 | 964834 | Ferrari Door - 964834 | $1,106.43 | Special order, ships in 7-14 days |
| 7 | 13270417 | Ferrari Screw 3x8 - 13270417 | $0.13 | Special order, ships in 7-14 days |
| 8 | 12639901 | Ferrari Washer - 12639901 | $0.17 | Available, ships in 3-6 days |
| 9 | 770142 | Ferrari Oddments Storage Bin - 770142 | $835.97 | Special order, ships in 7-14 days |
| 9 | 954162 | Ferrari ODDMENTS STORAGE BIN - 954162 | Price on request | Contact us for price and availability |
| 10 | 960924 | Ferrari Base Substructure - 960924 | $218.81 | Special order, ships in 7-14 days |
| 11 | 964845 | Ferrari Rear Centre Console Unit Mat - 964845 | $152.41 | Special order, ships in 7-14 days |
| 12 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 13 | 966333 | Ferrari Key Holder - 966333 | $83.57 | Special order, ships in 7-14 days |
| 14 | 964844 | Ferrari Front Centre Console Unit Ma - 964844 | $127.82 | Special order, ships in 7-14 days |
| 15 | 88822200 | Ferrari Screw 4 x 10 - 88822200 | $1.30 | Special order, ships in 7-14 days |
| 16 | 961081 | Ferrari Compl. Cup Holder - 961081 | $344.21 | Special order, ships in 7-14 days |
| 17 | 954067 | Ferrari Front Trim Panel Substructur - 954067 | $233.56 | Special order, ships in 7-14 days |
| 18 | 879820 | Ferrari Compl. Cup Holder Ring - 879820 | $393.38 | Special order, ships in 7-14 days |
| 19 | 813697 | Ferrari Fondello Cupholder - 813697 | $29.48 | Special order, ships in 7-14 days |
| 20 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 21 | 964840 | Ferrari Bracket - 964840 | $39.31 | Special order, ships in 7-14 days |
| 22 | 14447078 | Ferrari Washer D. 5.5 - 15 x 1 - 14447078 | $0.54 | Special order, ships in 7-14 days |
| 23 | 85430300 | Ferrari Ceramic Washer - 85430300 | $8.05 | Special order, ships in 7-14 days |
| 24 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
| 25 | 68700200 | Ferrari Fixing Clip - 68700200 | $10.68 | Special order, ships in 7-14 days |
| 26 | 954174 | Ferrari Bracket - 954174 | $103.25 | Special order, ships in 7-14 days |
| 27 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 29 | 769791 | Ferrari Mostrina Base - 769791 | $368.79 | Special order, ships in 7-14 days |
| 29 | 769610 | Ferrari Mostrina Carplay + Telemetri - 769610 | $393.38 | Special order, ships in 7-14 days |
| 29 | 769988 | Ferrari Mostrina Carplay E/O Telemet - 769988 | $393.38 | Special order, ships in 7-14 days |
