Ferrari 812 Competizione — [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM (diagram 0170)

Exploded view of the [vehicle trim] - e.57.02 - ac system - air conditioner system on the Ferrari 812 Competizione, with 78 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

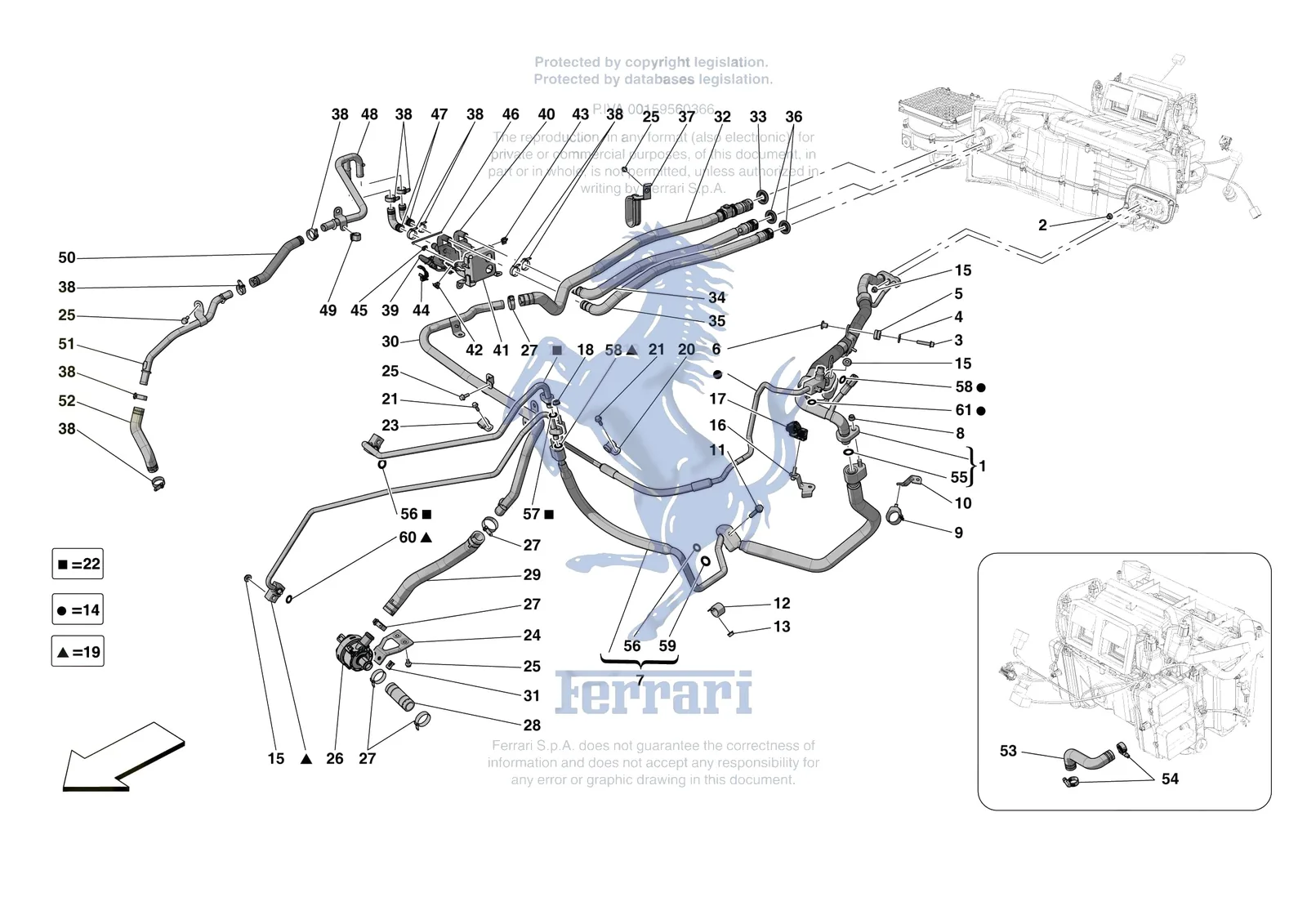

Ferrari 812 Competizione [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
16044021Ferrari Bolt - 16044021SupersededOrder 16044024 instead
206536Ferrari Clip D.14 - 206536$0.92Special order, ships in 7-14 days
262112Ferrari Collar - 262112SupersededOrder 262111 instead
13442484Ferrari Gasket - 13442484SupersededOrder 11342484 instead
14066017Ferrari Nut - 14066017$5.65Special order, ships in 7-14 days
64342800Ferrari Nut - 64342800SupersededOrder 177778 instead
133215Ferrari Nut Locking - 133215SupersededOrder 177778 instead
119631Ferrari Screw - 119631SupersededOrder 16044024 instead
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
10860270Ferrari Screw Collar - 10860270$1.94Available, ships in 3-6 days
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1331901Ferrari Compl. Ihx Gas Pipe - 331901$1,180.21Special order, ships in 7-14 days
214058419Ferrari Flanged Nut - 14058419$1.61Special order, ships in 7-14 days
3231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
412643724Ferrari/Maserati Washer - 12643724$0.20In stock
5103549Ferrari Grommet - 103549$2.80In stock
6149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
7336702Ferrari Gas Pipe From Ihx To Compres - 336702$983.50Special order, ships in 7-14 days
8177778Ferrari Nut Locking M8 x 7 - 177778$2.82Available, ships in 3-6 days
9225821Ferrari Clip - 225821$6.10Special order, ships in 7-14 days
10765072Ferrari Ac Pipe To Compressor Mounti - 765072$23.82Special order, ships in 7-14 days
1116044024Ferrari Bolt - 16044024$0.72In stock
1210441790Ferrari/Maserati P Clip Bracket - 10441790$1.80In stock
1314040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
14333909Ferrari Gas Pipe From Disconnector U - 333909$737.61Special order, ships in 7-14 days
1514066021Ferrari Nut - 14066021$5.86Special order, ships in 7-14 days
16329371Ferrari Ac Pipe To LH Diagonal Brace - 329371$49.14Special order, ships in 7-14 days
17298580Ferrari Clip - 298580$7.19Special order, ships in 7-14 days
1814040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
19328420Ferrari Pipe From Condenser To Disco - 328420$295.03Special order, ships in 7-14 days
2010441290Ferrari P Clip Bracket With Sheath 28mm D.10 - 10441290$1.02Available, ships in 3-6 days
2116285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
22328417Ferrari Pipe From Disconnector Union - 328417$295.03Special order, ships in 7-14 days
2310441390Ferrari P clip Bracket With Sheath D.12 - 10441390$1.02Available, ships in 3-6 days
24326221Ferrari Idle Speed Pump Mounting Bracket - 326221$49.14Special order, ships in 7-14 days
2516286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
26291349Ferrari Idle Water Recirculation Pump - 291349$5,509.80Special order, ships in 7-14 days
27262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
28260083Ferrari Connector Pipe - 260083$66.35Special order, ships in 7-14 days
29337857Ferrari Hose Union - 337857$71.28Special order, ships in 7-14 days
30337154Ferrari Rigid Pipe From Pump To Ac S - 337154$590.08Special order, ships in 7-14 days
3182268600Ferrari Clip - 82268600$4.12Special order, ships in 7-14 days
32329120Ferrari Compl. Pipe From Recirculati - 329120$238.47Special order, ships in 7-14 days
3381970900Ferrari Gasket - 81970900$15.98Special order, ships in 7-14 days
34329122Ferrari Compl. Pipe From Heater To F - 329122$172.10Special order, ships in 7-14 days
35329123Ferrari Compl. Pipe From Heater To R - 329123$177.00Special order, ships in 7-14 days
3681895900Ferrari Gasket - 81895900$14.62Special order, ships in 7-14 days
37341287Ferrari Tgk Pipe Mounting Bracket - 341287$56.52Special order, ships in 7-14 days
38262109Ferrari Screw Collar - 262109$2.01Available, ships in 3-6 days
3967635900Ferrari/Maserati Right TGK Valve - 67635900$359.75In stock
4067444900Ferrari LH TGK Valve - 67444900$368.79Available, ships in 3-6 days
41339274Ferrari Compl. Tgk Valve Bracket - 339274$194.22Special order, ships in 7-14 days
41772140Ferrari Compl. Tgk Valve Bracket - 772140$491.74Special order, ships in 7-14 days
42253769Ferrari Clip - 253769$1.17Special order, ships in 7-14 days
43252473Ferrari Clip - 252473$3.47Special order, ships in 7-14 days
44204777Ferrari Clip - 204777$1.34Available, ships in 3-6 days
4564215300Ferrari Door Rod Clip - 64215300$0.82Available, ships in 3-6 days
4667933600Ferrari Fixing Rod - 67933600$3.26Available, ships in 3-6 days
47292306Ferrari TGK Valve Outlet Union - 292306$63.90Available, ships in 3-6 days
48341613Ferrari Rigid Tgk Valve Outlet Pipe - 341613$295.03Special order, ships in 7-14 days
49198253Ferrari Clip - 198253$7.40Special order, ships in 7-14 days
50321365Ferrari Tgk Valve Outlet Union - 321365$71.28Special order, ships in 7-14 days
51337391Ferrari Rigid Pipe - 337391$393.38Special order, ships in 7-14 days
52949753Ferrari Hose - 949753$68.83Special order, ships in 7-14 days
5384536000Ferrari Drain Hose Connector - 84536000$22.60Special order, ships in 7-14 days
54161490Ferrari Hose Clip 12 - 20 x 9 - 161490$3.91Available, ships in 3-6 days
5511084384Ferrari Gasket - 11084384$20.51Special order, ships in 7-14 days
5611342584Ferrari Washer 1/2" - 11342584$19.42Available, ships in 3-6 days
5711084284Ferrari Gasket - 11084284$10.46Special order, ships in 7-14 days
5811084084Ferrari Gasket - 11084084$10.46Special order, ships in 7-14 days
5911342784Ferrari Washer 3/4" - 11342784$19.42Available, ships in 3-6 days
6011342484Ferrari Gasket - 11342484$10.46Special order, ships in 7-14 days
6114452884Ferrari Gasket - 14452884$34.94Special order, ships in 7-14 days

All 812 Competizione diagrams
