Ferrari 812 Competizione — [VEHICLE TRIM] - E.61 - BATTERY INSTALLATION (diagram 0174)

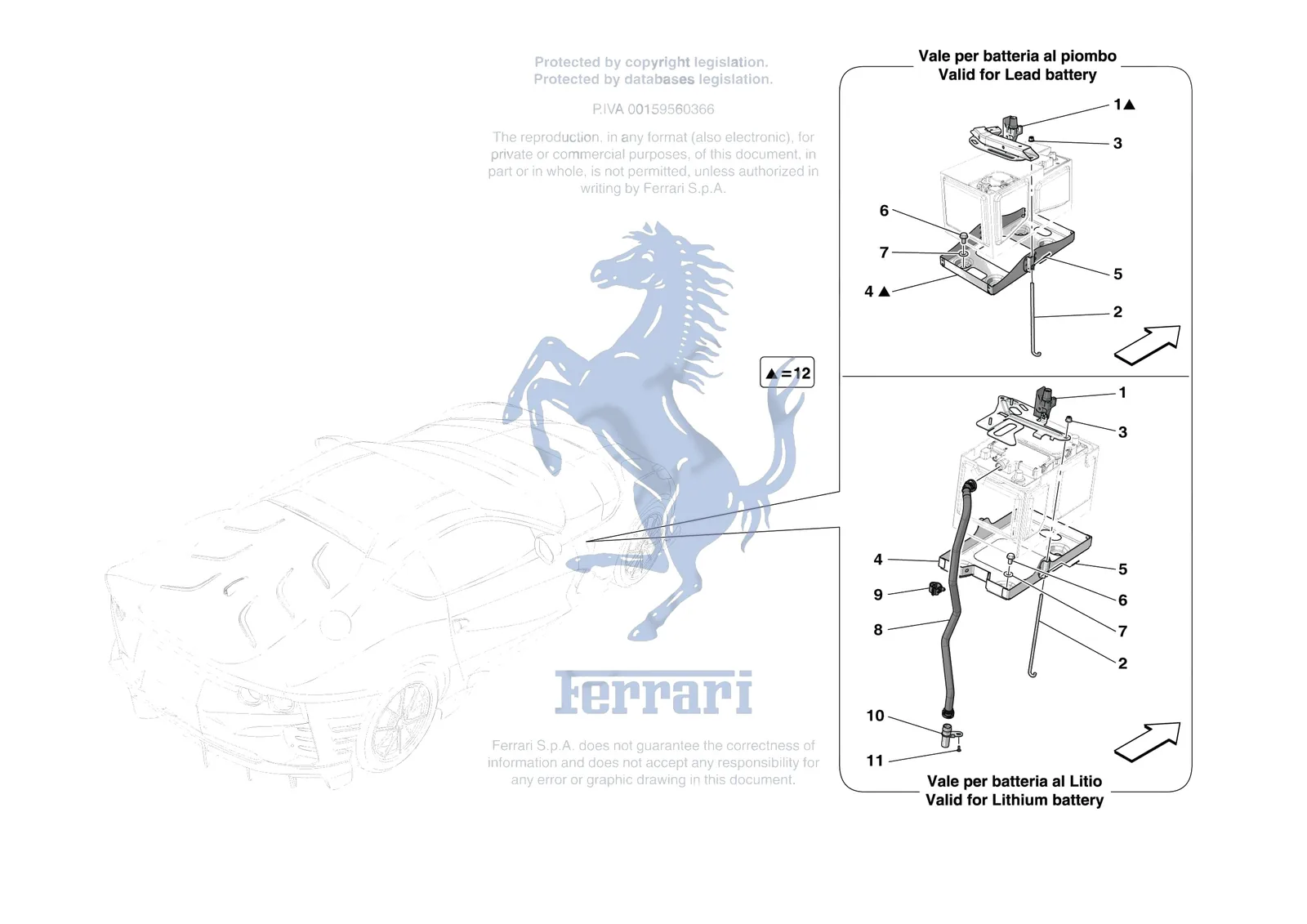

Exploded view of the [vehicle trim] - e.61 - battery installation on the Ferrari 812 Competizione, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [VEHICLE TRIM] - E.61 - BATTERY INSTALLATION exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0174.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 245743 | Ferrari Battery Tie Rod - 245743 | Superseded | Order 292882 instead | |
| 1 | 331908 | Ferrari Battery Retainer Compl. With - 331908 | $295.03 | Special order, ships in 7-14 days |
| 1 | 905918 | Ferrari BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL - 905918 | Price on request | Contact us for price and availability |
| 2 | 292882 | Ferrari Battery Tie Rod - 292882 | $27.03 | Special order, ships in 7-14 days |
| 3 | 228265 | Ferrari Nut 6x1x9 - 228265 | $0.40 | Available, ships in 3-6 days |
| 4 | 949505 | Ferrari Complete Battery Mounting - 949505 | $108.16 | Special order, ships in 7-14 days |
| 4 | 813420 | Ferrari Complete Lower Battery Plate - 813420 | $108.16 | Special order, ships in 7-14 days |
| 5 | 10795206 | Ferrari Split Pin - 10795206 | $0.13 | Special order, ships in 7-14 days |
| 6 | 16287024 | Ferrari Screw - 16287024 | $1.00 | In stock |
| 7 | 12625201 | Ferrari Washer - 12625201 | Superseded | Order 12625224 instead |
| 7 | 12625224 | Ferrari Washer - 12625224 | $0.13 | Available, ships in 3-6 days |
| 8 | 801615 | Ferrari Venting Pipe - 801615 | $221.26 | Special order, ships in 7-14 days |
| 8 | 808533 | Ferrari Venting Pipe - 808533 | $206.52 | Special order, ships in 7-14 days |
| 9 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
| 10 | 959535 | Ferrari Bracket With Flange For Vent - 959535 | $90.95 | Special order, ships in 7-14 days |
| 11 | 85833800 | Ferrari Screw M5 x 14 TBFTX - 85833800 | $0.90 | Available, ships in 3-6 days |
| 12 | 779108 | Ferrari Lead Battery Installation Ki - 779108 | $1,622.78 | Special order, ships in 7-14 days |
