Ferrari 812 Competizione — [ELECTRICAL SYSTEM] - F.1 - BATTERIES (diagram 0176)

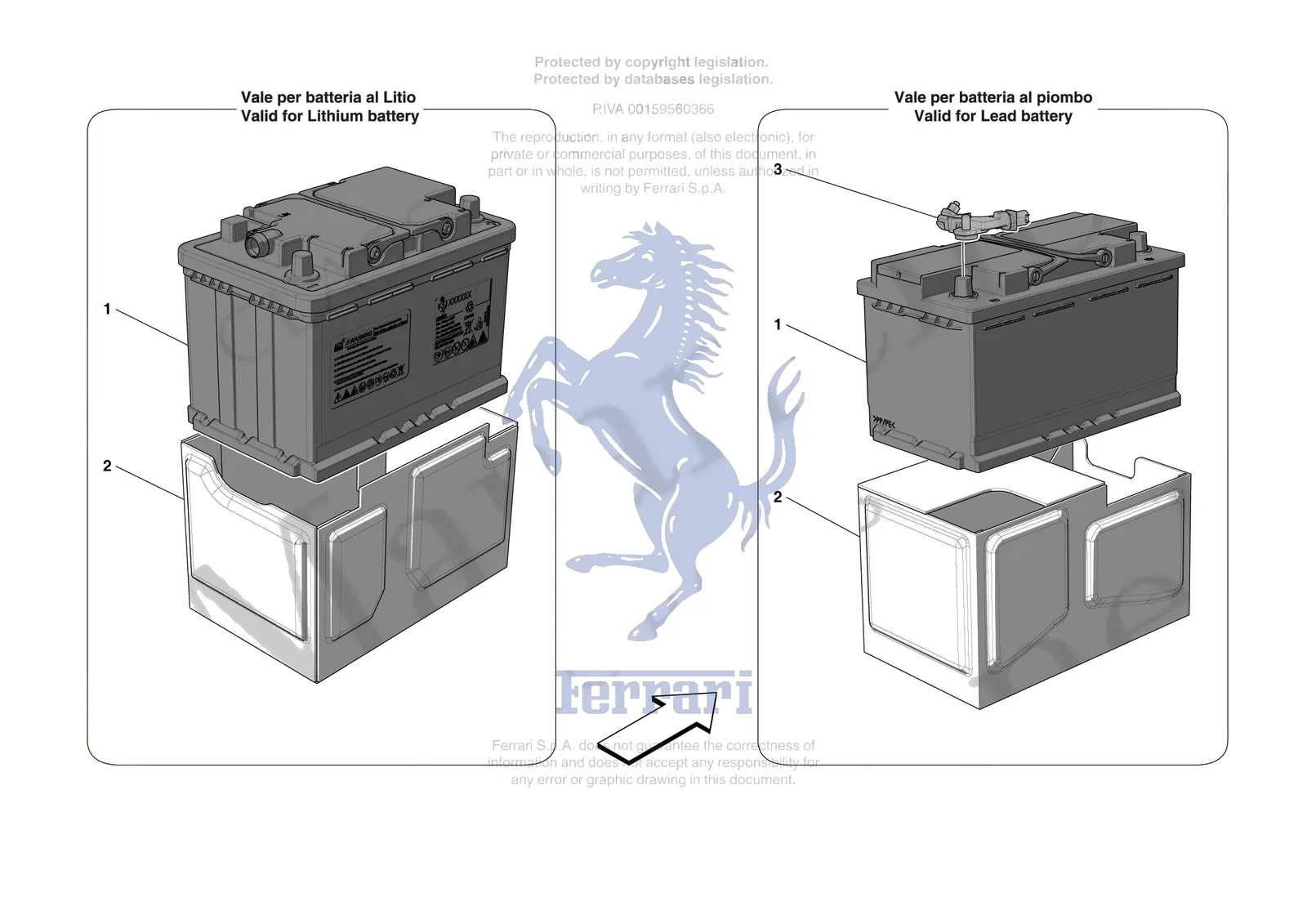

Exploded view of the [electrical system] - f.1 - batteries on the Ferrari 812 Competizione, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [ELECTRICAL SYSTEM] - F.1 - BATTERIES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0176.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 283032 | Ferrari 12V Battery - 283032 | Price on request | Contact us for price and availability | |
| 770192 | Ferrari Battery - 770192 | Superseded | Order 920813 instead | |
| 864805 | Ferrari Battery - 864805 | Superseded | Order 920813 instead | |
| 323568 | Ferrari Battery 12V - 323568 | $12,277.73 | Contact us to order | |
| 880763 | Ferrari Battery 12V - 880763 | Price on request | Contact us for price and availability | |
| 341861 | Ferrari Battery Sensor - 341861 | $240.39 | Special order, ships in 7-14 days | |
| 1 | 326782 | Ferrari Battery 80Ah - 326782 | $830.51 | Available, ships in 3-6 days |
| 1 | 920813 | Ferrari Lithium Battery - 920813 | $4,990.58 | Special order, ships in 7-14 days |
| 1 | 924669 | Ferrari Lithium Battery - 924669 | Price on request | Contact us for price and availability |
| 2 | 332493 | Ferrari Battery Heat Shield - 332493 | $295.03 | Special order, ships in 7-14 days |
| 2 | 840998 | Ferrari Lower Battery Heat Shield - 840998 | $295.03 | Special order, ships in 7-14 days |
| 3 | 798759 | Ferrari Battery Sensor - 798759 | $327.81 | Available, ships in 3-6 days |
