Ferrari 812 Competizione — [ELECTRICAL SYSTEM] - F.7 - LOW VOLTAGE WIRING HARNESSES (diagram 0182)

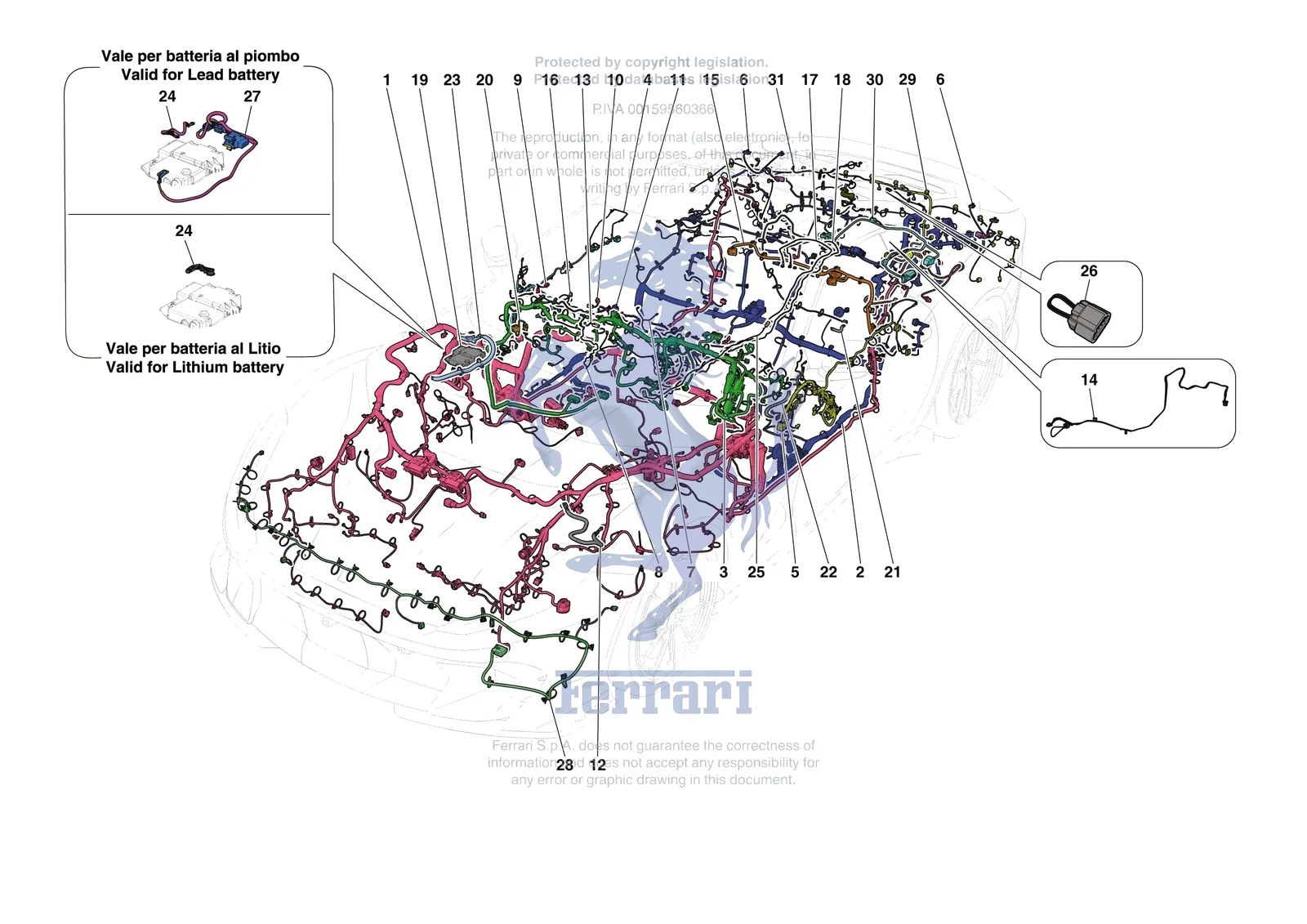

Exploded view of the [electrical system] - f.7 - low voltage wiring harnesses on the Ferrari 812 Competizione, with 140 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 812 Competizione [ELECTRICAL SYSTEM] - F.7 - LOW VOLTAGE WIRING HARNESSES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
302141Ferrari Earth Braid - 302141$453.25Available, ships in 3-6 days
251916Ferrari Ground Braid - 251916SupersededOrder 302142 instead
263190Ferrari Ground Braid - 263190SupersededOrder 302142 instead
296555Ferrari Ground Braid - 296555$97.88Special order, ships in 7-14 days
239085Ferrari Ground Braid For Nit Bose - 239085SupersededOrder 302142 instead
909564Ferrari Start Disable Wiring Harness - 909564SupersededOrder 982069 instead
1906741Ferrari Front Cable - 906741SupersededOrder 944075 instead
1906756Ferrari Front Cable - 906756SupersededOrder 944077 instead
1906765Ferrari Front Cable - 906765SupersededOrder 944078 instead
1906767Ferrari Front Cable - 906767SupersededOrder 944079 instead
1906968Ferrari Front Cable - 906968SupersededOrder 944117 instead
1906980Ferrari Front Cable - 906980SupersededOrder 944127 instead
1906981Ferrari Front Cable - 906981SupersededOrder 944128 instead
1906982Ferrari Front Cable - 906982SupersededOrder 944129 instead
1944075Ferrari Front Cable - 944075$10,275.49Contact us to order
1944077Ferrari Front Cable - 944077$10,308.27Contact us to order
1944078Ferrari Front Cable - 944078$10,453.45Contact us to order
1944079Ferrari Front Cable - 944079$10,437.05Contact us to order
1944117Ferrari Front Cable - 944117$10,380.85Contact us to order
1944127Ferrari Front Cable - 944127$10,528.38Contact us to order
1944128Ferrari Front Cable - 944128$10,397.24Contact us to order
1944129Ferrari Front Cable - 944129$10,535.41Contact us to order
2906781Ferrari Rear Cable - 906781SupersededOrder 944094 instead
2906782Ferrari Rear Cable - 906782SupersededOrder 944095 instead
2906783Ferrari Rear Cable - 906783SupersededOrder 944097 instead
2906784Ferrari Rear Cable - 906784SupersededOrder 944098 instead
2906785Ferrari Rear Cable - 906785SupersededOrder 944099 instead
2906786Ferrari Rear Cable - 906786SupersededOrder 944100 instead
2906787Ferrari Rear Cable - 906787SupersededOrder 944101 instead
2906788Ferrari Rear Cable - 906788SupersededOrder 944102 instead
2906789Ferrari Rear Cable - 906789SupersededOrder 944107 instead
2906790Ferrari Rear Cable - 906790SupersededOrder 944108 instead
2906791Ferrari Rear Cable - 906791SupersededOrder 944109 instead
2906792Ferrari Rear Cable - 906792SupersededOrder 944110 instead
2906810Ferrari Rear Cable - 906810SupersededOrder 944115 instead
2906985Ferrari Rear Cable - 906985SupersededOrder 944135 instead
2906986Ferrari Rear Cable - 906986SupersededOrder 944136 instead
2907032Ferrari Rear Cable - 907032SupersededOrder 944141 instead
2907053Ferrari Rear Cable - 907053SupersededOrder 944142 instead
2907113Ferrari Rear Cable - 907113SupersededOrder 944147 instead
2907114Ferrari Rear Cable - 907114SupersededOrder 944148 instead
2907115Ferrari Rear Cable - 907115SupersededOrder 944149 instead
2907116Ferrari Rear Cable - 907116SupersededOrder 944150 instead
2907143Ferrari Rear Cable - 907143SupersededOrder 944155 instead
2907144Ferrari Rear Cable - 907144SupersededOrder 944156 instead
2907145Ferrari Rear Cable - 907145SupersededOrder 944162 instead
2907146Ferrari Rear Cable - 907146SupersededOrder 944163 instead
2907147Ferrari Rear Cable - 907147SupersededOrder 944164 instead
2944094Ferrari Rear Cable - 944094$6,531.05Special order, ships in 7-14 days
2944095Ferrari Rear Cable - 944095$7,819.01Special order, ships in 7-14 days
2944097Ferrari Rear Cable - 944097$7,858.81Special order, ships in 7-14 days
2944098Ferrari Rear Cable - 944098$8,203.04Special order, ships in 7-14 days
2944099Ferrari Rear Cable - 944099$7,308.51Special order, ships in 7-14 days
2944100Ferrari Rear Cable - 944100$7,652.74Special order, ships in 7-14 days
2944101Ferrari Rear Cable - 944101$7,278.06Special order, ships in 7-14 days
2944102Ferrari Rear Cable - 944102$7,828.38Special order, ships in 7-14 days
2944107Ferrari Rear Cable - 944107$8,172.61Special order, ships in 7-14 days
2944108Ferrari Rear Cable - 944108$7,622.31Special order, ships in 7-14 days
2944109Ferrari Rear Cable - 944109$6,730.11Special order, ships in 7-14 days
2944110Ferrari Rear Cable - 944110$6,577.89Special order, ships in 7-14 days
2944115Ferrari Rear Cable - 944115$6,781.62Special order, ships in 7-14 days
2944135Ferrari Rear Cable - 944135$6,533.41Special order, ships in 7-14 days
2944136Ferrari Rear Cable - 944136$6,629.40Special order, ships in 7-14 days
2944141Ferrari Rear Cable - 944141$6,526.38Special order, ships in 7-14 days
2944142Ferrari Rear Cable - 944142$6,662.19Special order, ships in 7-14 days
2944147Ferrari Rear Cable - 944147$7,470.09Special order, ships in 7-14 days
2944148Ferrari Rear Cable - 944148$7,804.96Special order, ships in 7-14 days
2944149Ferrari Rear Cable - 944149$8,135.14Special order, ships in 7-14 days
2944150Ferrari Rear Cable - 944150$7,228.88Special order, ships in 7-14 days
2944155Ferrari Rear Cable - 944155$7,568.44Special order, ships in 7-14 days
2944156Ferrari Rear Cable - 944156$7,214.84Special order, ships in 7-14 days
2944162Ferrari Rear Cable - 944162$7,783.88Special order, ships in 7-14 days
2944163Ferrari Rear Cable - 944163$8,107.04Special order, ships in 7-14 days
2944164Ferrari Rear Cable - 944164$7,540.33Special order, ships in 7-14 days
3892300Ferrari DASHBOARD CABLE - 892300Price on requestContact us for price and availability
3892301Ferrari DASHBOARD CABLE - 892301Price on requestContact us for price and availability
3892307Ferrari DASHBOARD CABLE - 892307Price on requestContact us for price and availability
3892461Ferrari DASHBOARD CABLE - 892461Price on requestContact us for price and availability
3892462Ferrari Dashboard Cable - 892462$1,967.03Special order, ships in 7-14 days
3892463Ferrari DASHBOARD CABLE - 892463Price on requestContact us for price and availability
3906815Ferrari Dashboard Cable - 906815$1,844.08Special order, ships in 7-14 days
3906833Ferrari Dashboard Cable - 906833$1,826.53Special order, ships in 7-14 days
3906842Ferrari Dashboard Cable - 906842$1,873.35Special order, ships in 7-14 days
3906844Ferrari Dashboard Cable - 906844$1,920.19Special order, ships in 7-14 days
3906845Ferrari DASHBOARD CABLE - 906845Price on requestContact us for price and availability
3906846Ferrari DASHBOARD CABLE - 906846Price on requestContact us for price and availability
3906855Ferrari Dashboard Cable - 906855$2,248.03Special order, ships in 7-14 days
3907150Ferrari DASHBOARD CABLE - 907150Price on requestContact us for price and availability
3907151Ferrari DASHBOARD CABLE - 907151Price on requestContact us for price and availability
3907233Ferrari Dashboard Cable - 907233$2,013.87Special order, ships in 7-14 days
3907250Ferrari DASHBOARD CABLE - 907250Price on requestContact us for price and availability
4906890Ferrari Passenger Side Door Cable - 906890$442.56Special order, ships in 7-14 days
4906891Ferrari Passenger Side Door Cable - 906891$491.74Special order, ships in 7-14 days
4906892Ferrari Passenger Side Door Cable - 906892$467.15Special order, ships in 7-14 days
4920382Ferrari PASSENGER SIDE DOOR CABLE - 920382Price on requestContact us for price and availability
4920383Ferrari Passenger Side Door Cable - 920383$516.33Special order, ships in 7-14 days
4920385Ferrari PASSENGER SIDE DOOR CABLE - 920385Price on requestContact us for price and availability
5906886Ferrari Driver Side Door Cable - 906886$516.33Special order, ships in 7-14 days
5906887Ferrari Driver Side Door Cable - 906887$590.08Special order, ships in 7-14 days
5906888Ferrari Driver Side Door Cable - 906888$565.49Special order, ships in 7-14 days
5920378Ferrari DRIVER SIDE DOOR CABLE - 920378Price on requestContact us for price and availability
5920379Ferrari Driver Side Door Cable - 920379$590.08Special order, ships in 7-14 days
5920380Ferrari DRIVER SIDE DOOR CABLE - 920380Price on requestContact us for price and availability
6983303Ferrari Tail Light Wiring Harness - 983303$86.04Special order, ships in 7-14 days
7334561Ferrari Ac Vent Wiring Harness - 334561$36.86Special order, ships in 7-14 days
8786406Ferrari Glove Compartment Wiring Har - 786406$78.66Special order, ships in 7-14 days
9338061Ferrari Cruise Control Wiring Harnes - 338061$31.93Special order, ships in 7-14 days
10334560Ferrari Passenger Display Wiring Har - 334560$41.76Special order, ships in 7-14 days
11333573Ferrari Hi-Fi Dashboard Wiring Harne - 333573$147.51Special order, ships in 7-14 days
11342214Ferrari Hi-Fi Dashboard Wiring Harne - 342214$76.19Special order, ships in 7-14 days
12276837Ferrari Engine Ground - Chassis Ground Connector Braid - 276837$172.10Special order, ships in 7-14 days
13325672Ferrari Passenger Airbag Cable - 325672$142.58Special order, ships in 7-14 days
14906884Ferrari Hi-Fi Surround Cable - 906884$467.15Special order, ships in 7-14 days
15292591Ferrari Tank Cable - 292591$233.91Special order, ships in 7-14 days
16327341Ferrari Lvds Ndp-Nqs Video Cable - 327341$467.15Special order, ships in 7-14 days
17335899Ferrari Lvds Nit-Ndp Video Cable - 335899$467.15Special order, ships in 7-14 days
18335900Ferrari Lvds Nit-Nqs Video Cable - 335900$467.15Special order, ships in 7-14 days
19330703Ferrari Compl. Battery Ecu - 330703$238.47Special order, ships in 7-14 days
20982069Ferrari Start Disable Wiring Harness - 982069$58.98Special order, ships in 7-14 days
21302142Ferrari Earth Braid - 302142$76.19Special order, ships in 7-14 days
21233247Ferrari Ground Braid - 233247$154.89Special order, ships in 7-14 days
22281052Ferrari Ground Braid - 281052$213.88Special order, ships in 7-14 days
23808815Ferrari False Battery Terminal-Chass - 808815$162.25Special order, ships in 7-14 days
23808807Ferrari False Battery Terminal-Chassis Cable - 808807$177.00Special order, ships in 7-14 days
24808813Ferrari Battery Negative-False Terminal Cable - 808813$162.25Special order, ships in 7-14 days
24278419Ferrari Ground Cable From Sensor To False Pole - 278419$66.35Special order, ships in 7-14 days
25329938Ferrari Wi-Fi Antenna Extension - 329938$95.87Special order, ships in 7-14 days
26806139Ferrari Plug - 806139$71.28Special order, ships in 7-14 days
27947850Ferrari Battery Wiring Harness - 947850$110.61Special order, ships in 7-14 days
28748467Ferrari Front Bumper Cable - 748467$319.62Special order, ships in 7-14 days
28748468Ferrari FRONT BUMPER CABLE - 748468$232.51Special order, ships in 7-14 days
28906859Ferrari FRONT BUMPER CABLE - 906859Price on requestContact us for price and availability
28906868Ferrari Front Bumper Cable - 906868$368.79Special order, ships in 7-14 days
29748469Ferrari REAR BUMPER CABLE - 748469Price on requestContact us for price and availability
29748470Ferrari Rear Bumper Cable - 748470$467.15Special order, ships in 7-14 days
29906878Ferrari REAR BUMPER CABLE - 906878Price on requestContact us for price and availability
29906883Ferrari Rear Bumper Cable - 906883$467.15Special order, ships in 7-14 days
30906896Ferrari Tpms Cable - 906896$240.94Special order, ships in 7-14 days
30906897Ferrari Tpms/Lift System Cable - 906897$639.27Special order, ships in 7-14 days
31906893Ferrari Tailgate Cable - 906893$344.21Special order, ships in 7-14 days
