Ferrari 812 Competizione — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari 812 Competizione, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

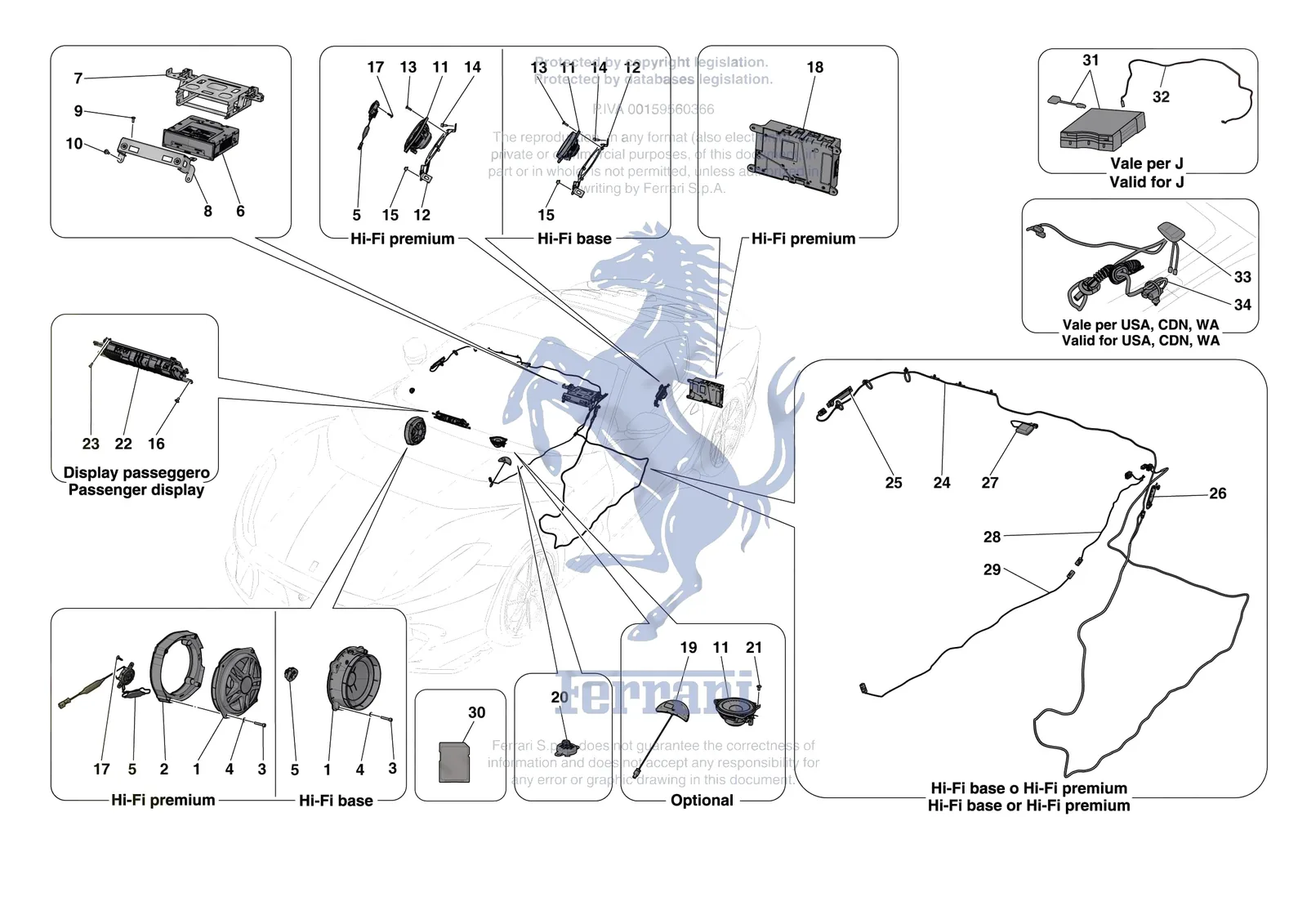

Ferrari 812 Competizione [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
321883Ferrari 12-Channel Amplifier - 321883SupersededOrder 339778 instead
242694Ferrari GPS Antenna - 242694Price on requestContact us for price and availability
331961Ferrari GPS Antenna - 331961$154.46Special order, ships in 7-14 days
931307432Ferrari Navigation System Gps Antenna - 931307432SupersededOrder 789209 instead
334587Ferrari Passenger Display - 334587SupersededOrder 343169 instead
342785Ferrari Passenger Display - 342785SupersededOrder 343169 instead
1328469Ferrari Woofer - 328469$1,289.48Special order, ships in 7-14 days
1334279Ferrari Woofer - 334279$183.56Special order, ships in 7-14 days
2260130Ferrari LH Woofer Adapter - 260130$44.24Special order, ships in 7-14 days
2260131Ferrari RH Woofer Adapter - 260131$44.24Special order, ships in 7-14 days
314304524Ferrari Screw - 14304524$0.86Available, ships in 3-6 days
412637801Ferrari Washer - 12637801$0.19Available, ships in 3-6 days
5251541Ferrari Tweeter - 251541$56.79Special order, ships in 7-14 days
5321882Ferrari Tweeter - 321882$131.10Special order, ships in 7-14 days
6335389Ferrari Nit - 335389$7,104.77Special order, ships in 7-14 days
6335390Ferrari Nit - 335390$9,214.68Special order, ships in 7-14 days
6335391Ferrari Nit - 335391$9,214.68Special order, ships in 7-14 days
7339006Ferrari Nit Mounting Bracket - 339006$417.97Special order, ships in 7-14 days
8339218Ferrari Compl. Luggage Retainer Lip - 339218$88.49Special order, ships in 7-14 days
985833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
1065377400Ferrari Screw M6 x 1 x 18 - 65377400$3.91Available, ships in 3-6 days
11269772Ferrari Twiddler - 269772$109.25Special order, ships in 7-14 days
11321880Ferrari Twiddler - 321880$327.81Special order, ships in 7-14 days
12325235Ferrari LH Twiddler Bracket - 325235$137.67Special order, ships in 7-14 days
12325698Ferrari LH Twiddler Bracket - 325698$152.41Special order, ships in 7-14 days
12325233Ferrari RH Twiddler Bracket - 325233$137.67Special order, ships in 7-14 days
12325697Ferrari RH Twiddler Bracket - 325697$152.41Special order, ships in 7-14 days
1363343400Ferrari Screw 4x15 - 63343400$5.02Available, ships in 3-6 days
1411566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
1514039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
1685692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
1762771900Ferrari Screw D. 4.2 x 16 TBIC - 62771900$0.54Available, ships in 3-6 days
18339778Ferrari 12-Channel Amplifier - 339778$8,849.36Special order, ships in 7-14 days
19286160Ferrari Bluetooth Antenna - 286160$961.65Special order, ships in 7-14 days
20223469Ferrari Buzzer For Parking Sensors - 223469$103.25Special order, ships in 7-14 days
22343169Ferrari Passenger Display - 343169$4,102.69Special order, ships in 7-14 days
2315687204Ferrari Screw 3.5x13 - 15687204$0.90Available, ships in 3-6 days
24763965Ferrari Radio Antenna Cable - 763965$491.74Special order, ships in 7-14 days
24788603Ferrari Radio Antenna Cable - 788603$417.97Special order, ships in 7-14 days
24789734Ferrari Radio Antenna Cable - 789734$516.33Special order, ships in 7-14 days
24983398Ferrari Radio Antenna Cable - 983398$565.49Special order, ships in 7-14 days
25771350Ferrari Fm2/Dab Amplifier - 771350$344.21Special order, ships in 7-14 days
25771351Ferrari FM2/DAB Amplifier - 771351$226.19Special order, ships in 7-14 days
25771352Ferrari Fm2/Dab Amplifier - 771352$270.44Special order, ships in 7-14 days
26331962Ferrari Am/Fm Amplifier - 331962$189.31Special order, ships in 7-14 days
26771349Ferrari Am/Fm Amplifier - 771349$240.94Special order, ships in 7-14 days
27789209Ferrari GPS Antenna - 789209$155.15Special order, ships in 7-14 days
28756965Ferrari Bt-Nit Antenna Cable - 756965$86.04Special order, ships in 7-14 days
29340933Ferrari Lv Antenna Extension Cable - 340933$76.19Special order, ships in 7-14 days
31867280Ferrari Dsrc Kit - 867280$4,362.61Special order, ships in 7-14 days
31887994Ferrari Dsrc Kit - 887994SupersededOrder 867280 instead
31336234Ferrari Dsrc/Vics Kit - 336234Price on requestContact us for price and availability
32338458Ferrari Dsrc/Hub Cable - 338458$1,032.68Special order, ships in 7-14 days
33326887Ferrari SDARS/GNSS COMBO ANTENNA - 326887Price on requestContact us for price and availability
34787466Ferrari Sdars Antenna Cable - 787466$319.62Special order, ships in 7-14 days

All 812 Competizione diagrams
