Ferrari 812 Competizione — [ELECTRICAL SYSTEM] - F.16 - ADAS (diagram 0191)

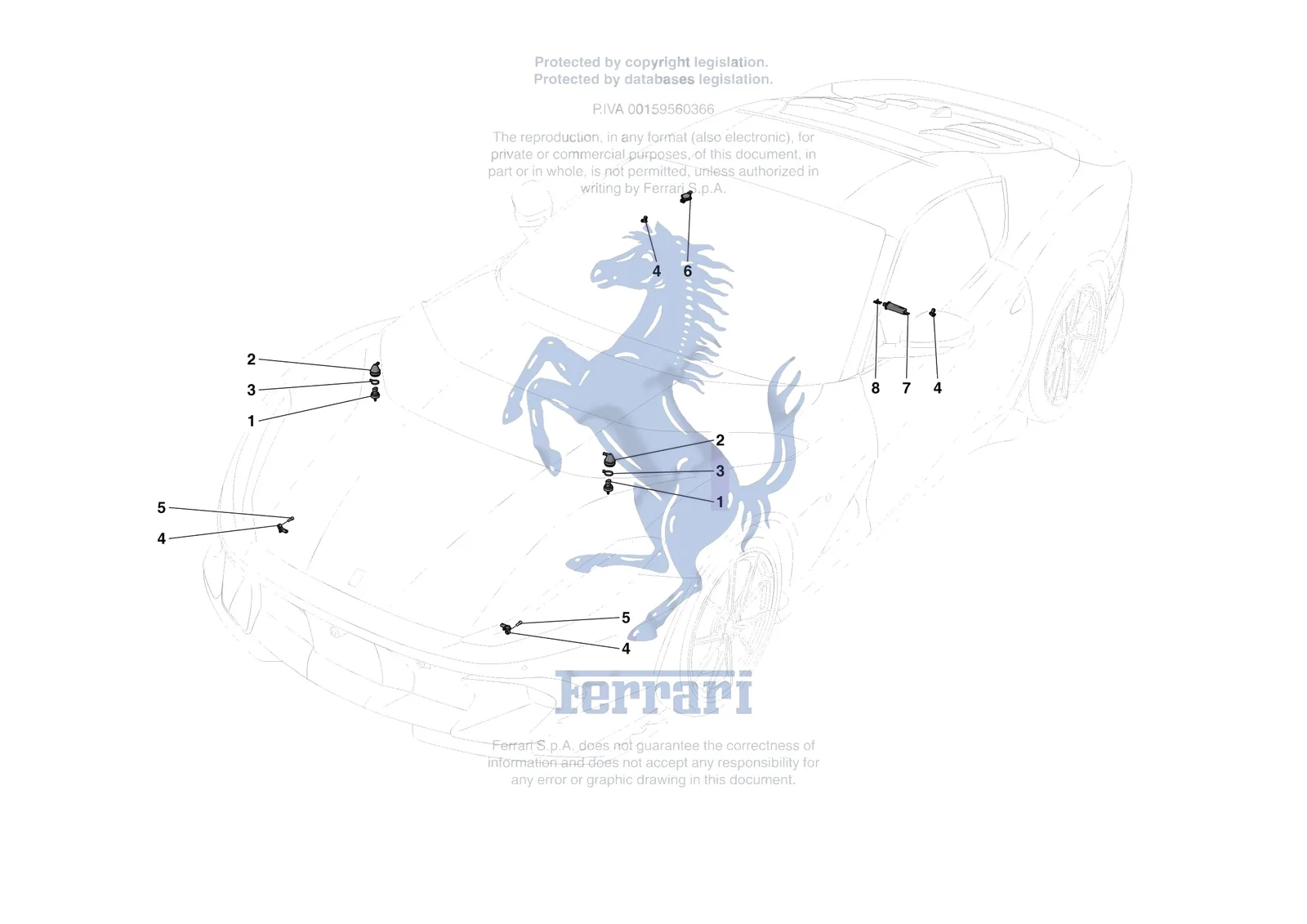

Exploded view of the [electrical system] - f.16 - adas on the Ferrari 812 Competizione, with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [ELECTRICAL SYSTEM] - F.16 - ADAS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0191.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 263079 | Ferrari Accelerator For Magneride System - 263079 | Superseded | Order 990305 instead |
| 1 | 990305 | Ferrari Accelerator For Magneride System - 990305 | $442.56 | Available, ships in 3-6 days |
| 2 | 788131 | Ferrari Accelerometer Guard Cover - 788131 | $16.45 | Special order, ships in 7-14 days |
| 3 | 206739 | Ferrari Tear Clip - 206739 | $16.37 | Available, ships in 3-6 days |
| 4 | 316177 | Ferrari Airbag Sensor - 316177 | $74.29 | Special order, ships in 7-14 days |
| 5 | 14305324 | Ferrari Screw M6 x 20mm - 14305324 | $0.17 | Available, ships in 3-6 days |
| 6 | 786808 | Ferrari Rain And Twilight Sensor - 786808 | $393.38 | Special order, ships in 7-14 days |
| 7 | 314815 | Ferrari Tpms ECU Antenna - 314815 | $983.50 | Special order, ships in 7-14 days |
| 7 | 314817 | Ferrari Tpms ECU Antenna - 314817 | $983.50 | Special order, ships in 7-14 days |
| 8 | 195646 | Ferrari Clip - 195646 | $2.82 | Available, ships in 3-6 days |
