Ferrari 812 CompetizioneA — [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS (diagram 0040)

Exploded view of the [gearbox] - c.01.01 - gearbox and fasteners on the Ferrari 812 CompetizioneA, with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

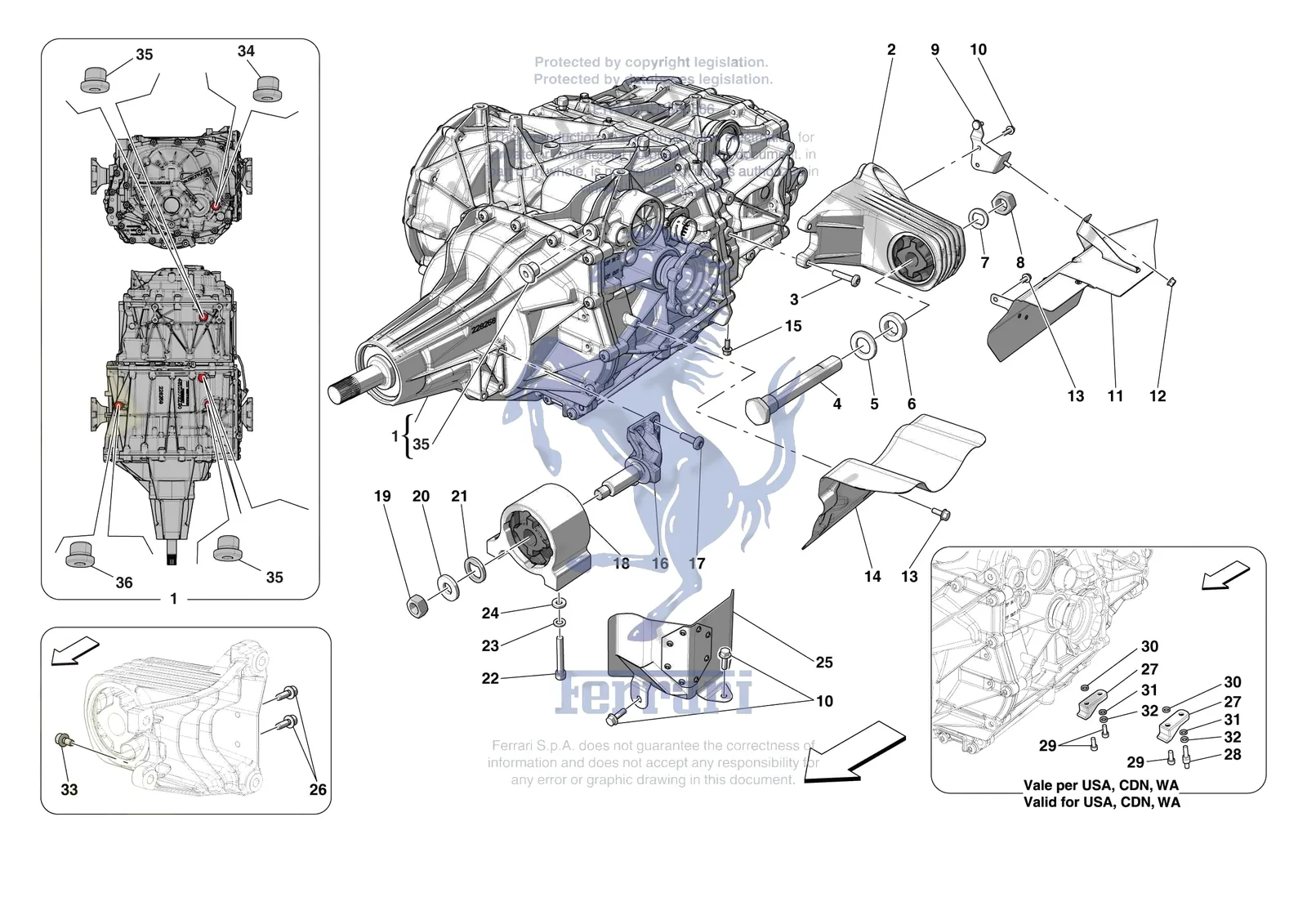

Ferrari 812 CompetizioneA [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
272275Ferrari LH Gearbox Heat Shield - 272275SupersededOrder 294603 instead
263679Ferrari Plug - 263679$174.55Special order, ships in 7-14 days
752490Ferrari Riparo Calore Semiasse - 752490$205.58Special order, ships in 7-14 days
13028774Ferrari Screw - 13028774SupersededOrder 14306474 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
10615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
10615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
10615679Ferrari Washer - 10615679SupersededOrder 12601374 instead
12601370Ferrari Washer - 12601370SupersededOrder 12601374 instead
12601379Ferrari Washer - 12601379SupersededOrder 12601374 instead
1956856Ferrari Compl. Dct Gearbox - 956856$51,783.10Contact us to order
2266364Ferrari LH Rear Strut Complete - 266364$660.87Available, ships in 3-6 days
2266362Ferrari RH Rear Strut Complete - 266362$639.27Special order, ships in 7-14 days
3247857Ferrari Screw 8x35 - 247857$4.12Available, ships in 3-6 days
4753432Ferrari Perno Tampone Supporto Cambi - 753432$167.17Special order, ships in 7-14 days
510731314Ferrari Washer - 10731314$3.03Available, ships in 3-6 days
6243122Ferrari Shim - 243122$11.56Special order, ships in 7-14 days
7331997Ferrari Anti Rotation Washer - 331997$4.56Available, ships in 3-6 days
812164424Ferrari Nut M22 x 1.5 x 18 - 12164424$10.46Available, ships in 3-6 days
9263583Ferrari Bracket - 263583$51.62Special order, ships in 7-14 days
1016286124Ferrari Screw M6x20 - 16286124$0.71Special order, ships in 7-14 days
11294603Ferrari LH Gearbox Heat Shield - 294603$319.62Special order, ships in 7-14 days
11272274Ferrari RH Gearbox Heat Shield - 272274$344.21Special order, ships in 7-14 days
1214040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
1316296924Ferrari Screw M6 x 14 TE - 16296924$0.54Available, ships in 3-6 days
14931307993Ferrari RH AXLe Shaft Heat Shield - 931307993$196.67Special order, ships in 7-14 days
14958190Ferrari Riparo Calore Semiasse - 958190$196.67Special order, ships in 7-14 days
15248471Ferrari Screw 8x20 - 248471$2.07Available, ships in 3-6 days
16301073Ferrari LH Front DCT Gearbox Strut - 301073$344.21Special order, ships in 7-14 days
16301074Ferrari RH Front DCT Gearbox Strut - 301074$344.21Special order, ships in 7-14 days
17247856Ferrari Screw TORX M8 x 1.25x 25 - 247856$3.68Available, ships in 3-6 days
18319482Ferrari Compl. LH Bushing Mount - 319482$565.49Special order, ships in 7-14 days
18319484Ferrari Compl. RH Bushing Mount - 319484$565.49Special order, ships in 7-14 days
1912164024Ferrari Nut M14 x 1.5 x 11 - 12164024$3.26Available, ships in 3-6 days
2012644924Ferrari Washer - 12644924$3.47Available, ships in 3-6 days
21300597Ferrari Anti Rotation Washer - 300597$29.48Available, ships in 3-6 days
2214302234Ferrari Screw M8 X 55 - 14302234$1.86Special order, ships in 7-14 days
2311198074Ferrari/Maserati Washer - 11198074$0.14In stock
2412654424Ferrari Washer - 12654424$0.98Available, ships in 3-6 days
25326174Ferrari LH Front Mount Heat Shield - 326174$194.22Special order, ships in 7-14 days
25326173Ferrari RH Front Mount Heat Shield - 326173$194.22Special order, ships in 7-14 days
26231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
27248689Ferrari Retention Bracket - 248689$95.87Special order, ships in 7-14 days
28266645Ferrari Stud Bolt M8x16 - 266645$29.48Special order, ships in 7-14 days
2914306474Ferrari Screw - 14306474$0.82Special order, ships in 7-14 days
3010730514Ferrari Plain Washer - 10730514SupersededOrder 10730521 instead
3112601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
3212638524Ferrari Flat Washer 8.15x15x1.5 - 12638524$0.12Available, ships in 3-6 days
33233600Ferrari/Maserati Screw - 233600$1.98In stock
3470005055Ferrari Gl5 Oil Level Cap - 70005055$88.49Special order, ships in 7-14 days
3570004679Ferrari Screw Plug - 70004679$36.86Available, ships in 3-6 days
3670005056Ferrari Atf Oil Level Cap - 70005056$27.03Special order, ships in 7-14 days

All 812 CompetizioneA diagrams
