Ferrari 812 CompetizioneA — [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES (diagram 0043)

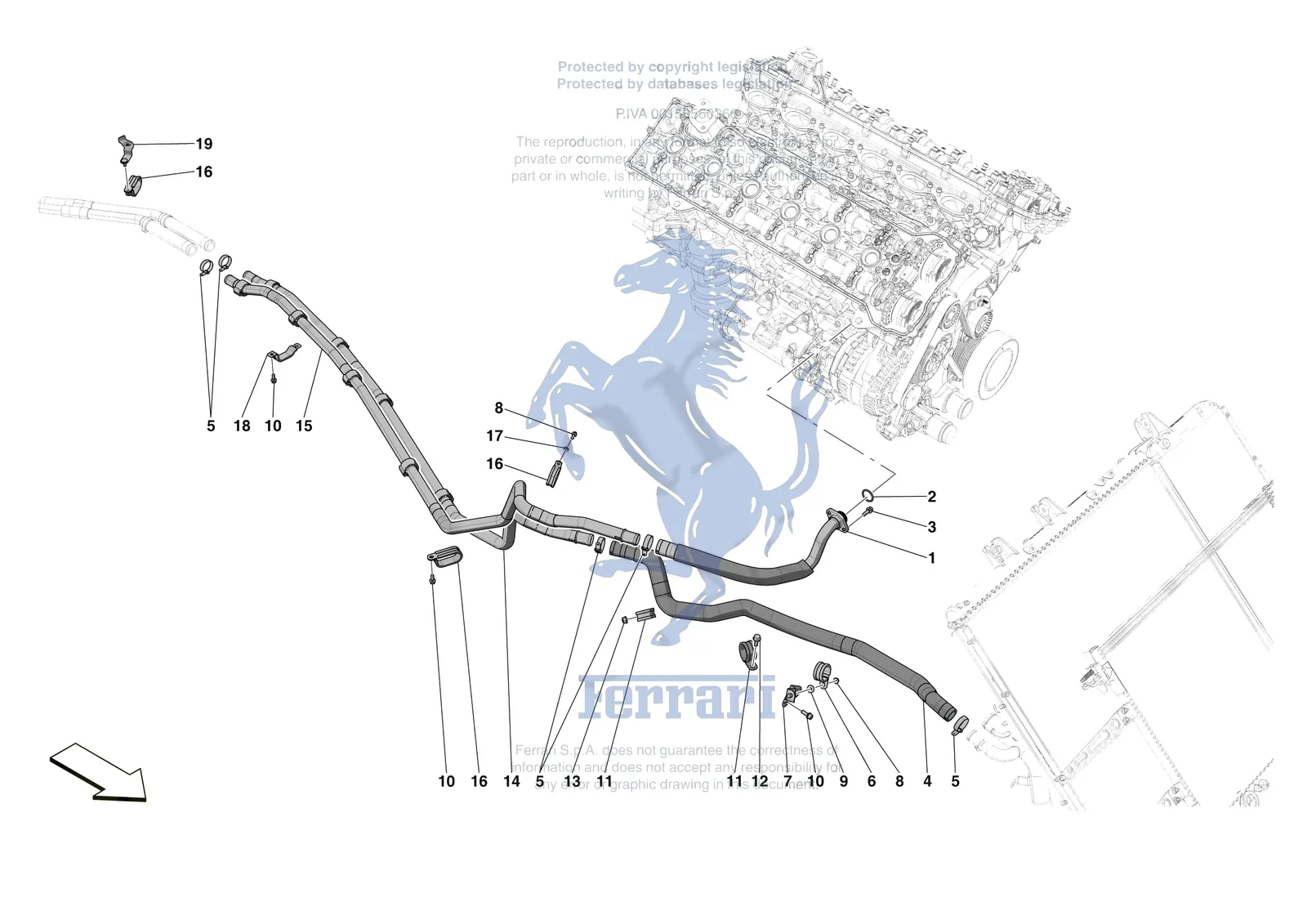

Exploded view of the [gearbox] - c.03.01 - gearbox oil heat exchanger and pipes - front-underbody pipes on the Ferrari 812 CompetizioneA, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0043.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 311280 | Ferrari Clip - 311280 | Superseded | Order 248454 instead | |
| 262112 | Ferrari Collar - 262112 | Superseded | Order 262111 instead | |
| 291949 | Ferrari Collar - 291949 | Superseded | Order 248454 instead | |
| 291225 | Ferrari P clip Bracket With Sheath - 291225 | $7.86 | Special order, ships in 7-14 days | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 10860370 | Ferrari Screw Collar - 10860370 | $3.26 | Special order, ships in 7-14 days | |
| 13127770 | Ferrari Screw Collar - 13127770 | $2.82 | Special order, ships in 7-14 days | |
| 268210 | Ferrari Screw Collar - 268210 | $6.32 | Special order, ships in 7-14 days | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 863804 | Ferrari Manicotto Ant. Cpl Mandata - 863804 | $663.86 | Special order, ships in 7-14 days |
| 2 | 250888 | Ferrari Gasket - 250888 | $1.42 | Available, ships in 3-6 days |
| 3 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 4 | 792668 | Ferrari Front Water Return Hose - 792668 | $319.62 | Special order, ships in 7-14 days |
| 5 | 262111 | Ferrari Screw Collar - 262111 | $3.03 | Special order, ships in 7-14 days |
| 6 | 10448790 | Ferrari Bracket With Sheath - 10448790 | $9.16 | Special order, ships in 7-14 days |
| 7 | 291247 | Ferrari Bracket Fastening Water Pipe - 291247 | $66.35 | Special order, ships in 7-14 days |
| 8 | 14058311 | Ferrari Flanged Nut M5 x 5 - 14058311 | $0.46 | Available, ships in 3-6 days |
| 9 | 13577724 | Ferrari Washer - 13577724 | $3.68 | Special order, ships in 7-14 days |
| 10 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 11 | 10442290 | Ferrari P Clip Bracket With Sheath - 10442290 | $1.42 | Special order, ships in 7-14 days |
| 12 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 13 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
| 14 | 861508 | Ferrari Tubo Centr. Rit. H2Omonoscam - 861508 | $417.97 | Special order, ships in 7-14 days |
| 15 | 862392 | Ferrari Tubo Centr. Mand.H2Omonoscam - 862392 | $442.56 | Special order, ships in 7-14 days |
| 16 | 248454 | Ferrari Bracket With Sheath - 248454 | $15.49 | Special order, ships in 7-14 days |
| 17 | 12649624 | Ferrari Washer - 12649624 | Price on request | Contact us for price and availability |
| 18 | 266783 | Ferrari Bracket - 266783 | $24.07 | Special order, ships in 7-14 days |
| 19 | 285513 | Ferrari Bracket Fastening Water Pipe - 285513 | $21.14 | Special order, ships in 7-14 days |
