Ferrari 812 CompetizioneA — [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK (diagram 0058)

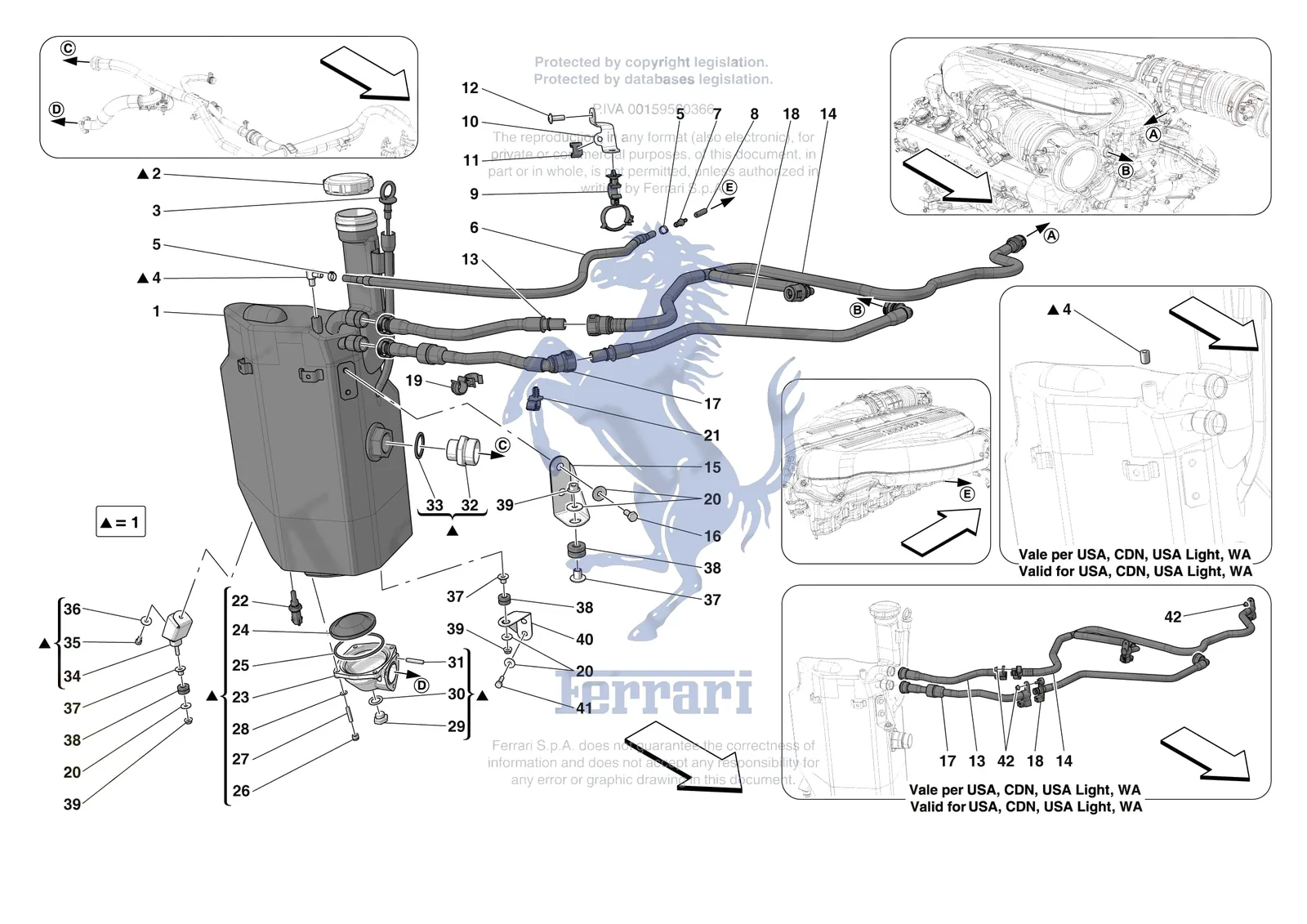

Exploded view of the [mechanical system] - d.9 - engine oil radiator and tank on the Ferrari 812 CompetizioneA, with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 812 CompetizioneA [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
10902426Ferrari Bolt - 10902426SupersededOrder 10902424 instead
95880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
10902421Ferrari Bolt M6 - 10902421$0.25Available, ships in 3-6 days
144485Ferrari Dowty Washer - 144485SupersededOrder 898271 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
891997Ferrari Gasket - 891997SupersededOrder 898271 instead
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
13541121Ferrari Stud 6x12mm - 13541121SupersededOrder 13541124 instead
117715Ferrari Threaded Connector - 117715$8.51Special order, ships in 7-14 days
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
10257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
1825206Ferrari Compl. Engine Oil Tank - 825206$5,322.73Special order, ships in 7-14 days
1825258Ferrari Compl. Engine Oil Tank - 825258$5,383.61Special order, ships in 7-14 days
2175708Ferrari Fuel Filler Cap - 175708$250.00In stock
3791381Ferrari Compl. Oil Dipstick - 791381$61.45Special order, ships in 7-14 days
4290538Ferrari Connector - 290538SupersededOrder 117715 instead
414326101Ferrari Threaded Connector - 14326101$2.38Special order, ships in 7-14 days
5171406Ferrari Hose Retaining Clip - 171406$1.42Available, ships in 3-6 days
6786478Ferrari Rubber Pipe With Sheath - 786478$181.93Special order, ships in 7-14 days
7938038Ferrari Connector - 938038$46.69Special order, ships in 7-14 days
8319430Ferrari RUBBER PIPE - 319430Price on requestContact us for price and availability
9339342Ferrari Clip - 339342$4.35Special order, ships in 7-14 days
10339842Ferrari Bracket - 339842$49.14Special order, ships in 7-14 days
1114574287Ferrari Pipe Clip - 14574287$16.01Available, ships in 3-6 days
1265377400Ferrari Screw M6 x 1 x 18 - 65377400$3.91Available, ships in 3-6 days
13333851Ferrari Oil Vapour Pipe From Reservo - 333851$270.44Special order, ships in 7-14 days
13333853Ferrari Oil Vapour Pipe From Reservo - 333853$125.37Special order, ships in 7-14 days
14743899Ferrari Blow-By Pipe - 743899$417.97Special order, ships in 7-14 days
14773429Ferrari Blow-By Pipe - 773429$590.08Special order, ships in 7-14 days
15269835Ferrari Fastener Bracket - 269835$51.62Special order, ships in 7-14 days
1610902124Ferrari Screw - 10902124$0.29In stock
17330592Ferrari Vapour Pipe From Disconnecto - 330592$786.79Special order, ships in 7-14 days
17333854Ferrari Vapour Pipe From Disconnecto - 333854$663.86Special order, ships in 7-14 days
18330640Ferrari Vapour Pipe From Heads - 330640$295.03Special order, ships in 7-14 days
18333856Ferrari Vapour Pipe From Heads - 333856$164.72Special order, ships in 7-14 days
19330910Ferrari Clip - 330910$4.35Special order, ships in 7-14 days
2012643724Ferrari/Maserati Washer - 12643724$0.20In stock
21262559Ferrari Clip - 262559$1.78Available, ships in 3-6 days
22180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
23210914Ferrari Oil Pickup - 210914$860.56Special order, ships in 7-14 days
24100332Ferrari Sump Filter - 100332$37.13Available, ships in 3-6 days
25125521Ferrari/Maserati Oil Tank O-Ring - 125521$13.20In stock
26102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
2711500424Ferrari Stud M6 x 9 Gambo 20 - 11500424$1.04Available, ships in 3-6 days
2711500524Ferrari Stud Bolt M6 x 9 Gambo 22 - 11500524$0.73Available, ships in 3-6 days
2812601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
29293107Ferrari Threaded Plug - 293107$154.07Available, ships in 3-6 days
3010261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
3113541124Ferrari Stud 6x12 Stem 20 - 13541124$43.68Available, ships in 3-6 days
32138149Ferrari Union - 138149$90.95Special order, ships in 7-14 days
33898271Ferrari/Maserati Dowty Washer - 898271$28.23In stock
34797242Ferrari Engine Oil Tank Fastener Bra - 797242$204.05Special order, ships in 7-14 days
37149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
38103549Ferrari Grommet - 103549$2.80In stock
3914059214Ferrari Flanged Nut M6 - 14059214$0.38Available, ships in 3-6 days
40791321Ferrari Engine Oil Tank Fastener Bra - 791321$61.45Special order, ships in 7-14 days
4110902424Ferrari Bolt M6 x 20 - 10902424$0.27Available, ships in 3-6 days
4214040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
