Ferrari 812 CompetizioneA — [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES (diagram 0065)

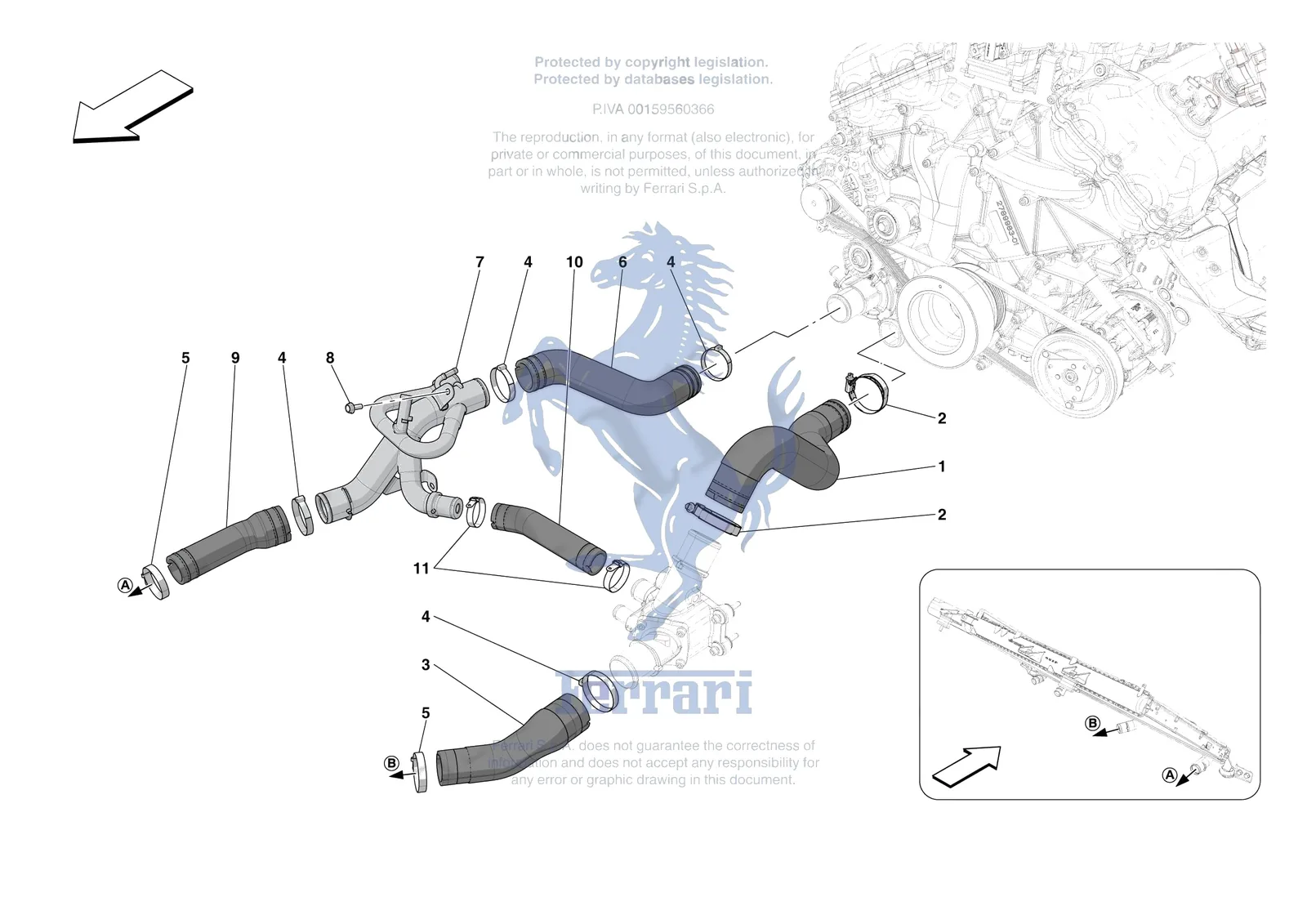

Exploded view of the [mechanical system] - d.16 - cooling system pipes on the Ferrari 812 CompetizioneA, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0065.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 290951 | Ferrari Water Hose From Engine To Valve - 290951 | $614.67 | Special order, ships in 7-14 days |
| 2 | 272913 | Ferrari Collar - 272913 | $7.63 | Special order, ships in 7-14 days |
| 3 | 333051 | Ferrari Water Hose From Valve To Rad - 333051 | $238.47 | Special order, ships in 7-14 days |
| 4 | 296345 | Ferrari Collar - 296345 | $5.00 | Special order, ships in 7-14 days |
| 5 | 262114 | Ferrari Collar - 262114 | $2.38 | Available, ships in 3-6 days |
| 6 | 959359 | Ferrari Return Hose To Pump - 959359 | $137.67 | Special order, ships in 7-14 days |
| 7 | 840157 | Ferrari Metal Multi-Way Pipe - 840157 | $1,204.80 | Special order, ships in 7-14 days |
| 8 | 13836414 | Ferrari Self Locking Flange Bolt M6 x 16 TEBD - 13836414 | $4.12 | Available, ships in 3-6 days |
| 9 | 967794 | Ferrari Return Hose From Radiator - 967794 | $78.66 | Special order, ships in 7-14 days |
| 10 | 958087 | Ferrari Water Hose From Valve To Rad - 958087 | $113.08 | Special order, ships in 7-14 days |
| 11 | 262113 | Ferrari Collar - 262113 | $3.68 | Special order, ships in 7-14 days |
