Ferrari 812 CompetizioneA — [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS (diagram 0079)

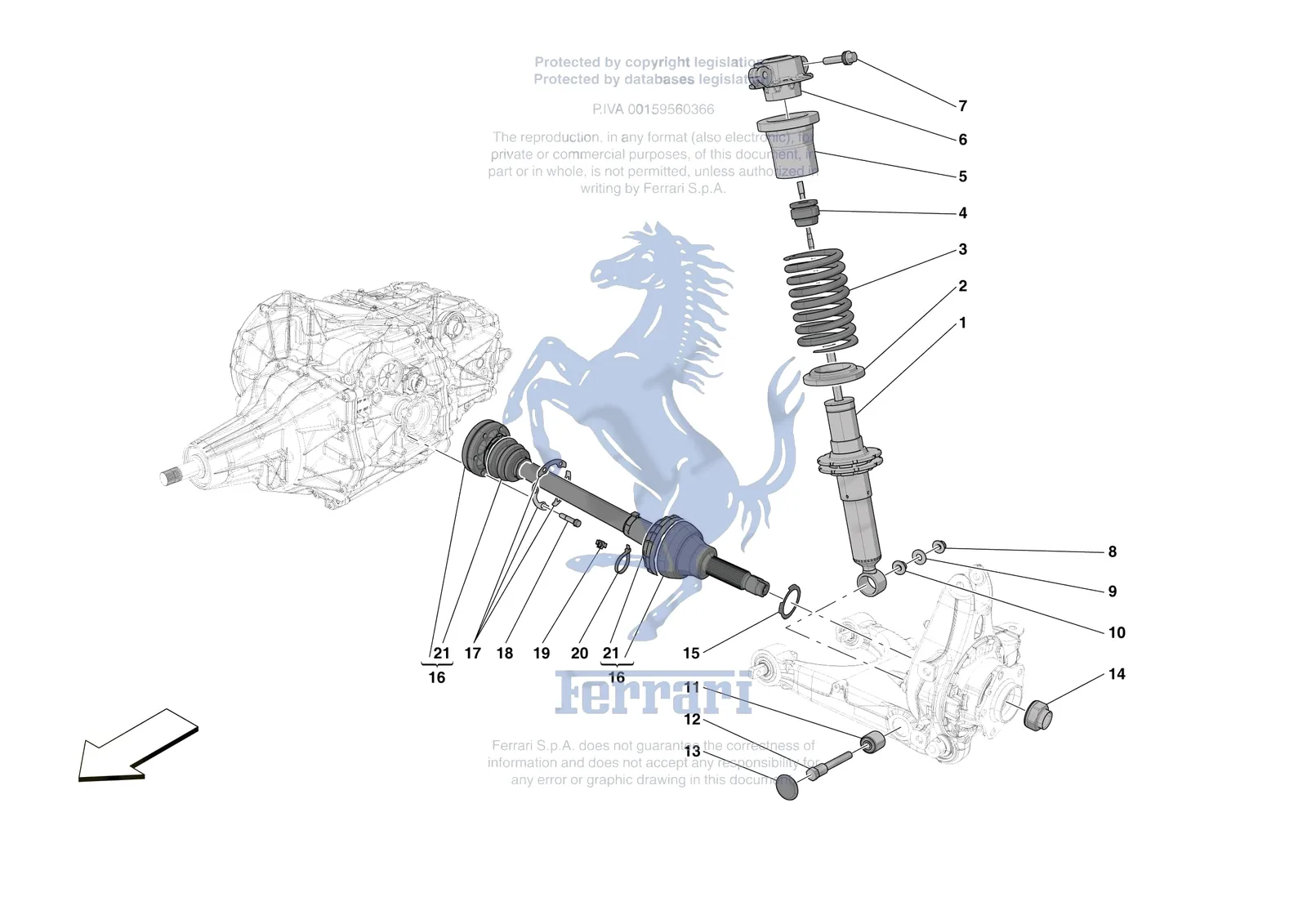

Exploded view of the [mechanical system] - d.27.01 - rear suspension - shock absorbers on the Ferrari 812 CompetizioneA, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0079.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 274635 | Ferrari Axle Shaft - 274635 | Superseded | Order 744019 instead | |
| 12486580 | Ferrari Botton - 12486580 | Superseded | Order 204781 instead | |
| 175871 | Ferrari Clip - 175871 | Superseded | Order 204781 instead | |
| 323365 | Ferrari Connector Fastener Clip - 323365 | Superseded | Order 204781 instead | |
| 187814 | Ferrari Hub Nut - 187814 | Superseded | Order 203780 instead | |
| 917866 | Ferrari Upper Spacer - 917866 | $93.40 | Special order, ships in 7-14 days | |
| 1 | 335659 | Ferrari Rear Shock Absorber - 335659 | $2,409.62 | Special order, ships in 7-14 days |
| 2 | 211236 | Ferrari Lower Spacer - 211236 | $49.14 | Special order, ships in 7-14 days |
| 3 | 841403 | Ferrari Spring - 841403 | $417.97 | Special order, ships in 7-14 days |
| 4 | 281221 | Ferrari Endstop Bush - 281221 | $61.45 | Special order, ships in 7-14 days |
| 5 | 330617 | Ferrari Upper Spacer - 330617 | Price on request | Contact us for price and availability |
| 5 | 914073 | Ferrari Upper Spring Spacer D.84 - 914073 | $67.73 | Special order, ships in 7-14 days |
| 6 | 340250 | Ferrari Compl. Shock Absorber Retainer Cap - 340250 | $393.38 | Special order, ships in 7-14 days |
| 7 | 248790 | Ferrari Screw M12 x 1.25 x 50 - 248790 | $7.63 | Available, ships in 3-6 days |
| 8 | 255271 | Ferrari Nut M12 x 1.25 x - 255271 | $2.59 | Available, ships in 3-6 days |
| 9 | 12646921 | Ferrari Washer - 12646921 | $0.92 | Available, ships in 3-6 days |
| 10 | 237821 | Ferrari Bushing 18x15 - 237821 | $9.16 | Available, ships in 3-6 days |
| 11 | 157630 | Ferrari Front and Rear Shock Bushing PREKOM - 157630 | $87.45 | In stock |
| 12 | 246962 | Ferrari Special Screw M12 x 1.25 - 246962 | $58.98 | Special order, ships in 7-14 days |
| 13 | 14507987 | Ferrari Rubber Plug - 14507987 | $3.85 | In stock |
| 14 | 203780 | Ferrari/Maserati Hub Nut - 203780 | $30.05 | In stock |
| 15 | 918121 | Ferrari Special Ring Bearing for Axle Shaft - 918121 | $34.40 | Special order, ships in 7-14 days |
| 16 | 744019 | Ferrari Axle Shaft - 744019 | $2,154.37 | Special order, ships in 7-14 days |
| 17 | 220325 | Ferrari Shim Plate - 220325 | $7.40 | Special order, ships in 7-14 days |
| 18 | 237590 | Ferrari Axle Bolt - 237590 | $5.56 | In stock |
| 19 | 204781 | Ferrari Clip - 204781 | $1.67 | Available, ships in 3-6 days |
| 20 | 10815787 | Ferrari Clamp - 10815787 | $0.31 | Available, ships in 3-6 days |
