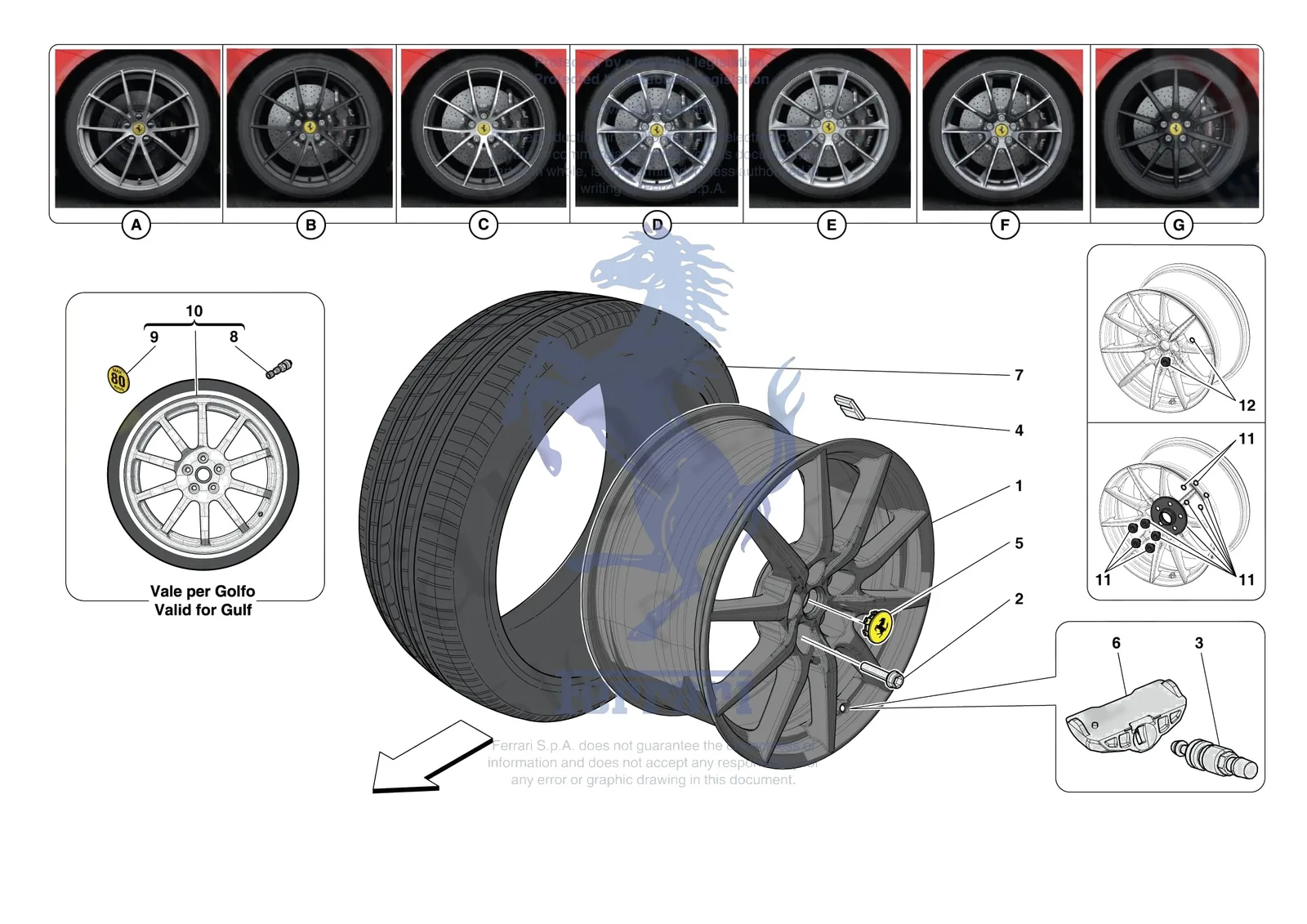

Ferrari 812 CompetizioneA — [MECHANICAL SYSTEM] - D.29 - COMPLETE WHEELS (diagram 0083)
Exploded view of the [mechanical system] - d.29 - complete wheels on the Ferrari 812 CompetizioneA, with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [MECHANICAL SYSTEM] - D.29 - COMPLETE WHEELS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0083.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 108947 | Ferrari Push In Hub Cap - 108947 | Superseded | Order 55059092 instead | |
| 226245 | Ferrari Push In Hub Cap - 226245 | Superseded | Order 55059092 instead | |
| 1 | 323605 | Ferrari Front Wheel - 323605 | $7,984.74 | Special order, ships in 7-14 days |
| 1 | 70007801 | Ferrari Front Wheel - 70007801 | $15,463.70 | Special order, ships in 7-14 days |
| 1 | 888576 | Ferrari Front Wheel - 888576 | $20,605.80 | Special order, ships in 7-14 days |
| 1 | 949369 | Ferrari Front Wheel - 949369 | $7,945.20 | Special order, ships in 7-14 days |
| 1 | 949370 | Ferrari Front Wheel - 949370 | $8,373.99 | Special order, ships in 7-14 days |
| 1 | 949374 | Ferrari Front Wheel - 949374 | $12,116.60 | Special order, ships in 7-14 days |
| 1 | 70006217 | Ferrari Front Wheel - Racing Rim - 70006217 | $19,190.30 | Special order, ships in 7-14 days |
| 1 | 313695 | Ferrari Front Wheel 10J x 20 - 313695 | $8,307.38 | Special order, ships in 7-14 days |
| 1 | 323894 | Ferrari Front Wheel 10J x 20 - 323894 | $7,635.05 | Special order, ships in 7-14 days |
| 1 | 313696 | Ferrari Rear Wheel - 313696 | $8,756.99 | Special order, ships in 7-14 days |
| 1 | 323606 | Ferrari Rear Wheel - 323606 | $8,292.81 | Special order, ships in 7-14 days |
| 1 | 323895 | Ferrari Rear Wheel - 323895 | $7,905.65 | Special order, ships in 7-14 days |
| 1 | 70007802 | Ferrari Rear Wheel - 70007802 | $15,463.70 | Special order, ships in 7-14 days |
| 1 | 888578 | Ferrari Rear Wheel - 888578 | $21,406.13 | Special order, ships in 7-14 days |
| 1 | 949376 | Ferrari Rear Wheel - 949376 | $8,199.15 | Special order, ships in 7-14 days |
| 1 | 949377 | Ferrari Rear Wheel - 949377 | $8,752.83 | Special order, ships in 7-14 days |
| 1 | 949378 | Ferrari Rear Wheel - 949378 | $12,355.98 | Special order, ships in 7-14 days |
| 1 | 70006218 | Ferrari Rear Wheel - Racing Rim - 70006218 | $17,290.74 | Special order, ships in 7-14 days |
| 2 | 206274 | Ferrari Wheel Bolt -Titanium M14x1.5x16 - 206274 | $348.38 | Available, ships in 3-6 days |
| 3 | 248171 | Ferrari Tyre Valve - 248171 | $100.51 | Special order, ships in 7-14 days |
| 3 | 913102 | Ferrari Tyre Valve - 913102 | $30.57 | Available, ships in 3-6 days |
| 3 | 913104 | Ferrari Tyre Valve - 913104 | $37.13 | Special order, ships in 7-14 days |
| 3 | 185328 | Ferrari/Maserati Tire Valve - 185328 | $26.75 | In stock |
| 4 | 11096693 | Ferrari Adhesive Wheel Balancer Weight - 11096693 | $24.32 | Special order, ships in 7-14 days |
| 4 | 308296 | Ferrari Adhesive Wheel Balancer Weight - 308296 | $24.32 | Special order, ships in 7-14 days |
| 5 | 70008081 | Ferrari HUB CAP - 70008081 | $5,196.27 | Special order, ships in 7-14 days |
| 5 | 744579 | Ferrari Hub Cap - 744579 | $58.05 | Available, ships in 3-6 days |
| 5 | 889561 | Ferrari Hub Cap - 889561 | $442.56 | Special order, ships in 7-14 days |
| 5 | 340066 | Ferrari Wheel Center Cap Set - 55059092/4 | Superseded | Order 55059092 instead |
| 5 | 55059092 | Ferrari Wheel Centre Cap - 55059092 | $44.11 | Available, ships in 3-6 days |
| 6 | 314818 | Ferrari Tpms Wheel Sensor Gen 3.8 - 314818 | Superseded | Order 777770 instead |
| 6 | 314821 | Ferrari Tyre Pressure Monitoring System - 314821 | Superseded | Order 777804 instead |
| 6 | 777804 | Ferrari Tyre Pressure Monitoring System - 777804 | $327.81 | Available, ships in 3-6 days |
| 6 | 777770 | Ferrari Tyre Pressure Monitoring System Wheel Sensor - 777770 | $327.81 | Available, ships in 3-6 days |
| 8 | 317250104 | Ferrari Tyre Valve - 317250104 | $30.57 | Special order, ships in 7-14 days |
| 9 | 153815 | Ferrari Spare Wheel Label - 153815 | $29.48 | Available, ships in 3-6 days |
| 10 | 240544 | Ferrari Ruota Complete Di Scorta 20 Pneu. - 240544 | Price on request | Contact us for price and availability |
| 11 | 70005400 | Ferrari REPLACEMENT KIT FOR ALUMINIUM PARTS - 70005400 | Price on request | Contact us for price and availability |
| 12 | 70005401 | Ferrari STUD BOLT SEAT REPLACEMENT KIT - 70005401 | Price on request | Contact us for price and availability |
