Ferrari 812 CompetizioneA — [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE (diagram 0093)

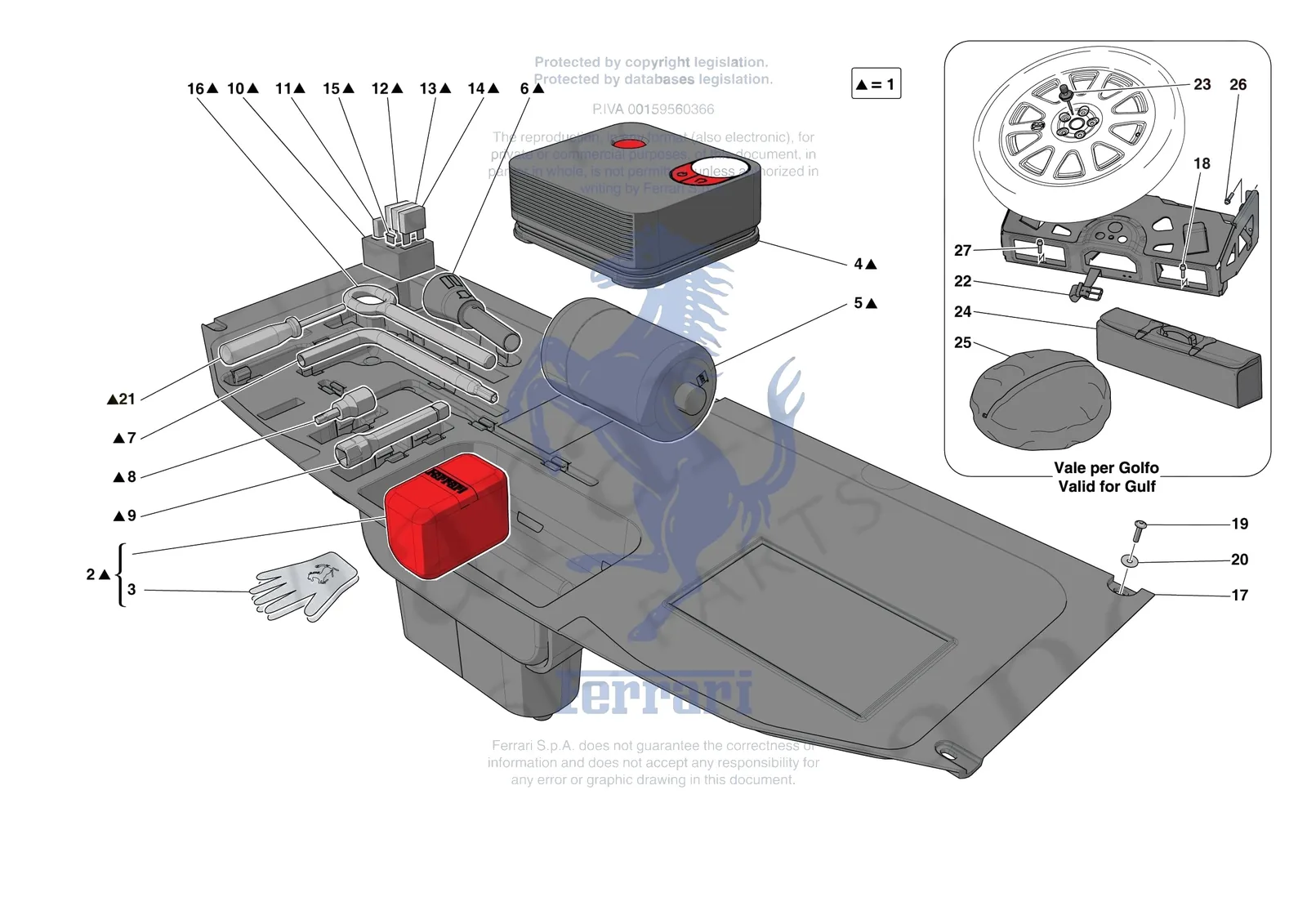

Exploded view of the [mechanical system] - d.38 - tools provided with vehicle on the Ferrari 812 CompetizioneA, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0093.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 273192 | Ferrari Emergency Tool Bag Complete - 273192 | $1,911.57 | Special order, ships in 7-14 days | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 272441 | Ferrari Space Saver Spare Wheel Cover - 272441 | $1,352.32 | Special order, ships in 7-14 days | |
| 280415 | Ferrari Spare Wheel Bracket - 280415 | Superseded | Order 297877 instead | |
| 295021 | Ferrari Spare Wheel Bracket - 295021 | Superseded | Order 297877 instead | |
| 280164 | Ferrari Tyre Repair Kit Complete - 280164 | Superseded | Order 336277 instead | |
| 156093 | Ferrari Washer - 156093 | Superseded | Order 12646778 instead | |
| 1 | 963108 | Ferrari Kit For Compl. Tool Kit - 963108 | $614.67 | Special order, ships in 7-14 days |
| 1 | 986509 | Ferrari Kit For Compl. Tool Kit - 986509 | $1,155.62 | Special order, ships in 7-14 days |
| 2 | 65253000 | Ferrari Accessory Holder Wallet Complete - 65253000 | $179.46 | Special order, ships in 7-14 days |
| 3 | 65253300 | Ferrari White Gloves - 65253300 | $49.28 | In stock |
| 4 | 336277 | Ferrari Tyre Repair Kit Complete - 336277 | $319.62 | Special order, ships in 7-14 days |
| 5 | 322481 | Ferrari Repair Kit Refill Bottle - 322481 | $204.05 | Available, ships in 3-6 days |
| 6 | 260763 | Ferrari Emergency Refuelling Funnel - 260763 | $61.99 | Available, ships in 3-6 days |
| 7 | 297896 | Ferrari P. Lock And RHT Release Tool - 297896 | $71.28 | Special order, ships in 7-14 days |
| 8 | 305545 | Ferrari TORX Socket - 305545 | $58.73 | Special order, ships in 7-14 days |
| 9 | 305967 | Ferrari Socket Wrench Extension - 305967 | $115.54 | Special order, ships in 7-14 days |
| 10 | 248390 | Ferrari Fuse Compartment Foam - 248390 | $24.02 | Special order, ships in 7-14 days |
| 11 | 178659 | Ferrari Fuse Pliers - 178659 | $4.89 | Special order, ships in 7-14 days |
| 12 | 170061 | Ferrari Maxi Fuse 50A - 170061 | $8.05 | Available, ships in 3-6 days |
| 13 | 166835 | Ferrari Maxi Fuse 40A - 166835 | $17.46 | Available, ships in 3-6 days |
| 14 | 172872 | Ferrari Maxi Fuse 70A - 172872 | $39.14 | Available, ships in 3-6 days |
| 15 | 131941 | Ferrari Fuse 30 Amp - 131941 | $0.92 | Available, ships in 3-6 days |
| 16 | 959255 | Ferrari Gancio Di Traino Anterior - 959255 | $147.51 | Special order, ships in 7-14 days |
| 17 | 935779 | Ferrari Compl. Tool Kit Tray - 935779 | $442.56 | Special order, ships in 7-14 days |
| 18 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 19 | 85692300 | Ferrari Screw M5 x 20 TBFTX - 85692300 | $0.65 | Available, ships in 3-6 days |
| 19 | 169815 | Ferrari Screw TBFEI M5 x 20 - 169815 | $3.47 | Available, ships in 3-6 days |
| 20 | 12646778 | Ferrari Washer - 12646778 | $0.89 | In stock |
| 20 | 263276 | Ferrari Washer - 263276 | $0.33 | Available, ships in 3-6 days |
| 21 | 225020 | Ferrari Screwdriver - 225020 | $56.52 | Special order, ships in 7-14 days |
| 22 | 297877 | Ferrari Spare Wheel Bracket - 297877 | $2,154.37 | Special order, ships in 7-14 days |
| 23 | 254629 | Ferrari Spare Wheel Fastener Tie-Rod - 254629 | $117.99 | Available, ships in 3-6 days |
| 24 | 247676 | Ferrari Emergency Tool Bag Complete - 247676 | $1,229.39 | Special order, ships in 7-14 days |
| 25 | 870940 | Ferrari Space Saver Spare Wheel Cove - 870940 | $2,037.27 | Special order, ships in 7-14 days |
| 26 | 64830600 | Ferrari Screw M6 x 22 TBEI - 64830600 | $3.26 | Available, ships in 3-6 days |
