Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE (diagram 0096)

Exploded view of the [vehicle trim] - e.01.02 - structures and elements centre of vehicle on the Ferrari 812 CompetizioneA, with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

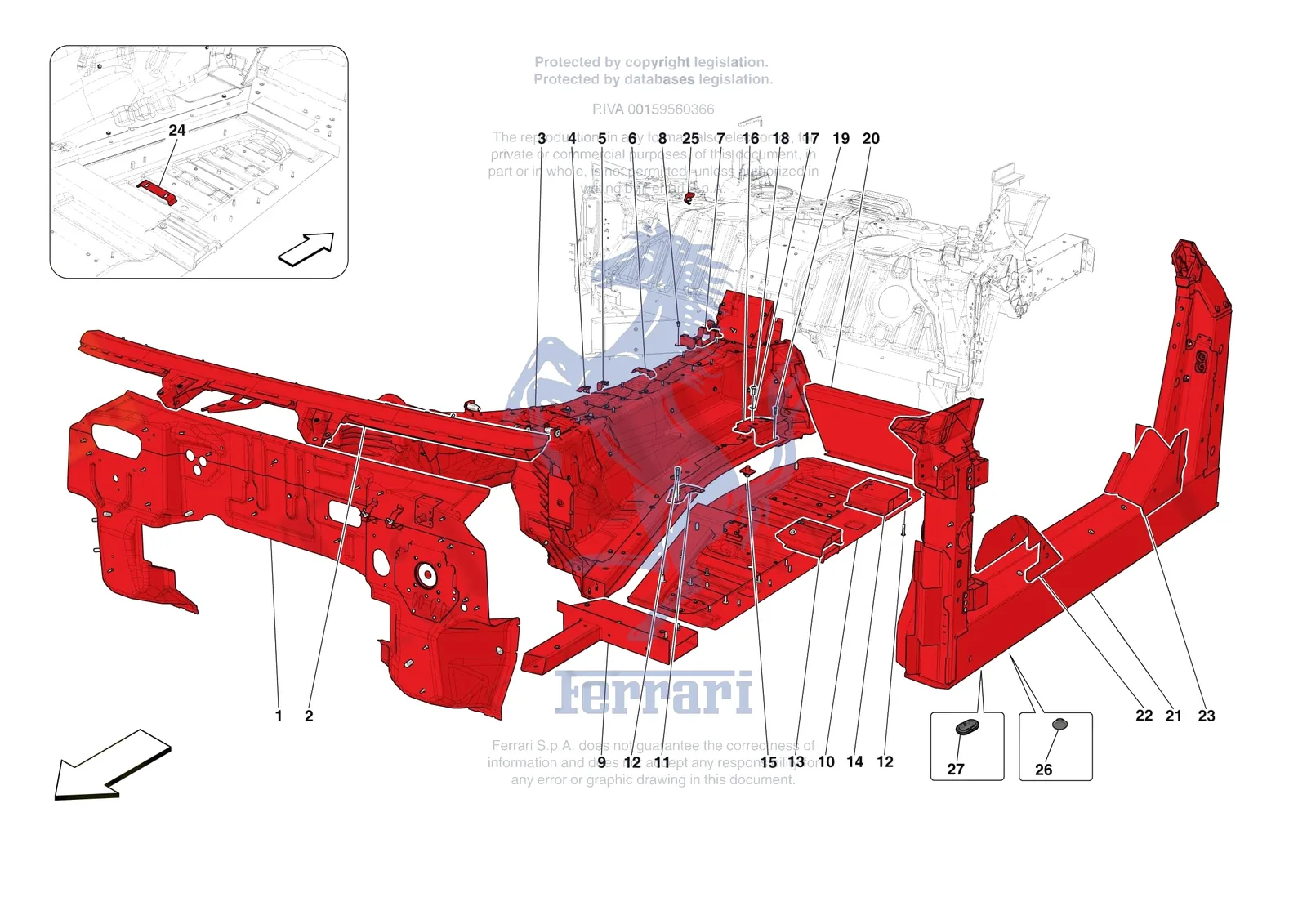

Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
325400Ferrari Front Firewall - 325400SupersededOrder 985325400 instead
278428Ferrari LH External Pillar Truss - 278428SupersededOrder 985278428 instead
292692Ferrari LH Lower Extrusion RHD - 292692$480.17Special order, ships in 7-14 days
274205Ferrari LH Lower Rear Floor Cross-Piece - 274205$1,444.15Special order, ships in 7-14 days
273926Ferrari LH Outer Front Seat Bracket - 273926$881.17Special order, ships in 7-14 days
281636Ferrari LH Rear Seat Outer Extrusion - 281636$979.09Special order, ships in 7-14 days
273971Ferrari LH Semi-Floor - 273971SupersededOrder 985273971 instead
278429Ferrari RH External Pillar Truss - 278429SupersededOrder 985278429 instead
292691Ferrari RH Lower Extrusion RHD - 292691$480.17Special order, ships in 7-14 days
274204Ferrari RH Lower Rear Floor Cross-Piece - 274204$1,444.15Special order, ships in 7-14 days
273925Ferrari RH Outer Front Seat Bracket - 273925$881.17Special order, ships in 7-14 days
281637Ferrari RH Rear Seat Outer Extrusion - 281637$979.09Special order, ships in 7-14 days
273972Ferrari RH Semi-Floor - 273972SupersededOrder 985273972 instead
273126Ferrari Windscreen Valence Panel LHD - 273126Price on requestContact us for price and availability
1985325400Ferrari Front Firewall - 985325400$5,585.00Contact us to order
1289169Ferrari Front Firewall RHD - 289169$1,549.03Contact us to order
2985273126Ferrari Windscreen Valence Panel LHD - 985273126Price on requestContact us for price and availability
2292682Ferrari Windscreen Valence Panel RHD - 292682$1,647.38Special order, ships in 7-14 days
3985827751Ferrari COMPL. TUNNEL - 985827751Price on requestContact us for price and availability
3985917170Ferrari COMPL. TUNNEL - 985917170Price on requestContact us for price and availability
4331139Ferrari LH Fastener Bracket For Fron - 331139$110.61Special order, ships in 7-14 days
4331140Ferrari RH Fastener Bracket For Fron - 331140$110.61Special order, ships in 7-14 days
5286419Ferrari LH Bracket For Front Fastener - 286419$8.82Special order, ships in 7-14 days
5286420Ferrari RH Bracket For Front Fastener - 286420$6.61Special order, ships in 7-14 days
6286417Ferrari Front Bracket For Front Fastener - 286417$21.60Special order, ships in 7-14 days
7331125Ferrari Rear Fastener Bracket For Re - 331125$110.61Special order, ships in 7-14 days
814645690Ferrari Rivet D.4 8X10 - 14645690$0.65Available, ships in 3-6 days
9985292692Ferrari LH Lower Extrusion RHD - 985292692$786.79Special order, ships in 7-14 days
9985292691Ferrari RH Lower Extrusion RHD - 985292691$860.56Special order, ships in 7-14 days
10985273971Ferrari LH Semi-Floor - 985273971$2,458.79Contact us to order
10985273972Ferrari RH Semi-Floor - 985273972$2,458.79Contact us to order
11273921Ferrari LH Inner Front Seat Bracket - 273921$1,106.43Special order, ships in 7-14 days
11273922Ferrari RH Inner Front Seat Bracket - 273922$1,106.43Special order, ships in 7-14 days
12204430Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430$2.82Available, ships in 3-6 days
13985273926Ferrari LH Outer Front Seat Bracket - 985273926$885.15Special order, ships in 7-14 days
13985273925Ferrari RH Outer Front Seat Bracket - 985273925$885.15Special order, ships in 7-14 days
14985281636Ferrari LH Rear Seat Outer Extrusion - 985281636$983.50Special order, ships in 7-14 days
14985281637Ferrari RH Rear Seat Outer Extrusion - 985281637$983.50Special order, ships in 7-14 days
15252821Ferrari Compl. Ground - 252821$61.45Special order, ships in 7-14 days
16294720Ferrari LH Inner Rear Seat Bracket - 294720$885.15Special order, ships in 7-14 days
16294722Ferrari RH Inner Rear Seat Bracket - 294722$885.15Special order, ships in 7-14 days
1713579421Ferrari WASHER - 13579421Price on requestContact us for price and availability
1884260600Ferrari Screw M8 x 20 - 84260600$344.21Special order, ships in 7-14 days
1914639591Ferrari Rivet - 14639591$3.03Available, ships in 3-6 days
20985274205Ferrari LH Lower Rear Floor Cross-Piece - 985274205$1,475.26Special order, ships in 7-14 days
20985274204Ferrari RH Lower Rear Floor Cross-Piece - 985274204$1,475.26Special order, ships in 7-14 days
21985827805Ferrari LH Sill Beam Pillar Section - 985827805$37,576.45Contact us to order
21985827844Ferrari RH Sill Beam Pillar Section - 985827844$37,576.45Contact us to order
21985917161Ferrari RH Sill Beam Pillar Section - 985917161$45,738.27Contact us to order
22985848526Ferrari Internal LH Front Truss - 985848526$639.27Special order, ships in 7-14 days
22985848527Ferrari Internal RH Front Truss - 985848527$639.27Special order, ships in 7-14 days
23985278428Ferrari LH External Pillar Truss - 985278428$565.49Special order, ships in 7-14 days
23985278429Ferrari RH External Pillar Truss - 985278429$565.49Special order, ships in 7-14 days
24331143Ferrari Magneride Connector Bracket - 331143$110.61Special order, ships in 7-14 days
25865539Ferrari Compl. RH Upper Fastener Bracket for Rear Wheelhouse - 865539$98.32Special order, ships in 7-14 days
2682299600Ferrari Plug For Front Master Point - 82299600$5.00Available, ships in 3-6 days
2782882400Ferrari Cap For Slot - 82882400$7.19Special order, ships in 7-14 days
