Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL (diagram 0098)

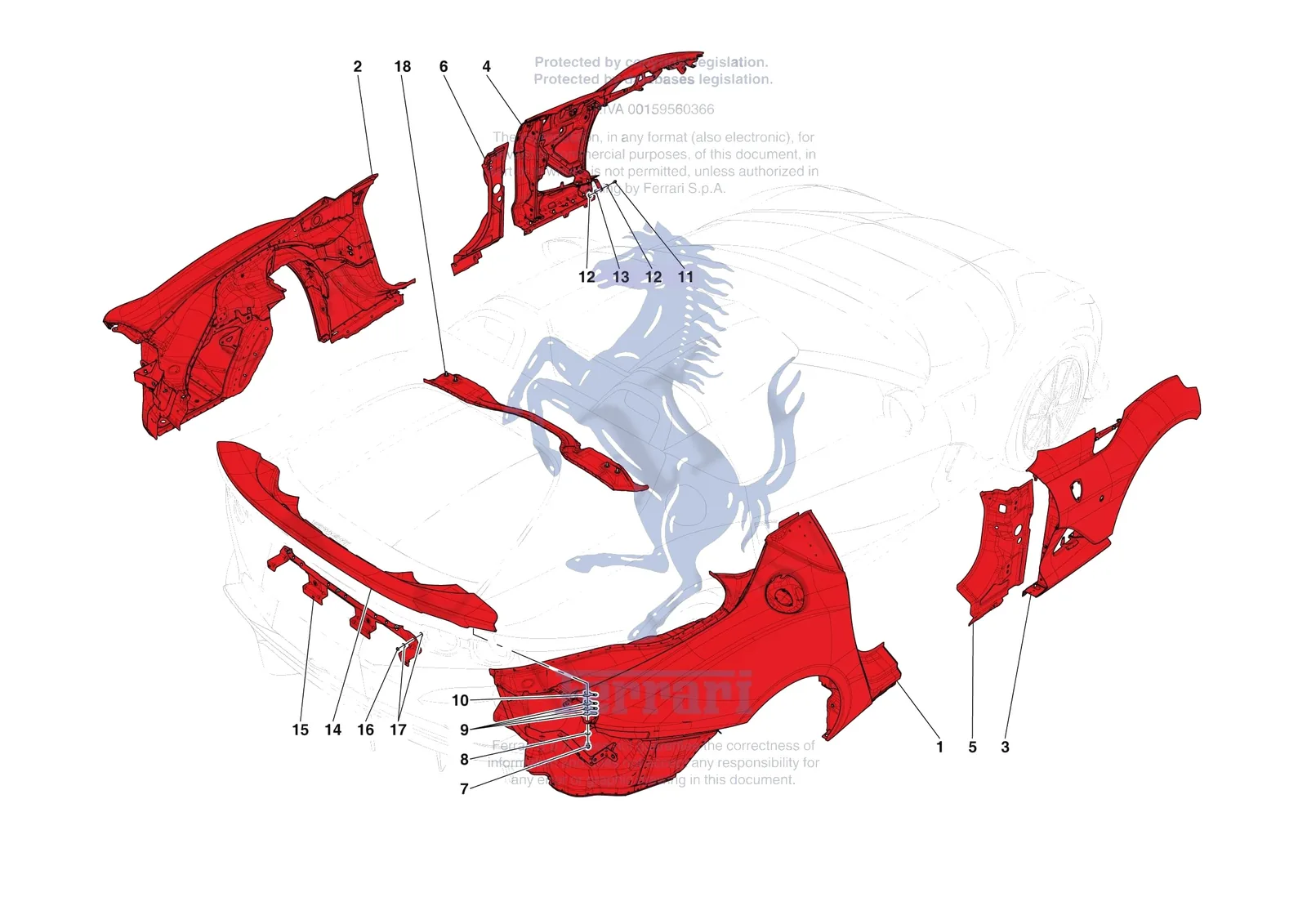

Exploded view of the [vehicle trim] - e.02 - lateral outer bodyshell on the Ferrari 812 CompetizioneA, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0098.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead | |
| 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead | |
| 1 | 985746134 | Ferrari RH Rear Flank - 985746134 | $42,883.16 | Contact us to order |
| 2 | 985746153 | Ferrari LH Rear Flank - 985746153 | $43,035.03 | Contact us to order |
| 3 | 985884042 | Ferrari Front RH Fender - 985884042 | $9,978.86 | Contact us to order |
| 3 | 985961172 | Ferrari Front RH Fender - 985961172 | $16,991.84 | Contact us to order |
| 4 | 985884045 | Ferrari Front LH Fender - 985884045 | $9,978.86 | Contact us to order |
| 4 | 985961187 | Ferrari Front LH Fender - 985961187 | $18,646.47 | Contact us to order |
| 5 | 88296311 | Ferrari RH Lower Pillar External Tri - 88296311 | $1,106.43 | Special order, ships in 7-14 days |
| 6 | 88296111 | Ferrari LH Lower Pillar External Tri - 88296111 | $1,106.43 | Special order, ships in 7-14 days |
| 7 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 8 | 12644425 | Ferrari Washer - 12644425 | $0.52 | Special order, ships in 7-14 days |
| 9 | 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days |
| 10 | 856009 | Ferrari Adjustment Shim 0.6mm - 856009 | $13.49 | Special order, ships in 7-14 days |
| 11 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 12 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 13 | 12647724 | Ferrari Washer - 12647724 | $0.31 | Available, ships in 3-6 days |
| 14 | 746121 | Ferrari Compl. Rear Spoiler - 746121 | $11,650.07 | Contact us to order |
| 14 | 746145 | Ferrari Compl. Rear Spoiler - 746145 | $11,650.07 | Contact us to order |
| 15 | 985966823 | Ferrari Compl. Spoiler Mounting Cros - 985966823 | $713.04 | Special order, ships in 7-14 days |
| 16 | 14059121 | Ferrari Nut M5 - 14059121 | $0.31 | Available, ships in 3-6 days |
| 17 | 13577724 | Ferrari Washer - 13577724 | $3.68 | Special order, ships in 7-14 days |
| 18 | 985746169 | Ferrari Compl. Centre Gutter - 985746169 | $1,549.03 | Special order, ships in 7-14 days |
