Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.09 - FRONT LID SUBSTRUCTURE (diagram 0105)

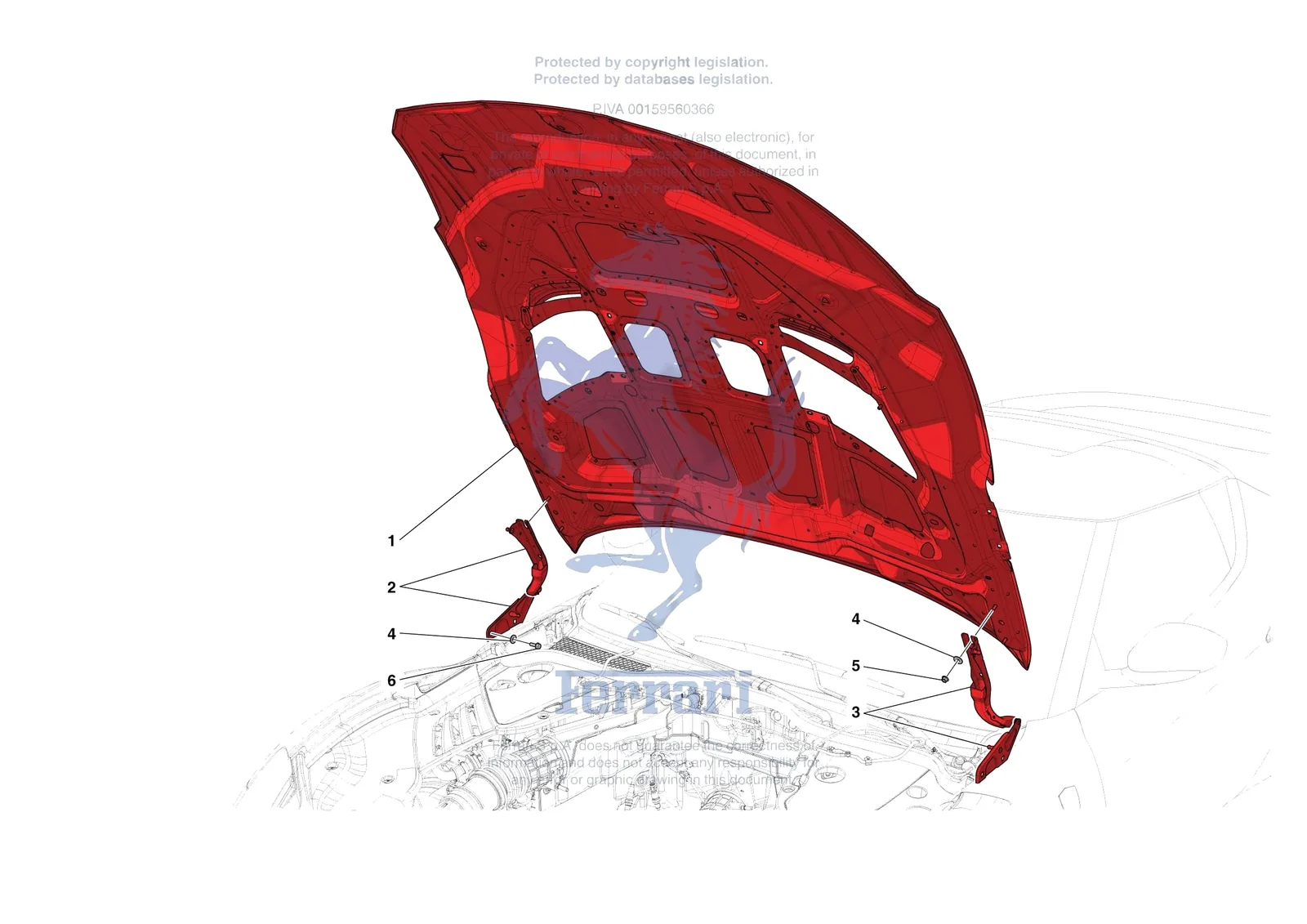

Exploded view of the [vehicle trim] - e.09 - front lid substructure on the Ferrari 812 CompetizioneA, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.09 - FRONT LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0105.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11617624 | Ferrari Screw - 11617624 | Superseded | Order 16287224 instead | |
| 80415900 | Ferrari Screw - 80415900 | $32.60 | Available, ships in 3-6 days | |
| 13578311 | Ferrari Washer - 13578311 | Superseded | Order 13578324 instead | |
| 1 | 985960880 | Ferrari Compl. Engine Compartment Li - 985960880 | $14,916.27 | Contact us to order |
| 2 | 85156300 | Ferrari RH Hinge Complete - 85156300 | $270.44 | Special order, ships in 7-14 days |
| 3 | 85156400 | Ferrari LH Hinge Complete - 85156400 | $270.44 | Special order, ships in 7-14 days |
| 4 | 13578324 | Ferrari Washer 8.15-24x 2 - 13578324 | $0.44 | Available, ships in 3-6 days |
| 5 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 6 | 16287224 | Ferrari Screw M8x25 - 16287224 | $0.82 | Available, ships in 3-6 days |
