Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.11 - ROLLBAR COMPARTMENT (diagram 0107)

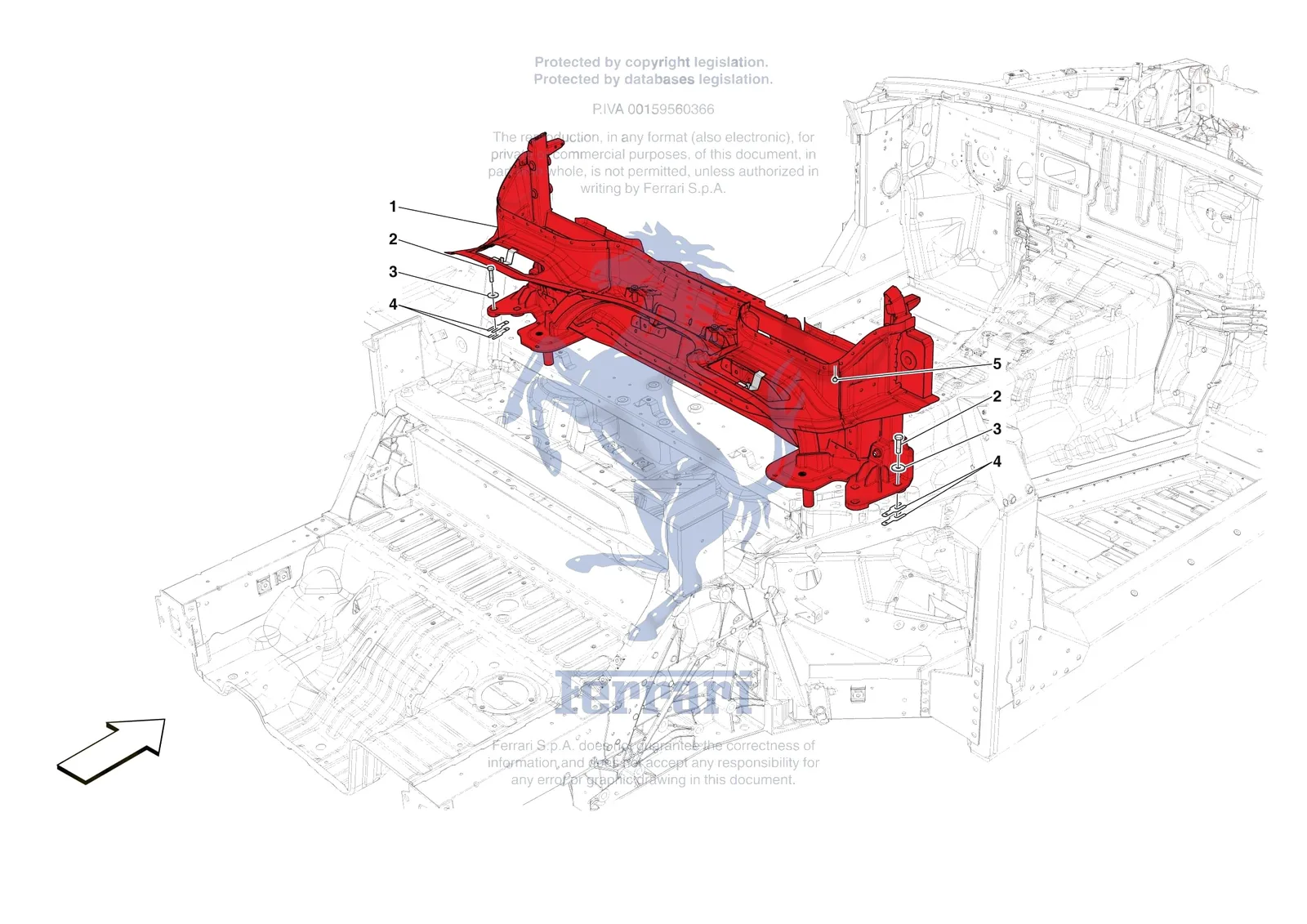

Exploded view of the [vehicle trim] - e.11 - rollbar compartment on the Ferrari 812 CompetizioneA, with 6 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.11 - ROLLBAR COMPARTMENT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0107.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 788467 | Ferrari Roll Bar Skin - 788467 | $12,659.36 | Contact us to order |
| 2 | 16043824 | Ferrari Bolt M8 x 30 - 16043824 | $0.86 | Available, ships in 3-6 days |
| 3 | 12647024 | Ferrari Washer - 12647024 | $1.02 | Available, ships in 3-6 days |
| 4 | 867914 | Ferrari Shim - 867914 | $19.40 | Special order, ships in 7-14 days |
| 4 | 867949 | Ferrari Shim - 867949 | $18.42 | Special order, ships in 7-14 days |
| 5 | 65133800 | Ferrari Rivet 6.4mm - 65133800 | $0.27 | Available, ships in 3-6 days |
