Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.33 - FRONT LID TRIM (diagram 0134)
Exploded view of the [vehicle trim] - e.33 - front lid trim on the Ferrari 812 CompetizioneA, with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

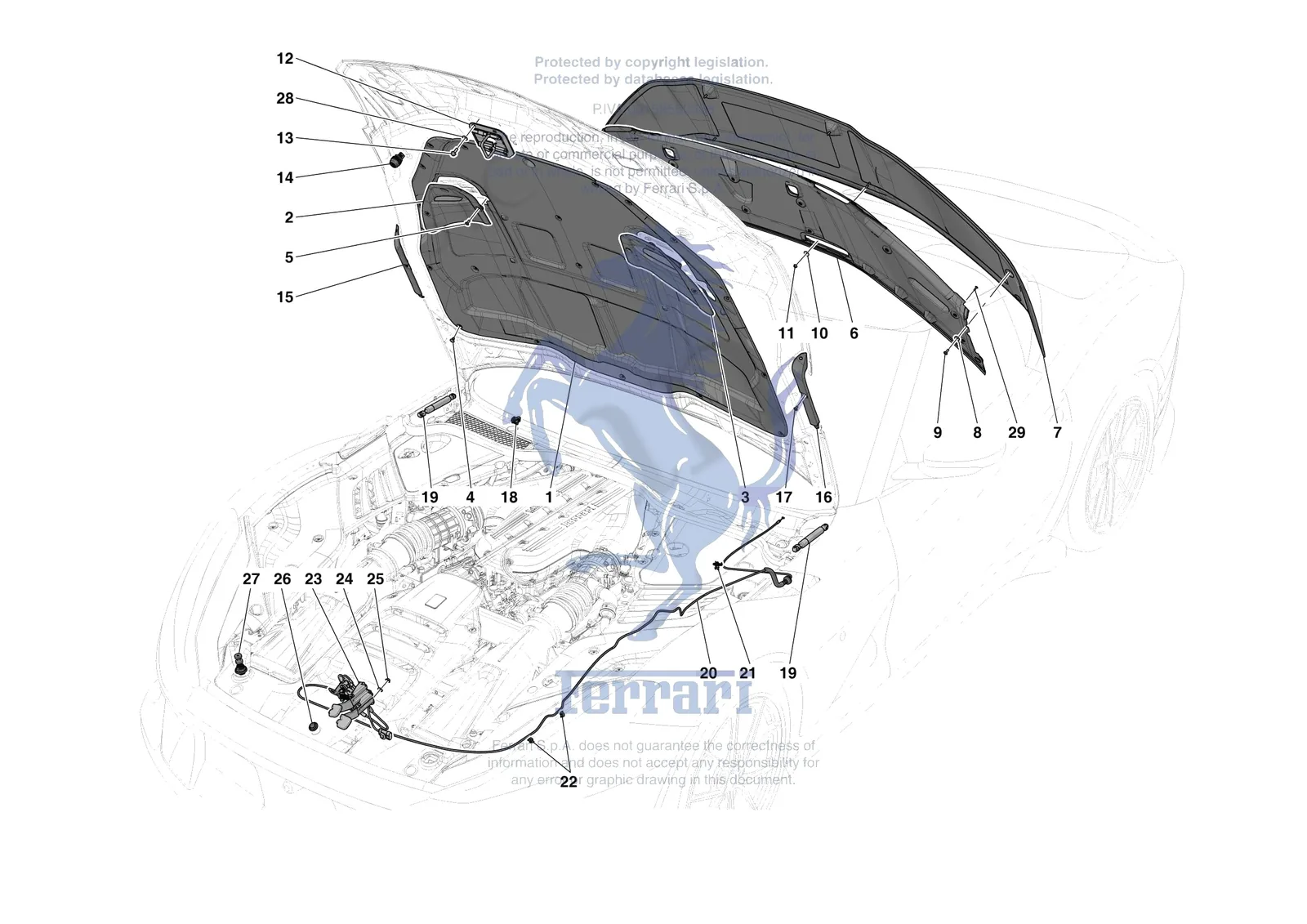

![Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.33 - FRONT LID TRIM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0134.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days | |
| 881061 | Ferrari Screw M6x18 with Washer - 881061 | Superseded | Order 936581 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 799339 | Ferrari Under-Lid Insulation - 799339 | $491.74 | Special order, ships in 7-14 days |
| 2 | 887935 | Ferrari Compl. RH Lateral Engine Com - 887935 | $184.38 | Special order, ships in 7-14 days |
| 3 | 887951 | Ferrari Compl. LH Lateral Engine Com - 887951 | $184.38 | Special order, ships in 7-14 days |
| 4 | 14591687 | Ferrari Fixing Button - 14591687 | $0.13 | Available, ships in 3-6 days |
| 5 | 85833800 | Ferrari Screw M5 x 14 TBFTX - 85833800 | $0.90 | Available, ships in 3-6 days |
| 6 | 886707 | Ferrari Compl. Engine Comp. Lid Unde - 886707 | $958.91 | Special order, ships in 7-14 days |
| 7 | 70007475 | Ferrari Compl. Front Lid Cosmetic Co - 70007475 | $28,972.05 | Contact us to order |
| 7 | 749720 | Ferrari Compl. Front Lid Cosmetic Co - 749720 | $29,466.70 | Contact us to order |
| 7 | 799773 | Ferrari Compl. Front Lid Cosmetic Co - 799773 | $22,942.89 | Contact us to order |
| 8 | 12647601 | Ferrari Washer - 12647601 | $0.13 | Special order, ships in 7-14 days |
| 9 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 10 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 11 | 14059121 | Ferrari Nut M5 - 14059121 | $0.31 | Available, ships in 3-6 days |
| 12 | 80246800 | Ferrari Striker Plate - 80246800 | $93.40 | Special order, ships in 7-14 days |
| 13 | 936581 | Ferrari M6x18 Screw With Captive Washer - 936581 | $1.34 | Special order, ships in 7-14 days |
| 13 | 65377400 | Ferrari Screw M6 x 1 x 18 - 65377400 | $3.91 | Available, ships in 3-6 days |
| 14 | 67161800 | Ferrari Anti Vibration Pad - 67161800 | $56.60 | In stock |
| 15 | 916936 | Ferrari RH Lateral Plate - 916936 | $36.86 | Special order, ships in 7-14 days |
| 16 | 916923 | Ferrari LH Lateral Plate - 916923 | $36.86 | Special order, ships in 7-14 days |
| 17 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 18 | 84019400 | Ferrari Spray Nozzle - 84019400 | $8.59 | Special order, ships in 7-14 days |
| 19 | 784697 | Ferrari Gas Strut - 784697 | $76.47 | Special order, ships in 7-14 days |
| 20 | 799340 | Ferrari Front Lid Release Cable - 799340 | $140.13 | Special order, ships in 7-14 days |
| 20 | 85041000 | Ferrari Lid Release Bowden Cable RHD - 85041000 | $125.37 | Special order, ships in 7-14 days |
| 21 | 268893 | Ferrari Clip - 268893 | $3.91 | Available, ships in 3-6 days |
| 21 | 69708300 | Ferrari Clip - 69708300 | $2.59 | Available, ships in 3-6 days |
| 22 | 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days |
| 23 | 799343 | Ferrari Compl. Lid Lock - 799343 | $344.21 | Special order, ships in 7-14 days |
| 24 | 12647878 | Ferrari Washer - 12647878 | $5.65 | Special order, ships in 7-14 days |
| 25 | 13046112 | Ferrari Nut - 13046112 | $0.46 | Available, ships in 3-6 days |
| 26 | 849815 | Ferrari Anti Vibration Damper - 849815 | $51.62 | Available, ships in 3-6 days |
| 27 | 14507687 | Ferrari Cap - 14507687 | $1.78 | Special order, ships in 7-14 days |
| 28 | 14498801 | Ferrari Washer - 14498801 | $0.19 | Available, ships in 3-6 days |
| 29 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 29 | 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days |
