Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.39 - REAR LID OPENING MECHANISM (diagram 0140)

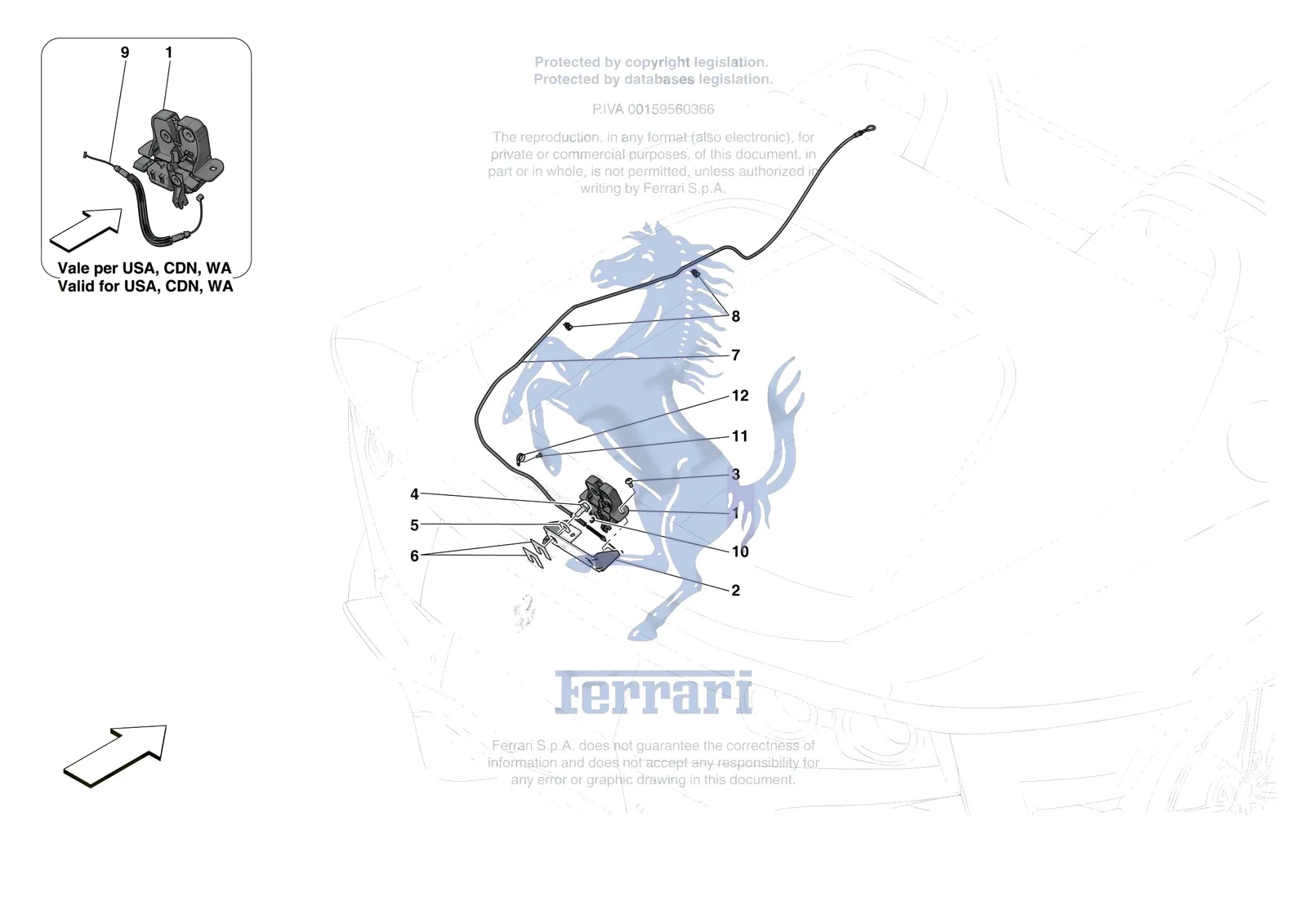

Exploded view of the [vehicle trim] - e.39 - rear lid opening mechanism on the Ferrari 812 CompetizioneA, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.39 - REAR LID OPENING MECHANISM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0140.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11087675 | Ferrari Circlip - 11087675 | Superseded | Order 11087676 instead | |
| 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days | |
| 20035903 | Ferrari Door Lock Circlips - 20035903 | Superseded | Order 11087676 instead | |
| 84537500 | Ferrari Electric Lock - 84537500 | Superseded | Order 85051400 instead | |
| 84820000 | Ferrari Electric Lock - 84820000 | Superseded | Order 85051400 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 242223 | Ferrari Spacer 0.5mm - 242223 | $4.98 | Special order, ships in 7-14 days | |
| 242224 | Ferrari Spacer 1.0mm - 242224 | $5.19 | Special order, ships in 7-14 days | |
| 13578311 | Ferrari Washer - 13578311 | Superseded | Order 13578324 instead | |
| 1 | 85051400 | Ferrari Electric Lock - Trunk - 85051400 | $177.00 | Special order, ships in 7-14 days |
| 1 | 84922700 | Ferrari Electric Lock With Lever And Memory - 84922700 | $177.00 | Special order, ships in 7-14 days |
| 2 | 762784 | Ferrari Bracket - 762784 | $61.45 | Special order, ships in 7-14 days |
| 3 | 65864100 | Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100 | $2.82 | Available, ships in 3-6 days |
| 4 | 16287124 | Ferrari Flanged Bolt - 16287124 | $2.38 | Available, ships in 3-6 days |
| 5 | 13578324 | Ferrari Washer 8.15-24x 2 - 13578324 | $0.44 | Available, ships in 3-6 days |
| 6 | 980674 | Ferrari Spacer 0.5mm - 980674 | $7.84 | Special order, ships in 7-14 days |
| 6 | 84651000 | Ferrari Spacer 1.0mm - 84651000 | $6.96 | Special order, ships in 7-14 days |
| 7 | 943478 | Ferrari Lock Bowden Cable - 943478 | $169.62 | Special order, ships in 7-14 days |
| 8 | 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days |
| 9 | 768480 | Ferrari Child Safety Release Bowden - 768480 | $95.87 | Special order, ships in 7-14 days |
| 10 | 11087676 | Ferrari Circlip - 11087676 | $0.27 | Available, ships in 3-6 days |
| 11 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 12 | 10441290 | Ferrari P Clip Bracket With Sheath 28mm D.10 - 10441290 | $1.02 | Available, ships in 3-6 days |
