Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- (diagram 0149)

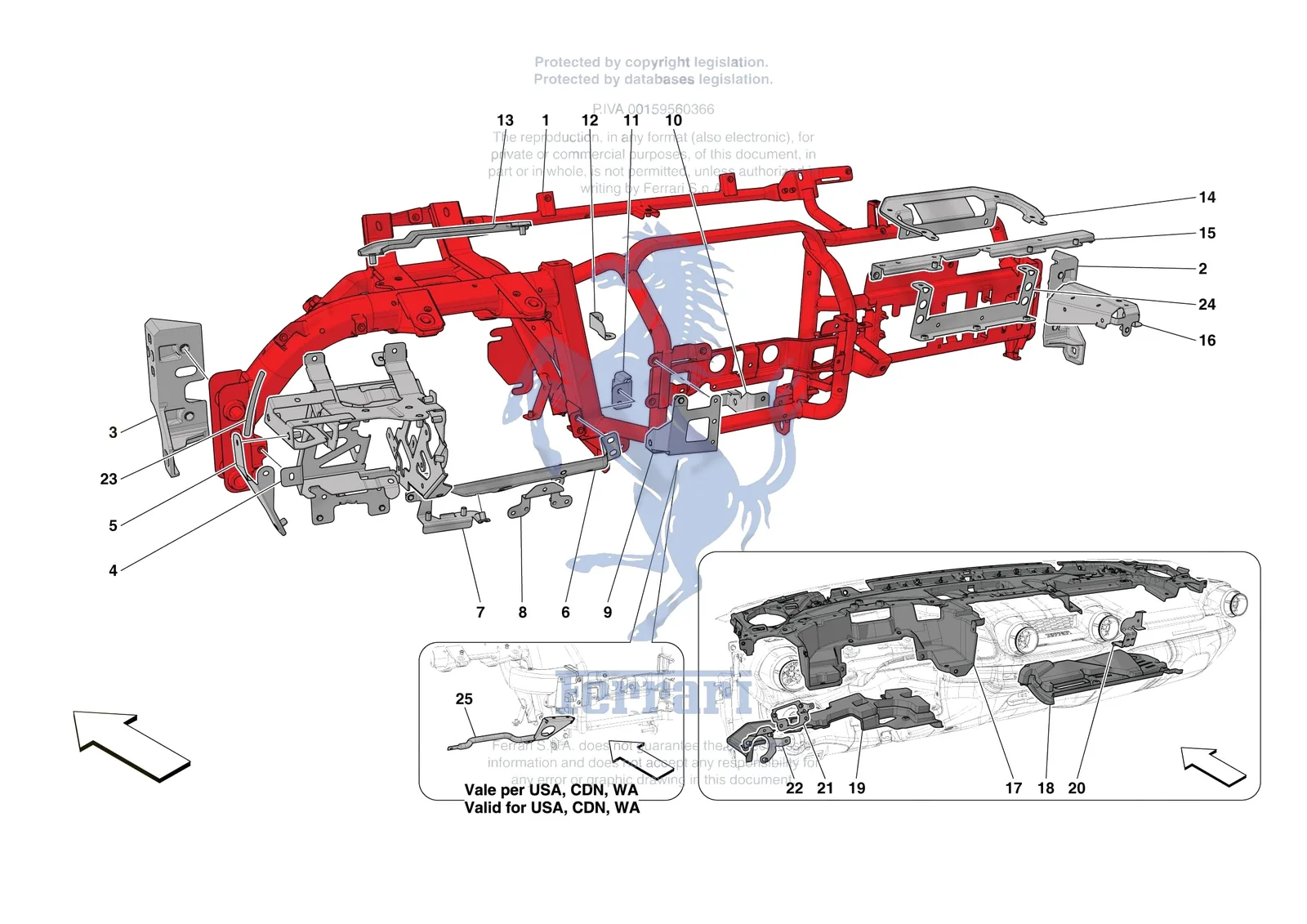

Exploded view of the [vehicle trim] - e.47.01 - dashboard - substructure -not for rhd- on the Ferrari 812 CompetizioneA, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0149.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 65841900 | Ferrari Gasket - 65841900 | $1.80 | Special order, ships in 7-14 days | |
| 83332100 | Ferrari Gasket - 83332100 | $3.91 | Special order, ships in 7-14 days | |
| 1 | 87893700 | Ferrari Dashboard Cross Member - 87893700 | $4,266.61 | Special order, ships in 7-14 days |
| 2 | 80637100 | Ferrari RH Lateral Body Shell Bracket - 80637100 | $132.75 | Special order, ships in 7-14 days |
| 3 | 80519100 | Ferrari LH Lateral Body Shell Bracket - 80519100 | $132.75 | Special order, ships in 7-14 days |
| 4 | 87893100 | Ferrari Body Computer Bracket - 87893100 | $688.45 | Special order, ships in 7-14 days |
| 4 | 88593500 | Ferrari Body Computer Bracket - 88593500 | $786.79 | Special order, ships in 7-14 days |
| 5 | 88527500 | Ferrari Trim Moulding Fastener Brack - 88527500 | $61.45 | Special order, ships in 7-14 days |
| 6 | 85090400 | Ferrari Lower Under Driver Seat Bracket - 85090400 | $78.66 | Special order, ships in 7-14 days |
| 6 | 84494400 | Ferrari Lower Under Driver Seat Bracket LHD - 84494400 | $344.21 | Special order, ships in 7-14 days |
| 7 | 84937900 | Ferrari OBD Bracket LHD - 84937900 | $61.45 | Special order, ships in 7-14 days |
| 8 | 87889100 | Ferrari Mounting Bracket For Engine - 87889100 | $216.35 | Special order, ships in 7-14 days |
| 9 | 87894700 | Ferrari LH Bracket - 87894700 | $115.54 | Special order, ships in 7-14 days |
| 9 | 88593700 | Ferrari LH Bracket - 88593700 | $108.16 | Special order, ships in 7-14 days |
| 10 | 83853800 | Ferrari RH Air Con Unit Bracket - 83853800 | $46.69 | Available, ships in 3-6 days |
| 11 | 83854000 | Ferrari LH Air Con Unit Bracket - 83854000 | $46.69 | Available, ships in 3-6 days |
| 12 | 88041000 | Ferrari Driver Side Lower Air Duct B - 88041000 | $31.93 | Special order, ships in 7-14 days |
| 13 | 87886400 | Ferrari Instrument Panel Bracket - 87886400 | $61.45 | Special order, ships in 7-14 days |
| 14 | 89336100 | Ferrari Airbag Bracket - 89336100 | $108.16 | Available, ships in 3-6 days |
| 15 | 88311600 | Ferrari Glove Compartment Upper Brac - 88311600 | $110.61 | Special order, ships in 7-14 days |
| 16 | 87895800 | Ferrari RH Lateral Bracket - 87895800 | $169.62 | Special order, ships in 7-14 days |
| 17 | 979172 | Ferrari Complete Dashboard Substructure - 979172 | $1,622.78 | Special order, ships in 7-14 days |
| 18 | 811925 | Ferrari RH Underdashboard Insulation - 811925 | $194.22 | Special order, ships in 7-14 days |
| 19 | 84494200 | Ferrari LH Underdashboard Insulation LHD - 84494200 | $98.32 | Special order, ships in 7-14 days |
| 20 | 82718500 | Ferrari Firewall Bracket LHD - 82718500 | $68.83 | Special order, ships in 7-14 days |
| 21 | 88519100 | Ferrari Driver Side Vent Control Fas - 88519100 | $110.61 | Special order, ships in 7-14 days |
| 22 | 88520500 | Ferrari Lights Control Bracket - 88520500 | $565.49 | Special order, ships in 7-14 days |
| 23 | 67934100 | Ferrari Gasket - 67934100 | $2.13 | Special order, ships in 7-14 days |
| 24 | 87887800 | Ferrari Upper Dashboard Connector Br - 87887800 | $66.35 | Special order, ships in 7-14 days |
| 25 | 88593800 | Ferrari Compl. LH Lower Dashboard Br - 88593800 | $226.19 | Special order, ships in 7-14 days |
