Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- (diagram 0153)

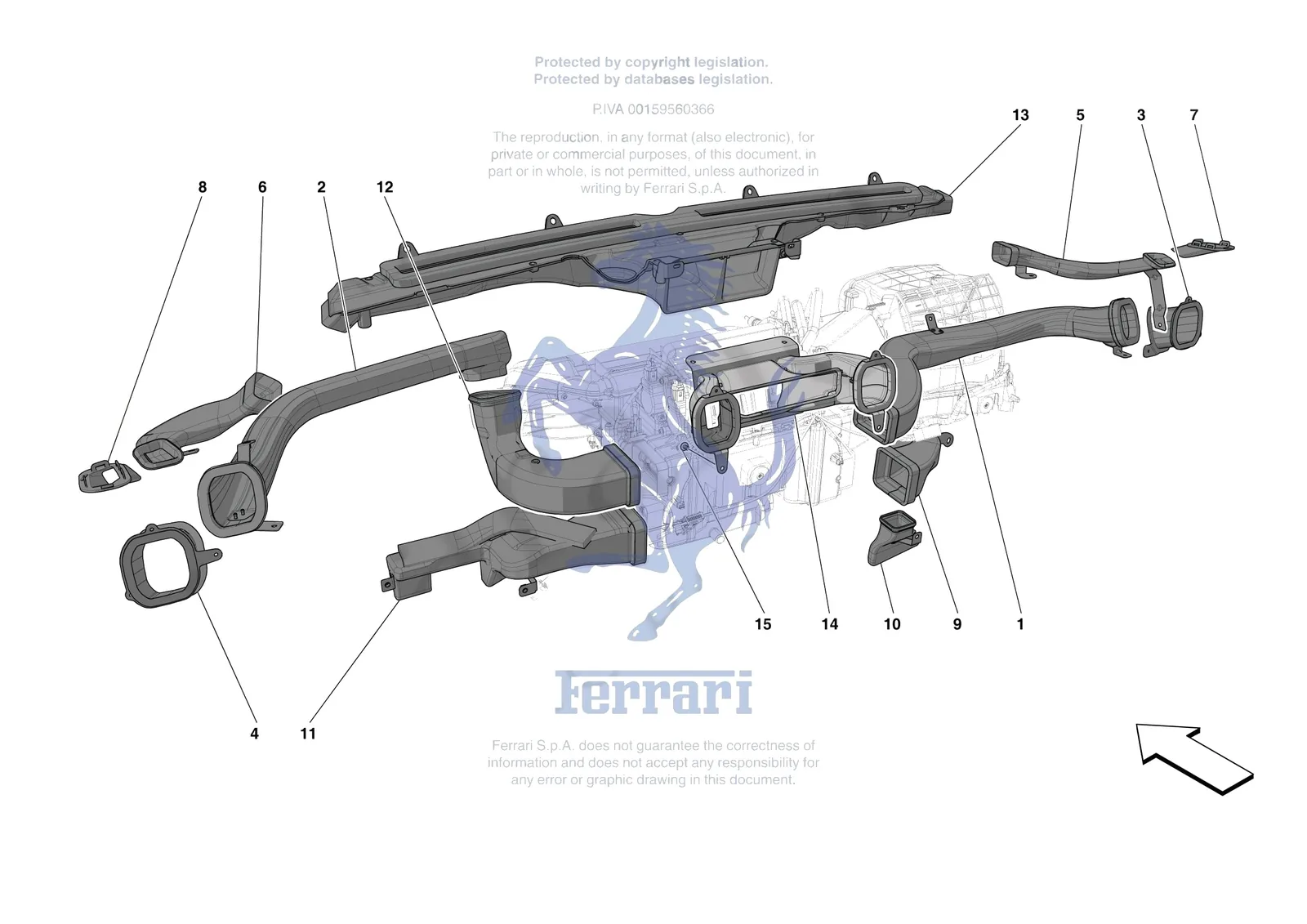

Exploded view of the [vehicle trim] - e.47.05 - dashboard - ducts -not for rhd- on the Ferrari 812 CompetizioneA, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0153.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 85106600 | Ferrari Defroster Duct LHD - 85106600 | $881.17 | Special order, ships in 7-14 days | |
| 1 | 87890900 | Ferrari RH Lateral Ac Vent Duct - 87890900 | $216.35 | Special order, ships in 7-14 days |
| 2 | 87890800 | Ferrari LH Lateral Ac Vent Duct - 87890800 | $226.19 | Special order, ships in 7-14 days |
| 3 | 88518700 | Ferrari RH Lateral Vent Connector - 88518700 | $39.31 | Special order, ships in 7-14 days |
| 4 | 88285500 | Ferrari LH Lateral Vent Connector - 88285500 | $34.40 | Special order, ships in 7-14 days |
| 5 | 88517900 | Ferrari RH Demister Air Duct - 88517900 | $213.88 | Special order, ships in 7-14 days |
| 6 | 88518000 | Ferrari LH Demister Air Duct - 88518000 | $186.84 | Special order, ships in 7-14 days |
| 7 | 88518300 | Ferrari RH Demister Surround Connect - 88518300 | $14.97 | Special order, ships in 7-14 days |
| 8 | 88518200 | Ferrari LH Demister Surround Connect - 88518200 | $14.97 | Special order, ships in 7-14 days |
| 9 | 84088300 | Ferrari Passenger Side Upper Footwell Air Duct LHD - 84088300 | $115.54 | Special order, ships in 7-14 days |
| 10 | 88390600 | Ferrari Passenger Side Lower Footwel - 88390600 | $86.04 | Special order, ships in 7-14 days |
| 11 | 87891900 | Ferrari Driver Side Footwell Air Duc - 87891900 | $295.03 | Special order, ships in 7-14 days |
| 12 | 87893300 | Ferrari Compl. LH HVAC Ventilation System Connector - 87893300 | $174.55 | Special order, ships in 7-14 days |
| 13 | 88364300 | Ferrari Defroster Duct LHD - 88364300 | $885.15 | Special order, ships in 7-14 days |
| 14 | 87896500 | Ferrari Centre Duct - 87896500 | $149.96 | Special order, ships in 7-14 days |
| 15 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
