Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.49 - INNER TRIM (ABOVE BELTLINE) (diagram 0159)

Exploded view of the [vehicle trim] - e.49 - inner trim (above beltline) on the Ferrari 812 CompetizioneA, with 60 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

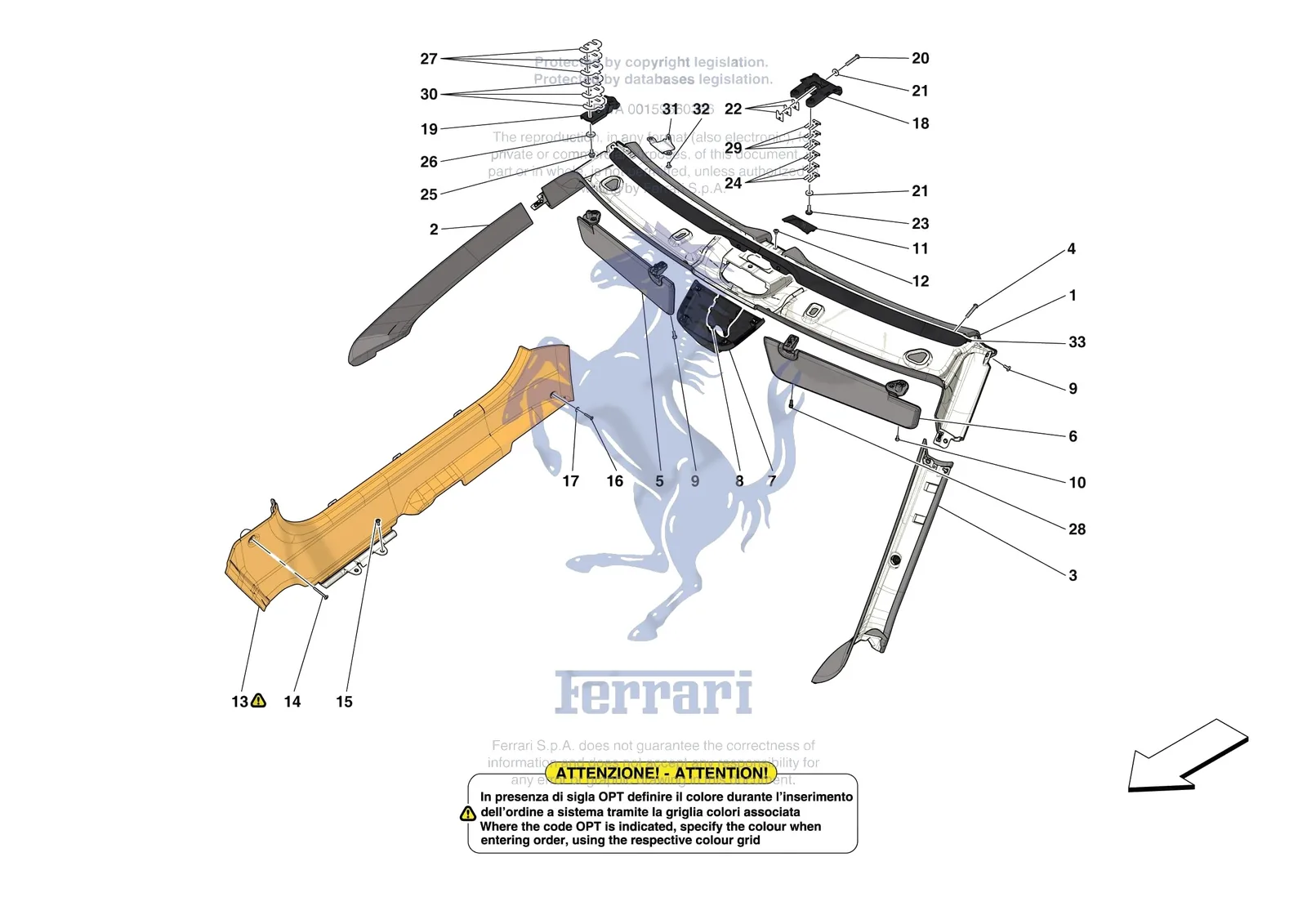

Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.49 - INNER TRIM (ABOVE BELTLINE) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
87719012Ferrari Compl. LH Sill Trim - 87719012$4,105.24Special order, ships in 7-14 days
87719112Ferrari Compl. RH Sill Trim - 87719112$4,105.24Special order, ships in 7-14 days
192623Ferrari Screw - 192623$5.40Special order, ships in 7-14 days
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
1767640Ferrari Compl. Windscreen Cross Memb - 767640$4,446.92Special order, ships in 7-14 days
1896093Ferrari COMPL. WINDSCREEN CROSS MEMBER - 896093Price on requestContact us for price and availability
2887309Ferrari Compl. RH Pillar Trim - 887309$2,678.92Special order, ships in 7-14 days
2896122Ferrari COMPL. RH PILLAR TRIM - 896122Price on requestContact us for price and availability
3887105Ferrari Compl. LH Pillar Trim - 887105$2,678.92Special order, ships in 7-14 days
3896108Ferrari Compl. LH Pillar Trim - 896108$6,111.88Special order, ships in 7-14 days
485833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
5785221Ferrari RH Sun Visor - 785221$2,060.69Special order, ships in 7-14 days
5785222Ferrari RH Sun Visor - 785222$2,060.69Special order, ships in 7-14 days
5785346Ferrari RH Sun Visor - 785346$2,271.45Special order, ships in 7-14 days
5785461Ferrari RH Sun Visor - 785461$2,271.45Special order, ships in 7-14 days
5785462Ferrari RH Sun Visor - 785462$2,060.69Special order, ships in 7-14 days
5785467Ferrari RH Sun Visor - 785467$2,060.69Special order, ships in 7-14 days
5785470Ferrari RH Sun Visor - 785470$2,060.69Special order, ships in 7-14 days
589108600Ferrari RH Sun Visor - 89108600$2,248.03Special order, ships in 7-14 days
6785345Ferrari LH Sun Visor - 785345$2,060.69Special order, ships in 7-14 days
6785466Ferrari LH Sun Visor - 785466$2,084.11Special order, ships in 7-14 days
6785469Ferrari LH Sun Visor - 785469$2,060.69Special order, ships in 7-14 days
6838280Ferrari LH Sun Visor - 838280$2,060.69Special order, ships in 7-14 days
6838282Ferrari LH Sun Visor - 838282$2,060.69Special order, ships in 7-14 days
689108500Ferrari LH Sun Visor - 89108500$1,204.80Special order, ships in 7-14 days
7767634Ferrari Compl. Mirror Cover - 767634$66.35Special order, ships in 7-14 days
8767632Ferrari Mirror Cover Plug - 767632$29.48Special order, ships in 7-14 days
9936344Ferrari Vite Tbftx T25 M5X12 Nerinox - 936344$0.82Special order, ships in 7-14 days
10826584Ferrari Screw - 826584$1.49Available, ships in 3-6 days
11822854Ferrari Centre Casting Plug - 822854$76.19Special order, ships in 7-14 days
1285691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
13742460Ferrari COMPL. LH SILL TRIM - 742460Price on requestContact us for price and availability
13742700Ferrari COMPL. LH SILL TRIM - 742700Price on requestContact us for price and availability
1387719000Ferrari Compl. LH Sill Trim - 87719000SupersededOrder 87719012 instead
1387979300Ferrari Compl. LH Sill Trim - 87979300$4,095.66Special order, ships in 7-14 days
13742503Ferrari Compl. RH Sill Trim - 742503$4,297.04Special order, ships in 7-14 days
13742678Ferrari COMPL. RH SILL TRIM - 742678Price on requestContact us for price and availability
1387719100Ferrari Compl. RH Sill Trim - 87719100SupersededOrder 87719112 instead
1387978600Ferrari Compl. RH Sill Trim - 87978600$4,095.66Special order, ships in 7-14 days
14216431Ferrari Screw M5 x 50 TBFEI - 216431$12.44Available, ships in 3-6 days
1585833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
1685834100Ferrari Screw M5 x 30 TBFTX - 85834100$0.79Special order, ships in 7-14 days
17263276Ferrari Washer - 263276$0.33Available, ships in 3-6 days
18871300Ferrari Striker Casting - 871300$934.32Special order, ships in 7-14 days
19871230Ferrari Striker Casting With LH Roof - 871230$713.04Special order, ships in 7-14 days
19871233Ferrari Striker Casting With RH Roof - 871233$713.04Special order, ships in 7-14 days
2086495500Ferrari Screw M6 x 40 Torx T30 TBTX - 86495500$0.86Available, ships in 3-6 days
2112647601Ferrari Washer - 12647601$0.13Special order, ships in 7-14 days
22793684Ferrari Adjustment Shim - 793684$18.42Special order, ships in 7-14 days
2381911600Ferrari Screw M6 x 22 - 81911600$0.98Special order, ships in 7-14 days
24793702Ferrari Adjustment Shim - 793702$29.48Special order, ships in 7-14 days
2516296934Ferrari Screw 6x14 - 16296934$0.90Special order, ships in 7-14 days
2612647701Ferrari Washer - 12647701$0.12Available, ships in 3-6 days
27748031Ferrari Shim - 748031$24.07Special order, ships in 7-14 days
2813026126Ferrari Screw TCE M5 x 18 - 13026126$2.59Available, ships in 3-6 days
29810412Ferrari Adjustment Shim - 810412$21.85Special order, ships in 7-14 days
30810411Ferrari Adjustment Shim - 810411$21.85Special order, ships in 7-14 days
31748069Ferrari Head Bracket - 748069$49.14Special order, ships in 7-14 days
3286705000Ferrari Screw M5x10 TBFTX - 86705000$1.36Special order, ships in 7-14 days
33944084Ferrari Compl. Nolder - 944084$737.61Special order, ships in 7-14 days
