Ferrari 812 CompetizioneA — [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT (diagram 0168)

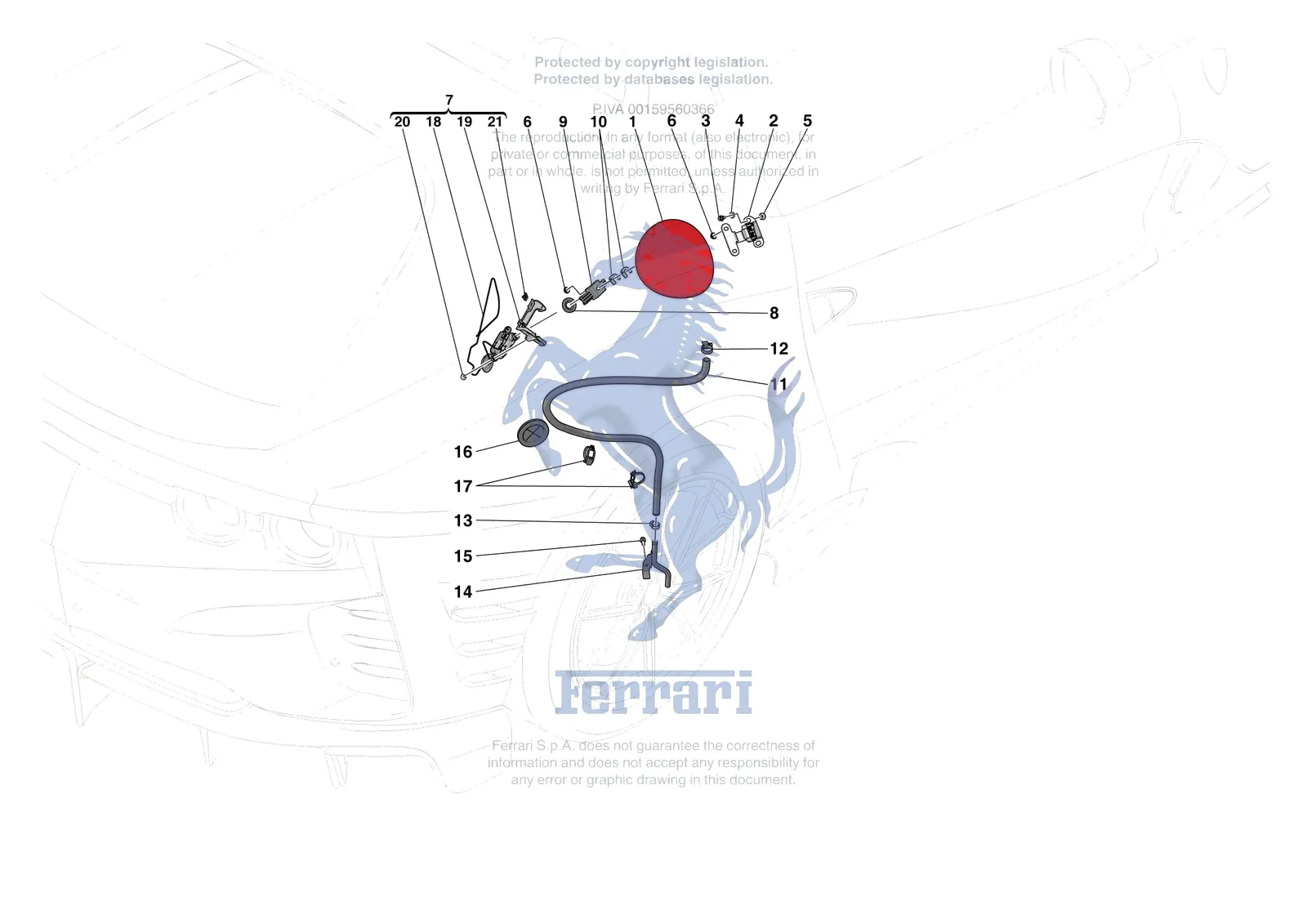

Exploded view of the [vehicle trim] - e.56 - fuel filler seat on the Ferrari 812 CompetizioneA, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0168.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10168590 | Ferrari Clip - 10168590 | Superseded | Order 13000190 instead | |
| 104879 | Ferrari Clip - 104879 | Superseded | Order 13000190 instead | |
| 12179490 | Ferrari Hose Clip - 12179490 | Superseded | Order 13000190 instead | |
| 12179690 | Ferrari Hose Clip - 12179690 | Superseded | Order 13000190 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 985800854 | Ferrari Compl. Fuel Filler Flap - 985800854 | $516.33 | Special order, ships in 7-14 days |
| 2 | 800853 | Ferrari Compl. Fuel Filler Flap Hing - 800853 | $201.59 | Special order, ships in 7-14 days |
| 3 | 11566227 | Ferrari Screw 5x14 - 11566227 | $2.59 | Special order, ships in 7-14 days |
| 4 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 5 | 14098000 | Ferrari Nut - 14098000 | $1.04 | Special order, ships in 7-14 days |
| 6 | 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days |
| 6 | 13046012 | Ferrari Nut - 13046012 | Superseded | Order 13046011 instead |
| 7 | 799387 | Ferrari Compl. Actuator Bracket - 799387 | Price on request | Contact us for price and availability |
| 8 | 89180500 | Ferrari Gasket - 89180500 | $15.28 | Special order, ships in 7-14 days |
| 9 | 799385 | Ferrari Striker For Actuator - 799385 | $23.08 | Special order, ships in 7-14 days |
| 10 | 870522 | Ferrari Shim Plate - 870522 | $20.37 | Special order, ships in 7-14 days |
| 11 | 900733 | Ferrari Drain Pipe - 900733 | $44.24 | Special order, ships in 7-14 days |
| 12 | 13000190 | Ferrari Hose Clip 10-16mm - 13000190 | $1.09 | Available, ships in 3-6 days |
| 13 | 10716470 | Ferrari Collar - 10716470 | $2.59 | Available, ships in 3-6 days |
| 14 | 892697 | Ferrari Tubo_Rigido_Drenaggio - 892697 | $122.92 | Special order, ships in 7-14 days |
| 15 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 16 | 81535200 | Ferrari Grommet With Membrane - 81535200 | $54.61 | Special order, ships in 7-14 days |
| 17 | 177553 | Ferrari Clamp - 177553 | $0.84 | Available, ships in 3-6 days |
| 18 | 88436500 | Ferrari Compl. Push-Push - 88436500 | $191.76 | Special order, ships in 7-14 days |
| 19 | 799388 | Ferrari Actuator Bracket - 799388 | $36.86 | Special order, ships in 7-14 days |
| 20 | 15538777 | Ferrari Screw 8x13 - 15538777 | $0.34 | Available, ships in 3-6 days |
| 21 | 67278400 | Ferrari BRACKET - 67278400 | $21.60 | Special order, ships in 7-14 days |
