Ferrari 812 CompetizioneA — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari 812 CompetizioneA, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

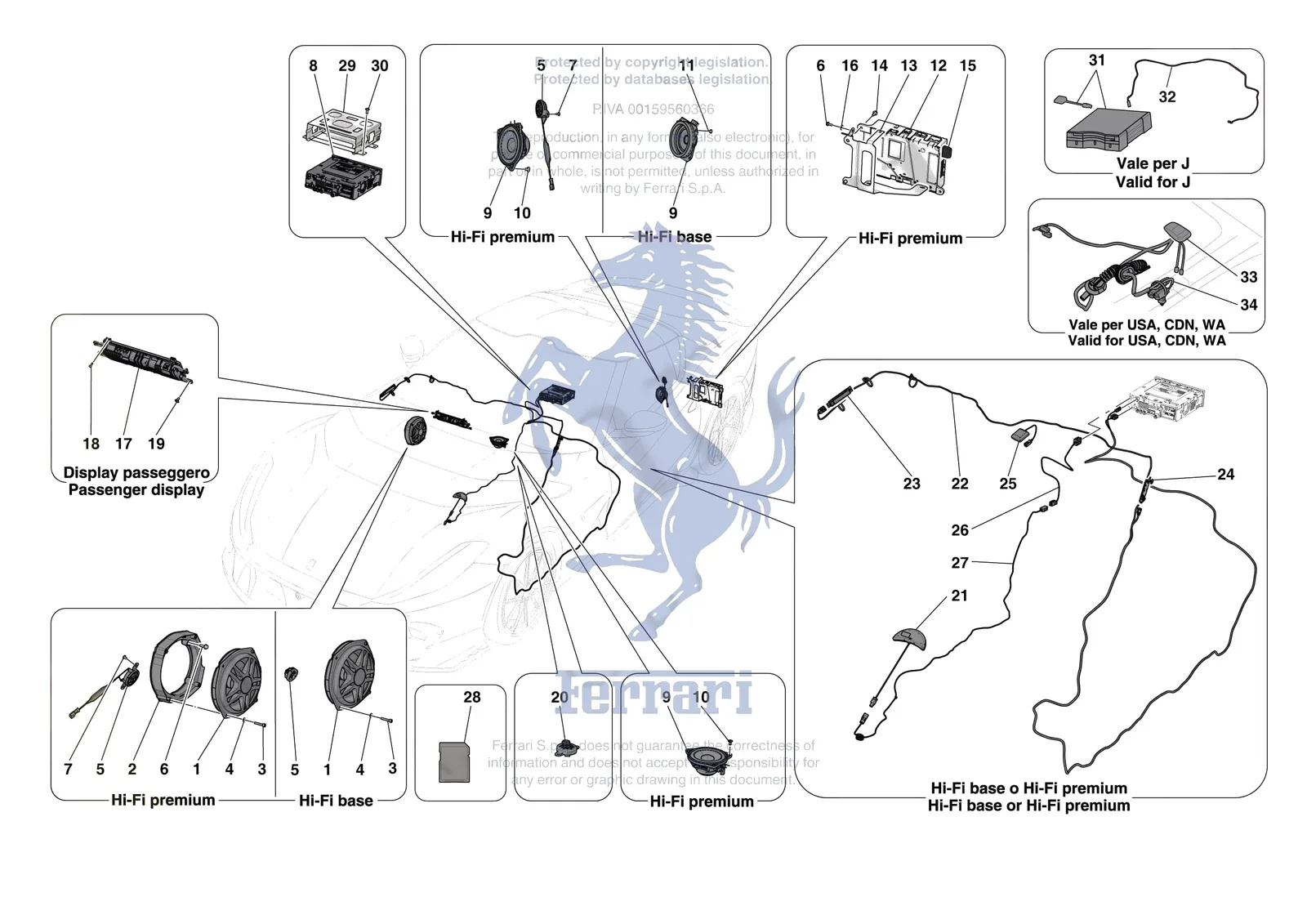

Ferrari 812 CompetizioneA [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
887994Ferrari Dsrc Kit - 887994SupersededOrder 867280 instead
242694Ferrari GPS Antenna - 242694Price on requestContact us for price and availability
331961Ferrari GPS Antenna - 331961$154.46Special order, ships in 7-14 days
931307432Ferrari Navigation System Gps Antenna - 931307432SupersededOrder 789209 instead
334587Ferrari Passenger Display - 334587SupersededOrder 343169 instead
342785Ferrari Passenger Display - 342785SupersededOrder 343169 instead
1328469Ferrari Woofer - 328469$1,289.48Special order, ships in 7-14 days
1334279Ferrari Woofer - 334279$183.56Special order, ships in 7-14 days
2260130Ferrari LH Woofer Adapter - 260130$44.24Special order, ships in 7-14 days
2260131Ferrari RH Woofer Adapter - 260131$44.24Special order, ships in 7-14 days
314304524Ferrari Screw - 14304524$0.86Available, ships in 3-6 days
412637801Ferrari Washer - 12637801$0.19Available, ships in 3-6 days
412637824Ferrari Washer - 12637824$0.13Available, ships in 3-6 days
5251541Ferrari Tweeter - 251541$56.79Special order, ships in 7-14 days
5321882Ferrari Tweeter - 321882$131.10Special order, ships in 7-14 days
616285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
716083401Ferrari Screw - 16083401$1.17Available, ships in 3-6 days
8335389Ferrari Nit - 335389$7,104.77Special order, ships in 7-14 days
8335390Ferrari Nit - 335390$9,214.68Special order, ships in 7-14 days
8335391Ferrari Nit - 335391$9,214.68Special order, ships in 7-14 days
9269772Ferrari Twiddler - 269772$109.25Special order, ships in 7-14 days
9321880Ferrari Twiddler - 321880$327.81Special order, ships in 7-14 days
1085692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
1186912700Ferrari Screw 4x6 - 86912700$0.79Special order, ships in 7-14 days
12938545Ferrari 12 Channel Amplifier - 938545$8,486.40Special order, ships in 7-14 days
13981578Ferrari Compl. Amplifier Fastener Br - 981578$78.66Special order, ships in 7-14 days
1418750321Ferrari Screw - 18750321$0.57Special order, ships in 7-14 days
15770512Ferrari Rubber Pad For Mounting Brac - 770512$17.92Special order, ships in 7-14 days
1614447078Ferrari Washer D. 5.5 - 15 x 1 - 14447078$0.54Special order, ships in 7-14 days
17343169Ferrari Passenger Display - 343169$4,102.69Special order, ships in 7-14 days
1815687204Ferrari Screw 3.5x13 - 15687204$0.90Available, ships in 3-6 days
20223469Ferrari Buzzer For Parking Sensors - 223469$103.25Special order, ships in 7-14 days
21286160Ferrari Bluetooth Antenna - 286160$961.65Special order, ships in 7-14 days
22904252Ferrari Radio Antenna Cable - 904252$565.49Special order, ships in 7-14 days
22905746Ferrari Radio Antenna Cable - 905746$442.56Special order, ships in 7-14 days
22905748Ferrari Radio Antenna Cable - 905748$565.49Special order, ships in 7-14 days
22905750Ferrari Radio Antenna Cable - 905750$442.56Special order, ships in 7-14 days
23771350Ferrari Fm2/Dab Amplifier - 771350$344.21Special order, ships in 7-14 days
23771351Ferrari FM2/DAB Amplifier - 771351$226.19Special order, ships in 7-14 days
23771352Ferrari Fm2/Dab Amplifier - 771352$270.44Special order, ships in 7-14 days
24331962Ferrari Am/Fm Amplifier - 331962$189.31Special order, ships in 7-14 days
24771349Ferrari Am/Fm Amplifier - 771349$240.94Special order, ships in 7-14 days
25789209Ferrari GPS Antenna - 789209$155.15Special order, ships in 7-14 days
26756965Ferrari Bt-Nit Antenna Cable - 756965$86.04Special order, ships in 7-14 days
27329938Ferrari Wi-Fi Antenna Extension - 329938$95.87Special order, ships in 7-14 days
29849296Ferrari Nit Bracket - 849296$186.84Special order, ships in 7-14 days
3085833800Ferrari Screw M5 x 14 TBFTX - 85833800$0.90Available, ships in 3-6 days
31867280Ferrari Dsrc Kit - 867280$4,362.61Special order, ships in 7-14 days
32958944Ferrari DSRC/Hub Cable 812GTS - 958944$983.50Special order, ships in 7-14 days
33326887Ferrari SDARS/GNSS COMBO ANTENNA - 326887Price on requestContact us for price and availability
34915859Ferrari Sdars Antenna Cable - 915859$233.56Special order, ships in 7-14 days
