Ferrari 812 GTS — SERVO BRAKE SYSTEM (diagram 0026)

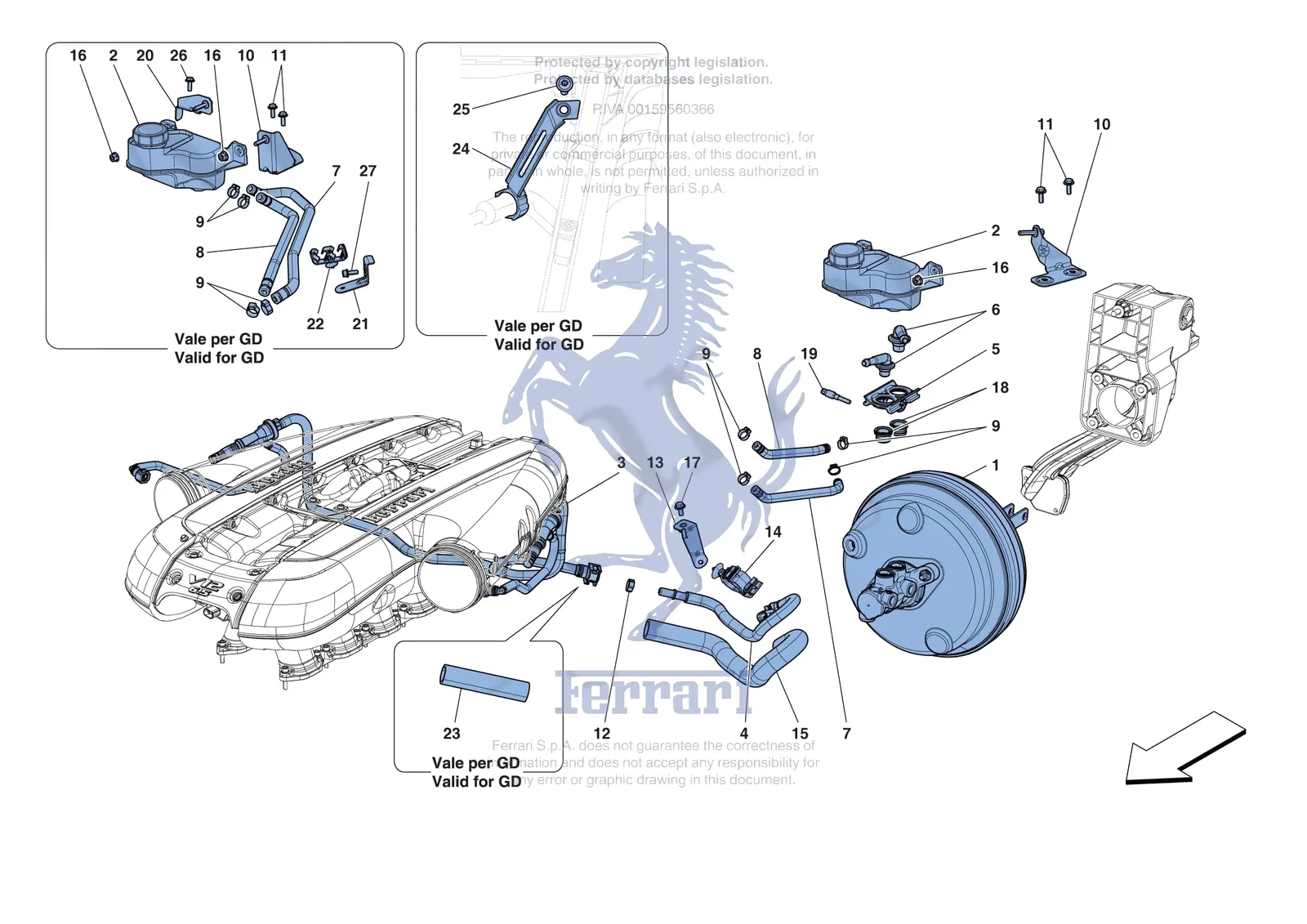

Exploded view of the servo brake system on the Ferrari 812 GTS, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 340035 | Ferrari Heat Shield For Kaiser Pipe - 340035 | $440.56 | Special order, ships in 7-14 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 1 | 261826 | Ferrari Brake Servo - 261826 | $896.08 | Available, ships in 3-6 days |
| 2 | 259047 | Ferrari 458/488/812/F12 Brake Fluid Reservoir - 259047 | $67.78 | In stock |
| 2 | 956155 | Ferrari Brake Fluid Reservoir - 956155 | $86.04 | Special order, ships in 7-14 days |
| 3 | 335473 | Ferrari Kaiser Pipe Compl. With Valv - 335473 | $811.38 | Special order, ships in 7-14 days |
| 3 | 340057 | Ferrari Kaiser Pipe Compl. With Valv - 340057 | $811.38 | Special order, ships in 7-14 days |
| 3 | 991203 | Ferrari Kaiser Pipe Compl. With Valv - 991203 | $762.20 | Special order, ships in 7-14 days |
| 4 | 339549 | Ferrari Pipe From Disconnecter Union - 339549 | Superseded | Order 993910 instead |
| 4 | 340024 | Ferrari Pipe From Disconnecter Union - 340024 | $467.15 | Special order, ships in 7-14 days |
| 4 | 993910 | Ferrari Pipe From Disconnecter Union - 993910 | $467.15 | Special order, ships in 7-14 days |
| 5 | 248081 | Ferrari Elbow Union Retainer Plate - 248081 | $66.35 | Special order, ships in 7-14 days |
| 6 | 237586 | Ferrari Elbow Union For Brake Master Cylinder - 237586 | $13.74 | Special order, ships in 7-14 days |
| 7 | 337168 | Ferrari Rubber Pipe From Tank - 337168 | $44.24 | Special order, ships in 7-14 days |
| 7 | 287873 | Ferrari Rubber Pipe From Tank RHD - 287873 | $127.82 | Special order, ships in 7-14 days |
| 8 | 337169 | Ferrari Rubber Pipe From Tank - 337169 | $41.76 | Special order, ships in 7-14 days |
| 8 | 287874 | Ferrari Rubber Pipe From Tank RHD - 287874 | $120.46 | Special order, ships in 7-14 days |
| 9 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 10 | 333937 | Ferrari Brake Fluid Reservoir Bracke - 333937 | $56.52 | Special order, ships in 7-14 days |
| 10 | 289128 | Ferrari Brake Fluid Reservoir Bracket RHD - 289128 | $88.49 | Special order, ships in 7-14 days |
| 11 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 12 | 13434670 | Ferrari Screw Collar D16.2mm - 13434670 | $1.44 | Available, ships in 3-6 days |
| 13 | 325139 | Ferrari Vacuum Pipe Mounting Bracket - 325139 | $23.82 | Special order, ships in 7-14 days |
| 14 | 315352 | Ferrari Clip - 315352 | $2.59 | Special order, ships in 7-14 days |
| 15 | 334923 | Ferrari Heat Shield For Kaiser Pipe - 334923 | $467.15 | Special order, ships in 7-14 days |
| 15 | 813187 | Ferrari Heat Shield For Kaiser Pipe - 813187 | $467.15 | Special order, ships in 7-14 days |
| 16 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
| 17 | 11625621 | Ferrari Screw - 11625621 | $1.11 | Available, ships in 3-6 days |
| 18 | 241550 | Ferrari Master Cylinder Seal - 241550 | $1.17 | Available, ships in 3-6 days |
| 19 | 241537 | Ferrari Screw - 241537 | $0.92 | Special order, ships in 7-14 days |
| 20 | 289129 | Ferrari Brake Fluid Reservoir Internal Bracket - 289129 | $78.66 | Special order, ships in 7-14 days |
| 21 | 297474 | Ferrari Bracket - 297474 | $31.93 | Special order, ships in 7-14 days |
| 22 | 272185 | Ferrari Clip - 272185 | $3.26 | Special order, ships in 7-14 days |
| 23 | 813219 | Ferrari Heat Shield - 813219 | $71.28 | Special order, ships in 7-14 days |
| 24 | 792292 | Ferrari Brake Servo Bracket - 792292 | $71.28 | Special order, ships in 7-14 days |
| 25 | 85478900 | Ferrari SCREW - 85478900 | $2.13 | Available, ships in 3-6 days |
| 27 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
