Ferrari 812 Superfast — Bodyshell - External Trim (diagram 100)

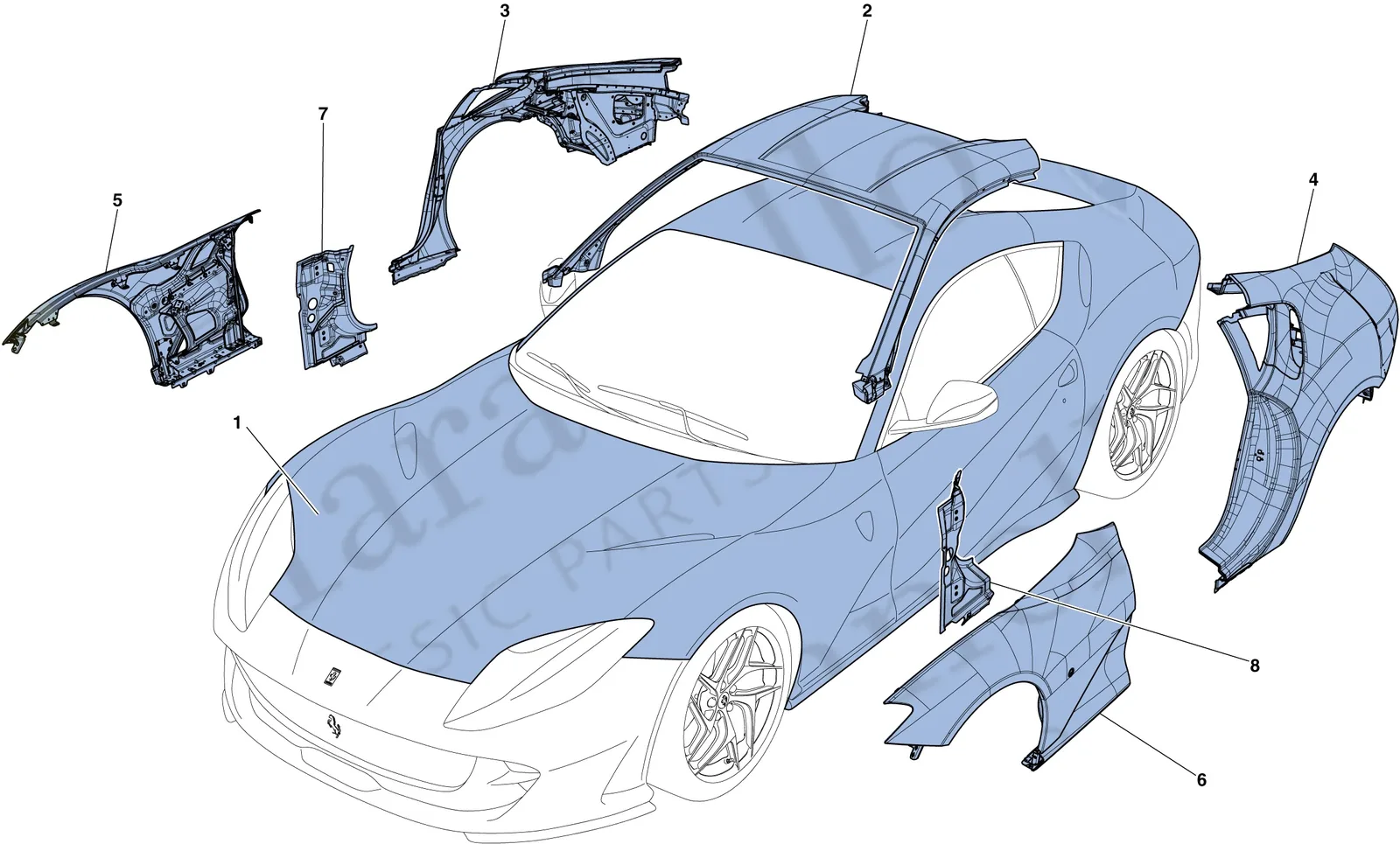

Exploded view of the bodyshell - external trim on the Ferrari 812 Superfast, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 2 | 88150411 | Ferrari Compl. Outer Roof Skin - 88150411 | $10,413.51 | Contact us to order |
| 2 | 88721811 | Ferrari Compl. Outer Roof Skin - 88721811 | $10,516.07 | Contact us to order |
| 3 | 88174211 | Ferrari Compl. Rear RH Flank - 88174211 | $20,878.77 | Contact us to order |
| 3 | 985813585 | Ferrari Compl. Rear RH Flank - 985813585 | $20,878.77 | Contact us to order |
| 4 | 88170411 | Ferrari Compl. Rear LH Flank - 88170411 | $19,723.28 | Contact us to order |
| 5 | 88189611 | Ferrari Compl. RH Front Fender - 88189611 | $8,911.04 | Contact us to order |
| 5 | 88188911 | Ferrari Compl. RH Front Fender - 88188911 | $9,125.43 | Contact us to order |
| 6 | 88184111 | Ferrari Compl. LH Front Fender - 88184111 | $8,911.04 | Contact us to order |
| 6 | 88191011 | Ferrari Compl. LH Front Fender - 88191011 | $9,125.43 | Contact us to order |
| 7 | 88296311 | Ferrari RH Lower Pillar External Tri - 88296311 | $1,106.43 | Special order, ships in 7-14 days |
| 8 | 88296111 | Ferrari LH Lower Pillar External Tri - 88296111 | $1,106.43 | Special order, ships in 7-14 days |
