Ferrari 812 Superfast — Chassis Completion (diagram 105)

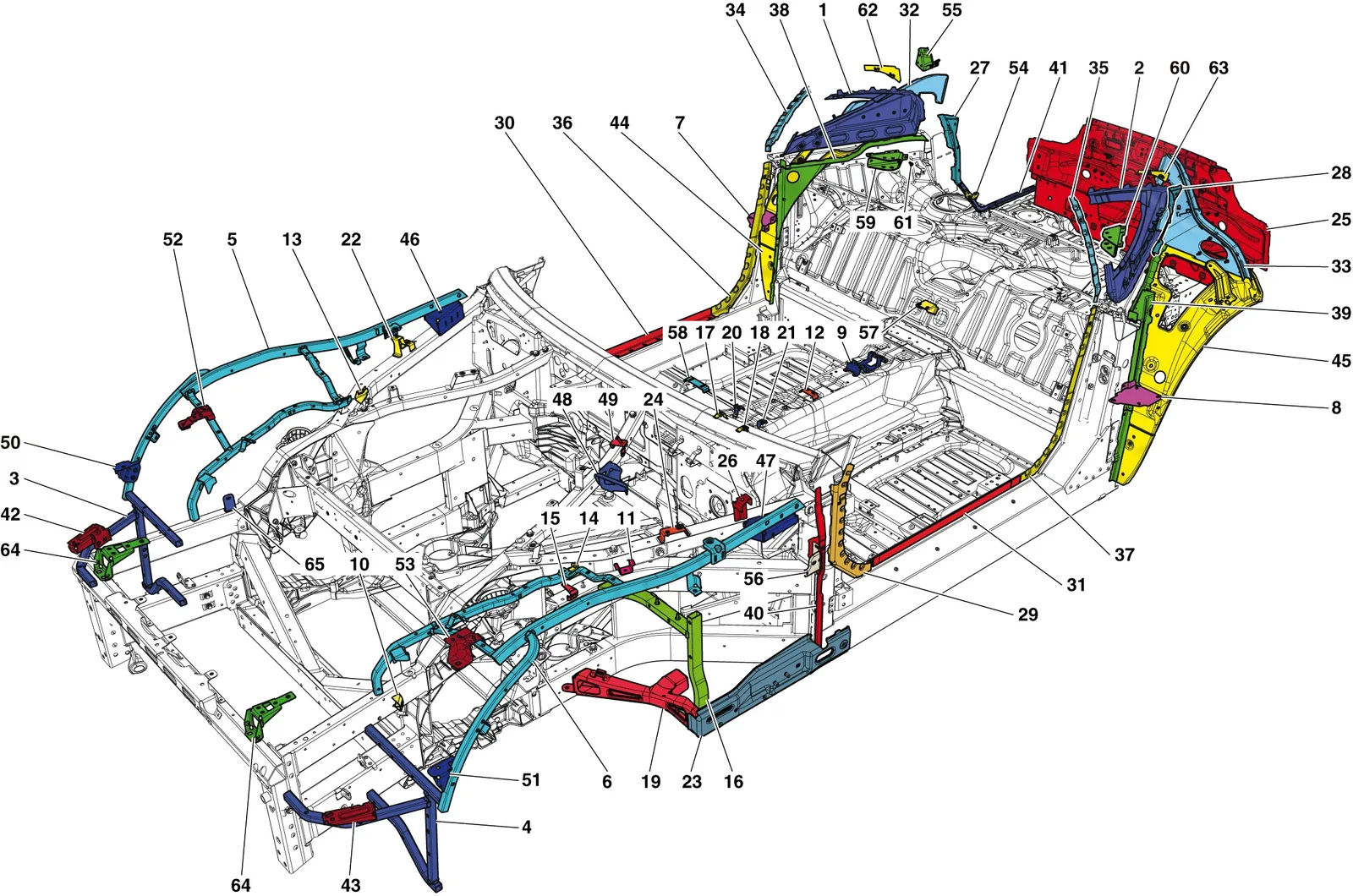

Exploded view of the chassis completion on the Ferrari 812 Superfast, with 106 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 812 Superfast Chassis Completion exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
188162100Ferrari RH Lateral Substructure - 88162100$440.56Special order, ships in 7-14 days
288162000Ferrari LH Lateral Substructure - 88162000$440.56Special order, ships in 7-14 days
388179100Ferrari RH Front Subframe - 88179100SupersededOrder 88179111 instead
488179000Ferrari LH Front Subframe - 88179000SupersededOrder 88179011 instead
588181500Ferrari Front RH Fender Trellis - 88181500SupersededOrder 88181511 instead
688181400Ferrari Front LH Fender Trellis - 88181400SupersededOrder 88181411 instead
7750987Ferrari RH WheeLHouse Partition - 750987$120.46Special order, ships in 7-14 days
8747816Ferrari LH WheeLHouse Partition - 747816$120.46Special order, ships in 7-14 days
9331125Ferrari Rear Fastener Bracket For Re - 331125$110.61Special order, ships in 7-14 days
10271344Ferrari Front Wheel Bay Shield Fastener Bracket - 271344$18.90Special order, ships in 7-14 days
11279847Ferrari Secondary Air System Pipe Fastener Bracket - 279847$216.35Special order, ships in 7-14 days
12286417Ferrari Front Bracket For Front Fastener - 286417$21.60Special order, ships in 7-14 days
1388187800Ferrari Mounting For Internal RH Fro - 88187800$66.35Special order, ships in 7-14 days
1488187700Ferrari Mounting For Internal LH Fro - 88187700$66.35Special order, ships in 7-14 days
15271348Ferrari RH Rear Wheel Bay Shield Fastener Bracket - 271348$23.82Special order, ships in 7-14 days
15271346Ferrari LH Rear Wheel Bay Shield Fastener Bracket - 271346$23.82Special order, ships in 7-14 days
1688188400Ferrari LH Trellis Pillar - 88188400$565.49Special order, ships in 7-14 days
1688994900Ferrari LH Trellis Pillar - 88994900$590.08Special order, ships in 7-14 days
1688188500Ferrari RH Trellis Pillar - 88188500$565.49Special order, ships in 7-14 days
1688995000Ferrari RH Trellis Pillar - 88995000$565.49Special order, ships in 7-14 days
17331140Ferrari RH Fastener Bracket For Fron - 331140$110.61Special order, ships in 7-14 days
18331139Ferrari LH Fastener Bracket For Fron - 331139$110.61Special order, ships in 7-14 days
1984915900Ferrari LH Rear Trellis Cross-Member - 84915900$154.89Special order, ships in 7-14 days
1983783200Ferrari RH Rear Trellis Cross-Member - 83783200SupersededOrder 83783211 instead
20286420Ferrari RH Bracket For Front Fastener - 286420$6.61Special order, ships in 7-14 days
21286419Ferrari LH Bracket For Front Fastener - 286419$8.82Special order, ships in 7-14 days
22334393Ferrari Fastener Bracket For RH Engi - 334393$295.03Special order, ships in 7-14 days
2383034000Ferrari Lower Fastener Beam For LH Fender - 83034000$344.21Special order, ships in 7-14 days
2383033900Ferrari Lower Fastener Beam For RH Fender - 83033900$368.79Special order, ships in 7-14 days
24330907Ferrari LH Engine Cover Bracket - 330907Price on requestContact us for price and availability
2588153400Ferrari Compl. Back Panel - 88153400$1,395.20Special order, ships in 7-14 days
2588717500Ferrari Compl. Back Panel - 88717500$1,419.67Special order, ships in 7-14 days
2688242700Ferrari LH Windscreen Wiper Fastener - 88242700$66.35Special order, ships in 7-14 days
2688717700Ferrari Compl. Windscreen Wiper Moun - 88717700$66.35Special order, ships in 7-14 days
2784220300Ferrari Rear ELement Of RH Lateral Substructure - 84220300SupersededOrder 84220311 instead
2885077600Ferrari Rear ELement Of LH Lateral Substructure - 85077600SupersededOrder 85077611 instead
2984281000Ferrari Profile Linking LH Pillar With Flank - 84281000Price on requestContact us for price and availability
2984280900Ferrari Profile Linking RH Pillar With Flank - 84280900SupersededOrder 84280911 instead
3083861400Ferrari RH Lower Door Seal Profile - 83861400$83.57Special order, ships in 7-14 days
3183861500Ferrari LH Lower Door Seal Profile - 83861500$83.57Special order, ships in 7-14 days
3288163100Ferrari RH External Lateral Shield - 88163100$367.14Special order, ships in 7-14 days
3388163000Ferrari LH External Lateral Shield - 88163000$514.01Special order, ships in 7-14 days
3484221900Ferrari RH Upper Pillar Connector Profile - 84221900$56.52Special order, ships in 7-14 days
3584222000Ferrari LH Upper Pillar Connector Profile - 84222000$56.52Special order, ships in 7-14 days
3684221700Ferrari RH Profile Linking Pillar With Flank - 84221700SupersededOrder 84221711 instead
3784221800Ferrari LH Profile Linking Pillar With Flank - 84221800SupersededOrder 84221811 instead
3888162500Ferrari RH Front Flank Substructure - 88162500$270.44Special order, ships in 7-14 days
3988162400Ferrari LH Front Flank Substructure - 88162400$270.44Special order, ships in 7-14 days
4088504400Ferrari RH Outer Pillar Connector Profile - 88504400$167.17Special order, ships in 7-14 days
4088504300Ferrari LH Outer Pillar Connector Profile - 88504300$167.17Special order, ships in 7-14 days
4184634800Ferrari RH Lower Lateral Structure - 84634800$142.58Special order, ships in 7-14 days
4184634900Ferrari LH Lower Lateral Structure - 84634900$142.58Special order, ships in 7-14 days
4288193000Ferrari Outer RH Lateral Headlight F - 88193000Price on requestContact us for price and availability
4388176900Ferrari Outer Lateral Fastener Brack - 88176900$98.32Special order, ships in 7-14 days
4488161400Ferrari RH Rear WheeLHouse - 88161400$685.34Special order, ships in 7-14 days
4588161300Ferrari LH Rear WheeLHouse - 88161300$685.34Special order, ships in 7-14 days
4688771400Ferrari RH Lid Bracket Mounting Brac - 88771400$78.66Special order, ships in 7-14 days
4788771300Ferrari LH Lid Bracket Mounting Brac - 88771300$78.66Special order, ships in 7-14 days
4888939700Ferrari Windscreen Wiper And Brake Fluid Reservoir Bracket LHD - 88939700$142.58Special order, ships in 7-14 days
4885538000Ferrari Windscreen Wiper And Brake Fluid Reservoir Bracket RHD - 85538000$51.62Special order, ships in 7-14 days
49277276Ferrari Rear Windscreen Wiper Mounting Bracket LHD - 277276$56.52Special order, ships in 7-14 days
4984859600Ferrari Rear Windscreen Wiper Mounting Bracket RHD - 84859600$56.52Special order, ships in 7-14 days
5088177500Ferrari RH Headlight Internal Bracke - 88177500Price on requestContact us for price and availability
5188177400Ferrari LH Headlight Internal Bracke - 88177400$88.49Available, ships in 3-6 days
5288185000Ferrari RH Fender And Headlight Fast - 88185000$147.51Special order, ships in 7-14 days
5388184900Ferrari LH Fender And Headlight Fast - 88184900$147.51Special order, ships in 7-14 days
54287660Ferrari LH Hook Fastener Bracket - 287660$216.35Special order, ships in 7-14 days
54287670Ferrari RH Hook Fastener Bracket - 287670$216.35Special order, ships in 7-14 days
5584865100Ferrari Filler Neck Reinforcement Fa - 84865100$44.03Special order, ships in 7-14 days
5688504600Ferrari RH Door Fender Side Fastener - 88504600$73.73Special order, ships in 7-14 days
5688504500Ferrari LH Door Fender Side Fastener - 88504500$73.73Special order, ships in 7-14 days
57331149Ferrari Rear Unit Mounting Bracket - 331149$762.20Special order, ships in 7-14 days
58331143Ferrari Magneride Connector Bracket - 331143$110.61Special order, ships in 7-14 days
5987665200Ferrari RH Fastener Bracket For 4-Point Seat Harness Cross Piece - 87665200$95.87Special order, ships in 7-14 days
6087665000Ferrari LH Fastener Bracket For 4-Point Seat Harness Cross Piece - 87665000$95.87Special order, ships in 7-14 days
6114639791Ferrari Rivet D. 6.4X 14.1 - 14639791$2.59Special order, ships in 7-14 days
62747871Ferrari RH Rear Roof Beam Partition - 747871$66.07Special order, ships in 7-14 days
63747869Ferrari LH Rear Roof Beam Partition - 747869$66.07Special order, ships in 7-14 days
6488186900Ferrari Compl. LH Trim Panel Front Fastener Bracket - 88186900$98.32Special order, ships in 7-14 days
65337561Ferrari Injection Connector Fastener - 337561$31.93Special order, ships in 7-14 days
88181411Ferrari Front LH Fender Trellis - 88181411$2,177.79Special order, ships in 7-14 days
88181511Ferrari Front RH Fender Trellis - 88181511$2,177.79Special order, ships in 7-14 days
88179011Ferrari LH Front Subframe - 88179011$1,204.80Special order, ships in 7-14 days
816898Ferrari LH Headlight Internal Bracket - 816898SupersededOrder 88177400 instead
83861511Ferrari LH Lower Door Seal Profile - 83861511$811.38Special order, ships in 7-14 days
84280800Ferrari LH Outer Pillar Connector Profile - 84280800$166.42Special order, ships in 7-14 days
84221811Ferrari LH Profile Linking Pillar With Flank - 84221811$86.04Special order, ships in 7-14 days
84915911Ferrari LH Rear Trellis Cross-Member - 84915911$442.56Special order, ships in 7-14 days
985805785Ferrari LH Rear Trellis Cross-Member - 985805785$442.56Special order, ships in 7-14 days
88188411Ferrari LH Trellis Pillar - 88188411$786.79Special order, ships in 7-14 days
83034011Ferrari Lower Fastener Beam For LH Fender - 83034011$590.08Special order, ships in 7-14 days
83033911Ferrari Lower Fastener Beam For RH Fender - 83033911$590.08Special order, ships in 7-14 days
816891Ferrari Outer Lateral Fastener Brack - 816891$95.87Special order, ships in 7-14 days
84281011Ferrari Profile Linking LH Pillar With Flank - 84281011Price on requestContact us for price and availability
84280911Ferrari Profile Linking RH Pillar With Flank - 84280911$73.73Special order, ships in 7-14 days
85077611Ferrari Rear ELement Of LH Lateral Substructure - 85077611$68.83Special order, ships in 7-14 days
84220311Ferrari Rear ELement Of RH Lateral Substructure - 84220311$68.83Special order, ships in 7-14 days
88179111Ferrari RH Front Subframe - 88179111$1,204.80Special order, ships in 7-14 days
816894Ferrari RH Headlight Internal Bracket - 816894$95.87Special order, ships in 7-14 days
816896Ferrari RH Headlight Internal Bracket - 816896SupersededOrder 88177400 instead
83861411Ferrari RH Lower Door Seal Profile - 83861411$811.38Special order, ships in 7-14 days
84280700Ferrari RH Outer Pillar Connector Profile - 84280700SupersededOrder 88504400 instead
84221711Ferrari RH Profile Linking Pillar With Flank - 84221711$86.04Special order, ships in 7-14 days
83783211Ferrari RH Rear Trellis Cross-Member - 83783211$737.61Special order, ships in 7-14 days
88188511Ferrari RH Trellis Pillar - 88188511$786.79Special order, ships in 7-14 days
84859400Ferrari Windscreen Wiper And Brake Fluid Reservoir Bracket RHD - 84859400$51.37Special order, ships in 7-14 days
