Ferrari California — Vapour Oil Recovery System (diagram 018)

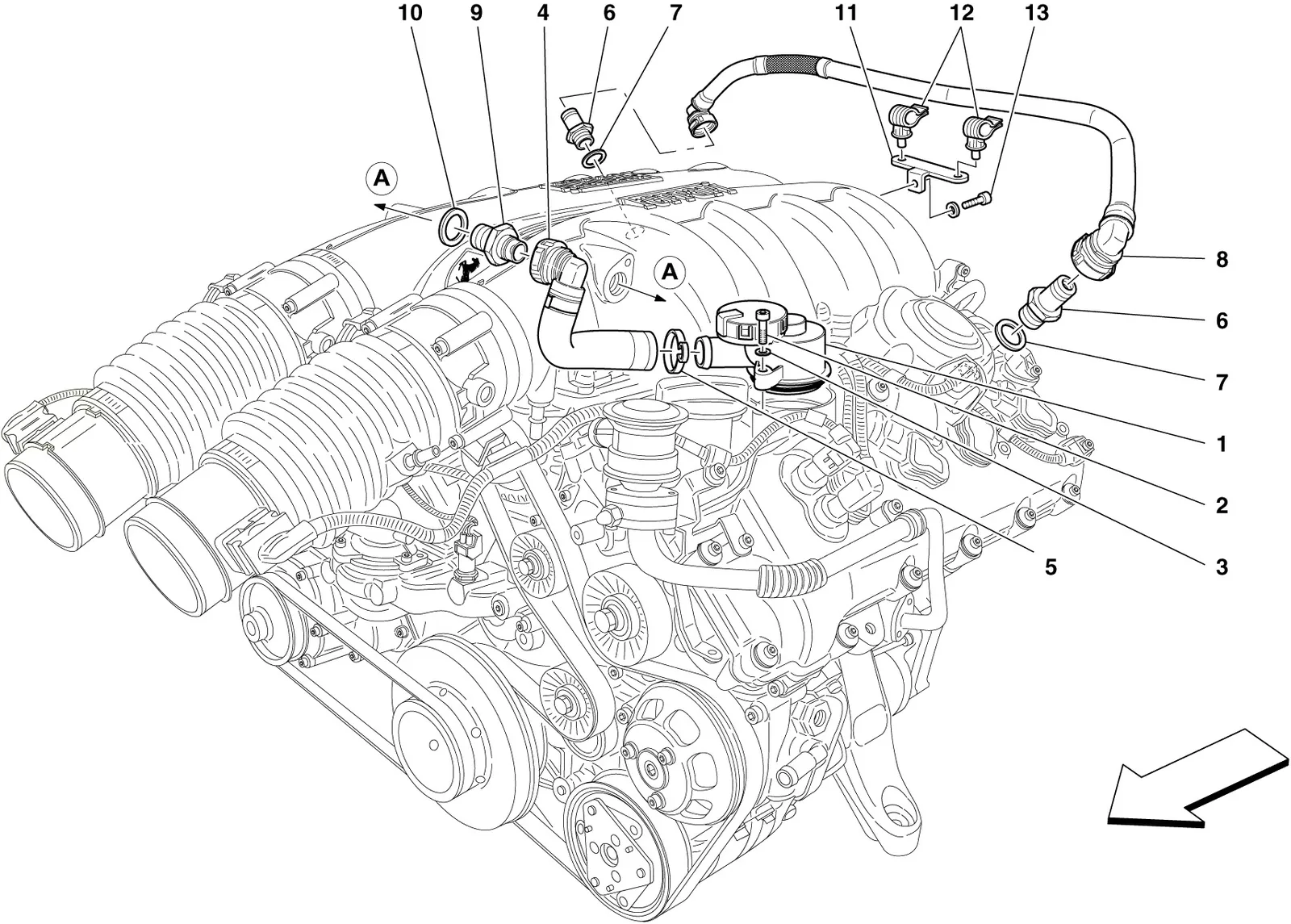

Exploded view of the vapour oil recovery system on the Ferrari California, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 219111 | Ferrari/Maserati Oil Vapor Separator - 219111 | $545.61 | In stock |
| 2 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 3 | 12644424 | Ferrari Washer 6.15-15 x 1 - 12644424 | $0.12 | Available, ships in 3-6 days |
| 4 | 241010 | Ferrari LH Pipe - 241010 | $73.41 | Special order, ships in 7-14 days |
| 5 | 224271 | Ferrari Clip D.29.9-3 - 224271 | $3.03 | Available, ships in 3-6 days |
| 6 | 229987 | Ferrari Threaded Union M22x1.5 - 229987 | $23.90 | Available, ships in 3-6 days |
| 7 | 10263460 | Ferrari/Maserati Copper Washer - 10263460 | $1.93 | In stock |
| 8 | 246269 | Ferrari Head Connecting Vent Pipe - 246269 | $100.34 | Special order, ships in 7-14 days |
| 8 | 252690 | Ferrari Head Connecting Vent Pipe - 252690 | Price on request | Contact us for price and availability |
| 8 | 286901 | Ferrari Head Connecting Vent Pipe - 286901 | $293.71 | Special order, ships in 7-14 days |
| 9 | 240893 | Ferrari Threaded Union - 240893 | $179.48 | Special order, ships in 7-14 days |
| 11 | 240895 | Ferrari Bracket - 240895 | Price on request | Contact us for price and availability |
| 12 | 222072 | Ferrari Clip D.18 - 222072 | $6.75 | Available, ships in 3-6 days |
| 13 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead |
